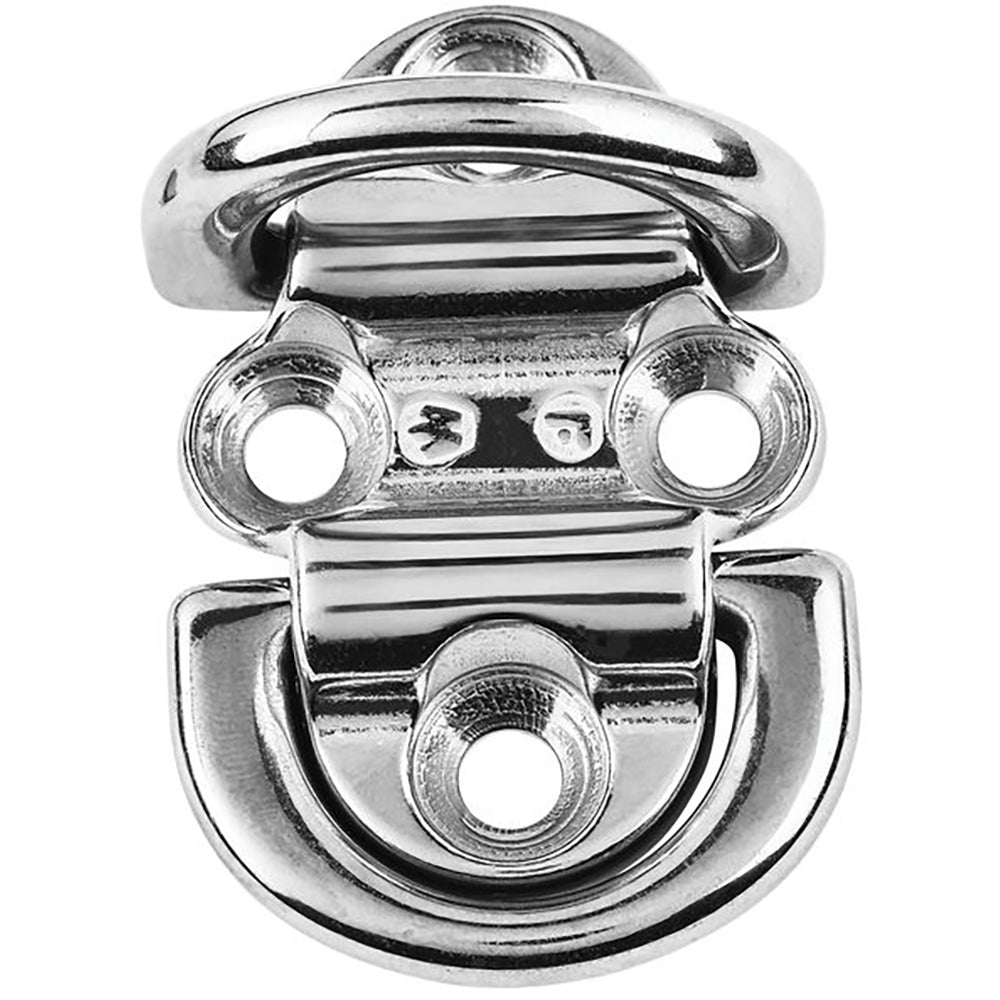

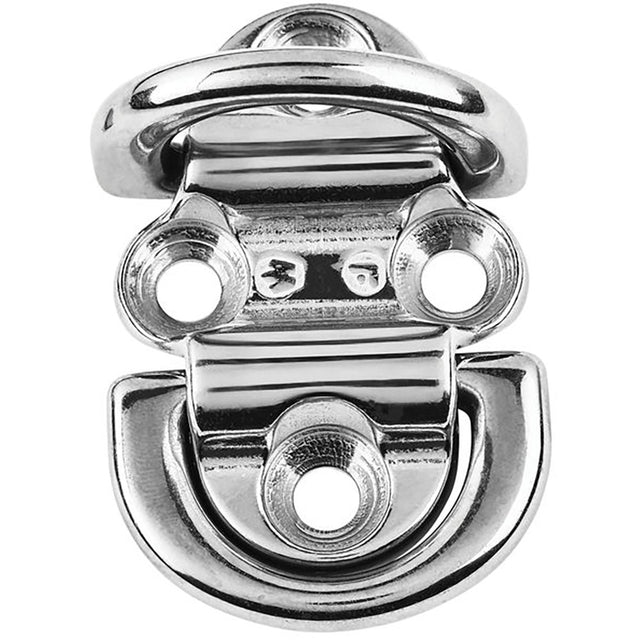

Double Folding Pad Eye - 6mm Diameter - 15/64"
Features:
- Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
- Perfect solution attachment (stay, blocks, jib tack point)
- Possibility to attach several stays
- Modern and optimized design to suit the aesthetics of modern boats
- They can be folded down to minimize the risk of injuries
- The silicon pad eliminates noise and unpleasant vibrations
Applications:
- For any fastening/attachment application
- Allows to attach several shrouds
Specifications
Specifications
Identification
| MPN | 6564W |
|---|---|
| Barcode | 768536027259 |

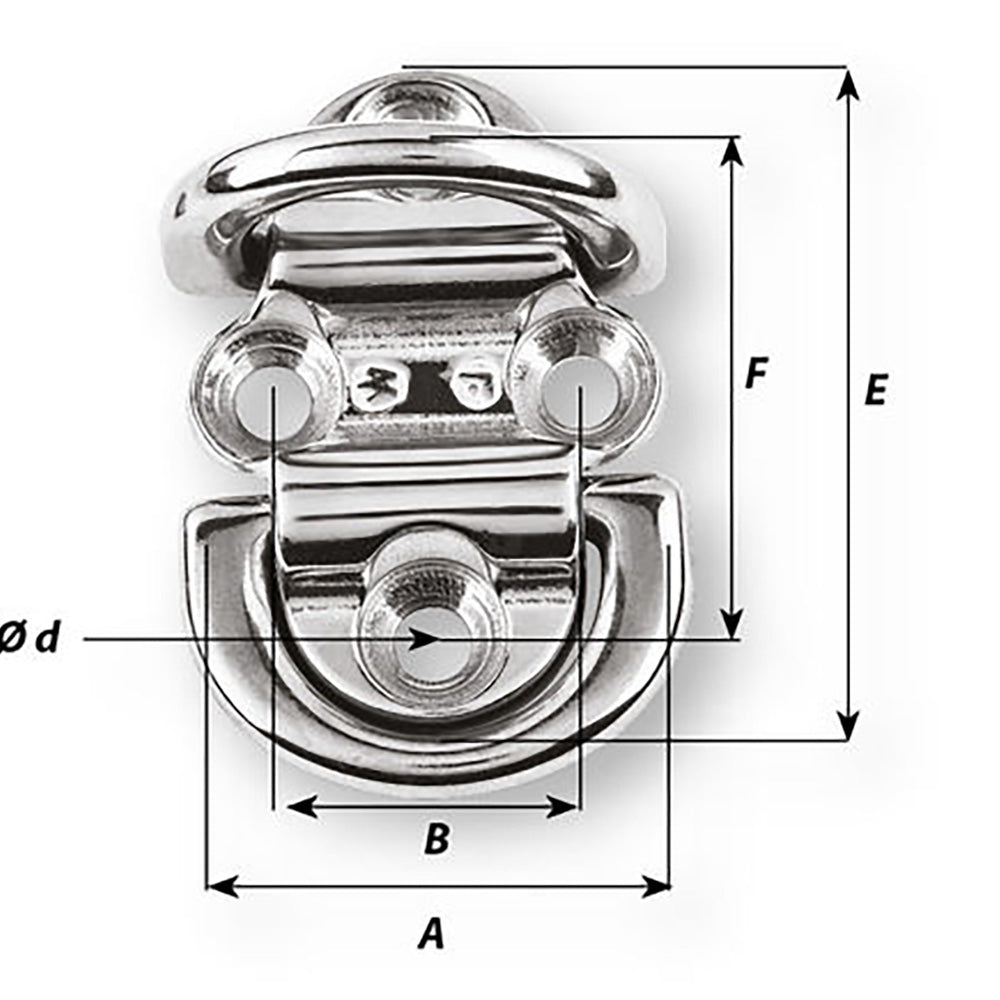

Dimensions:
| A | (inch) 1 49/64" / (mm) 45 |
|---|---|
| B | (inch) 1 1/16" / (mm) 27 |
| C | (inch) 35/64" / (mm) 14 |
| d diameter | (inch) 1/4" / (mm) 6.4 |
| D diameter | (inch) 15/64" / (mm) 6 |
| E | (inch) 2 61/64" / (mm) 75 |
| F | (inch) 2 21/64" / mm) 59 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
