Description
Description

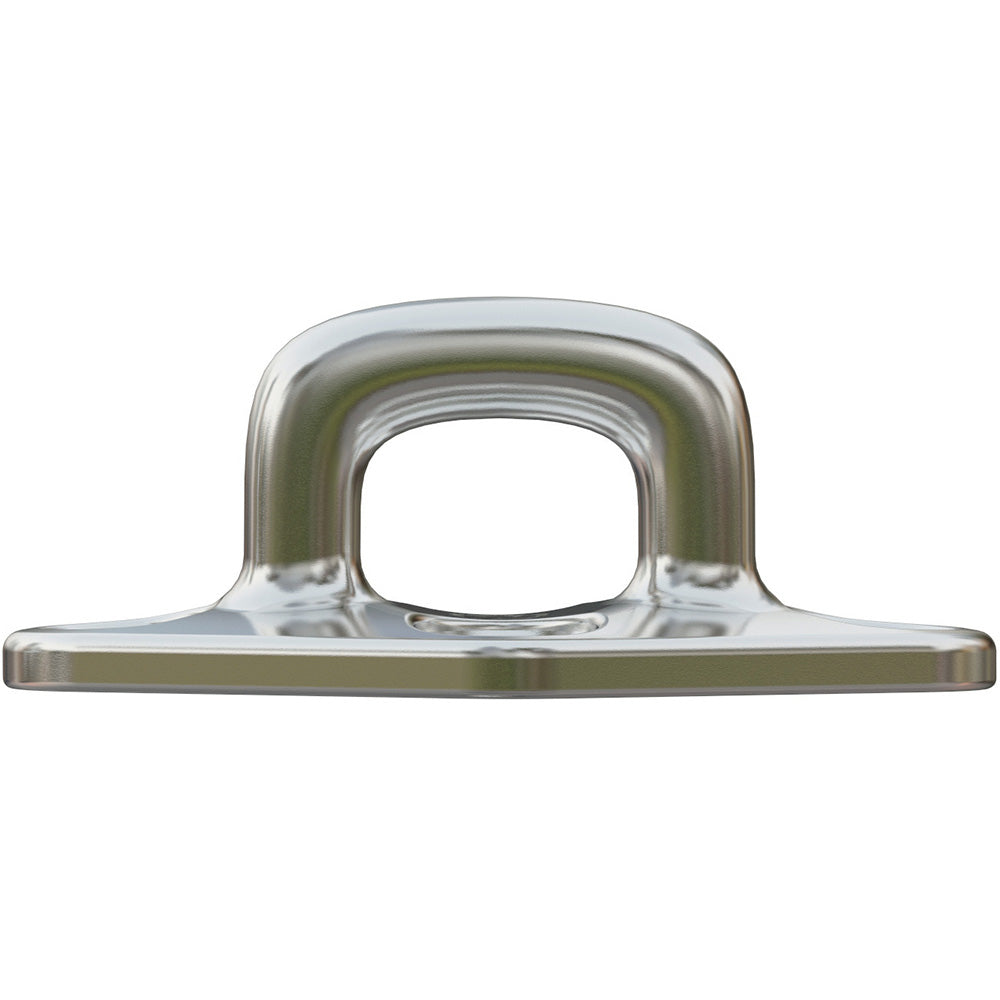

Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M8 screw
Applications:
- Mast foot blocks
- Reefing blocks
- Various fastenings
Specifications
Specifications
Identification
| MPN | 6656W |
|---|

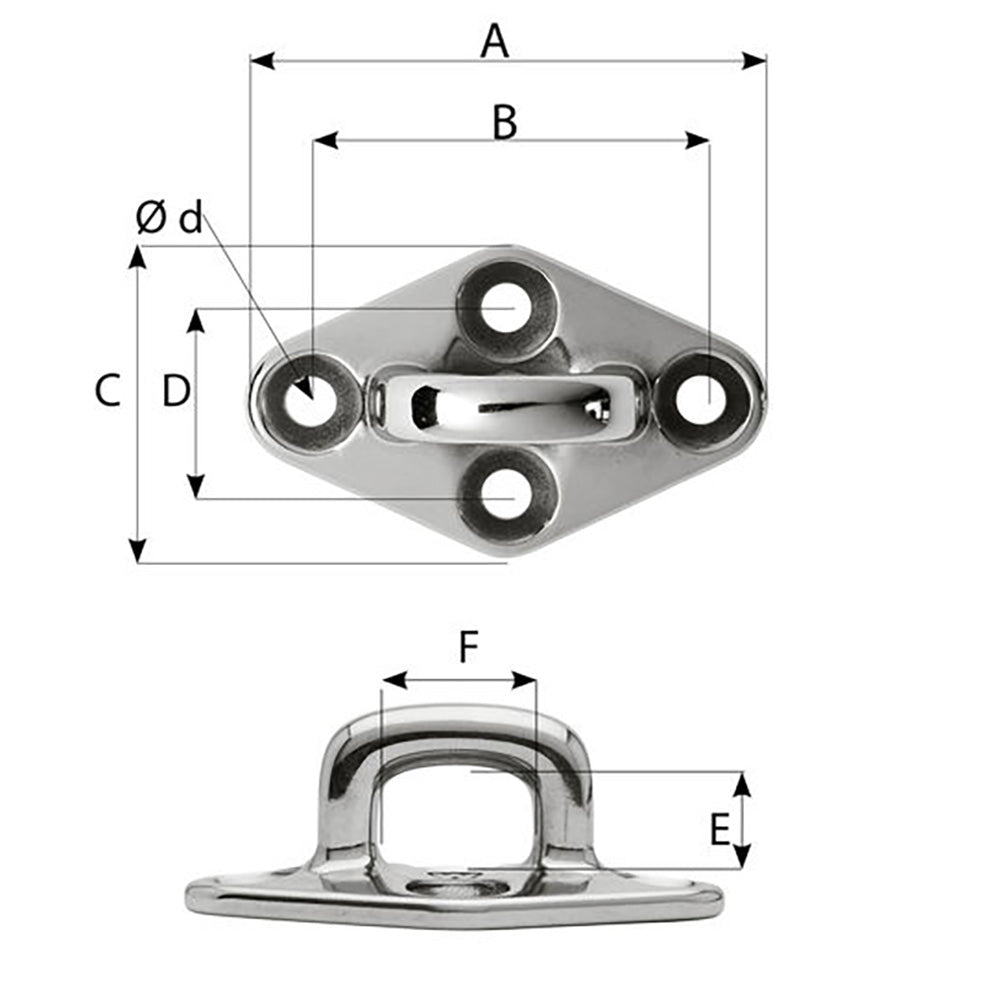

Dimensions:
| A | (inch) 3 55/64" / (mm) 98 |
|---|---|
| B | (inch) 2 7/8" / (mm) 73 |
| C | (inch) 2 21/64" / (mm) 59 |
| D | (inch) 1 3/8" / (mm) 35 |
| E | (inch) 49/64" / (mm) 19.5 |
| F | (inch) 1 1/16" / (mm) 27 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
