JL Audio | SKU: JLA/010-03113-00 | Barcode: 699440986786

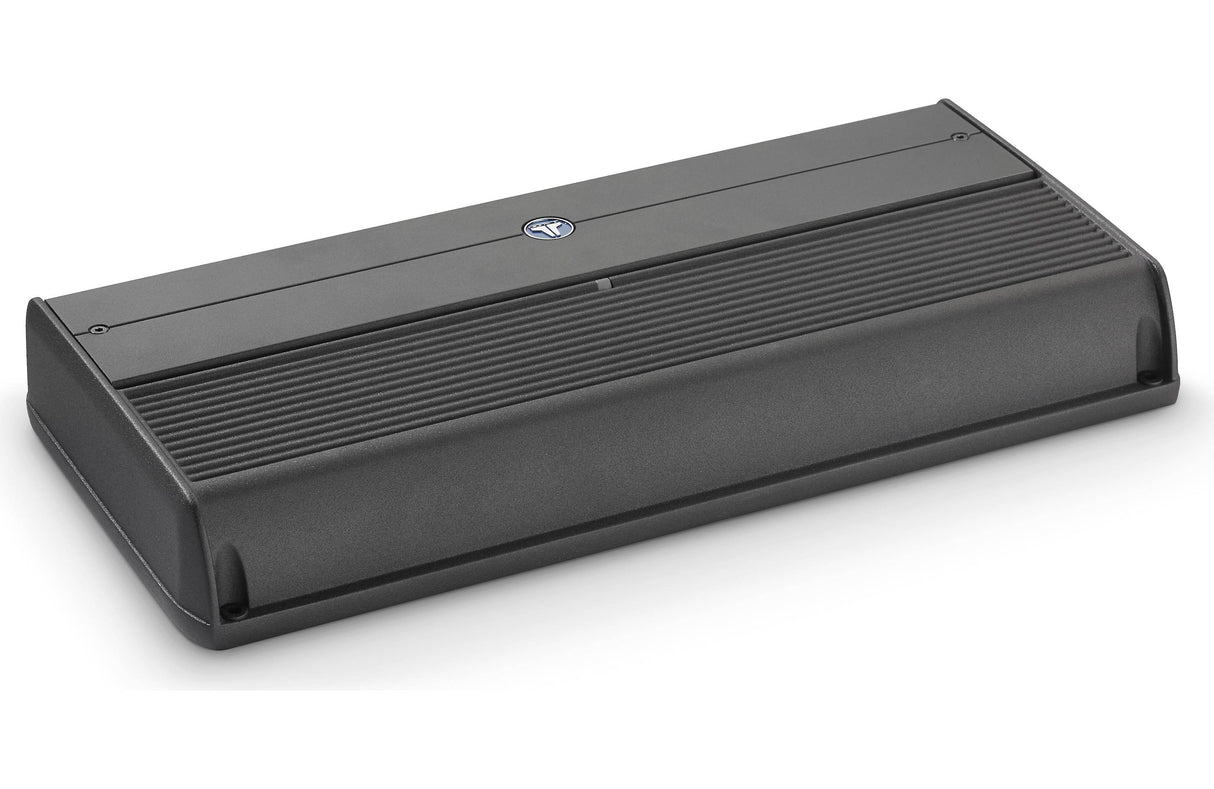

XDM1000/5

Name: XDM1000/5
Brand: JL Audio
SKU: JLA/010-03113-00
Price: 974.99 USD
Availability: InStock

1000w 5ch Amplifier

$974⁹⁹ $1,049⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

The XDM1000/5 delivers up to 1000 W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent powerhouse, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ohms), while also generating a stout 600 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD™ switching amplifier design.

Suitable for car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

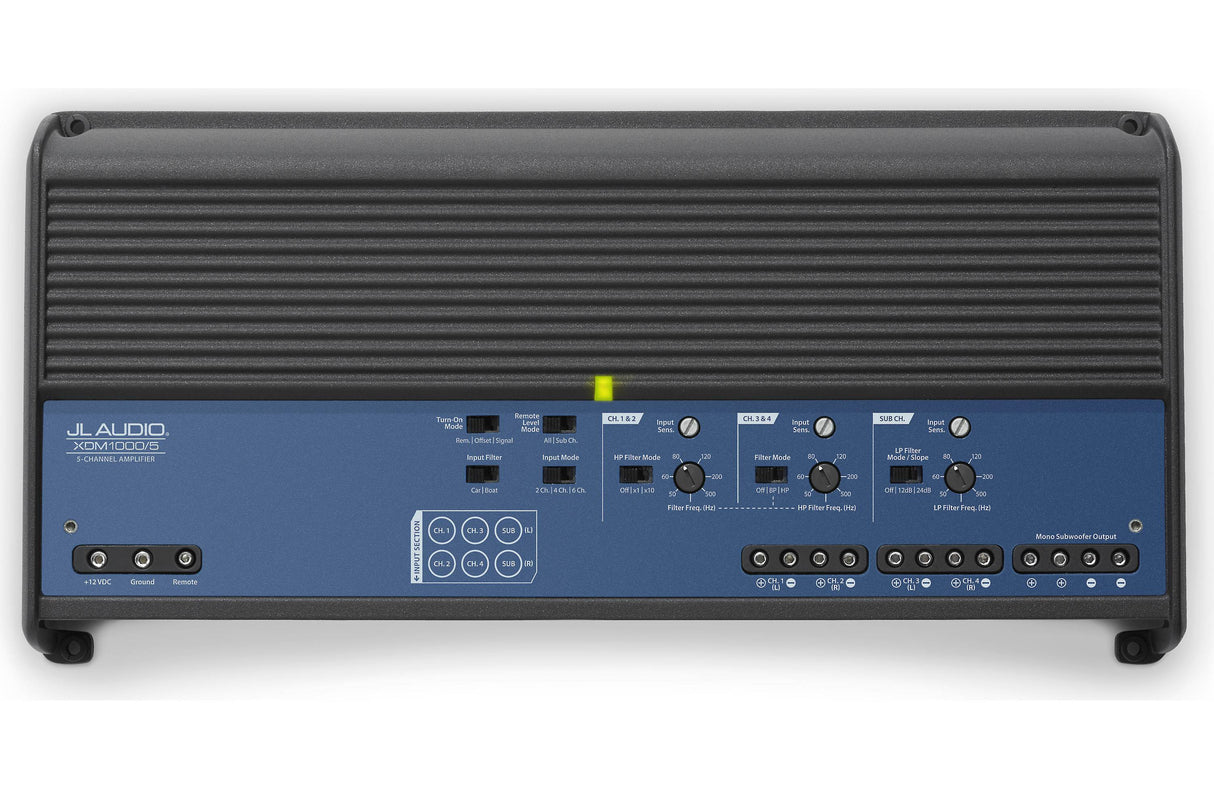

The XDM1000/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.

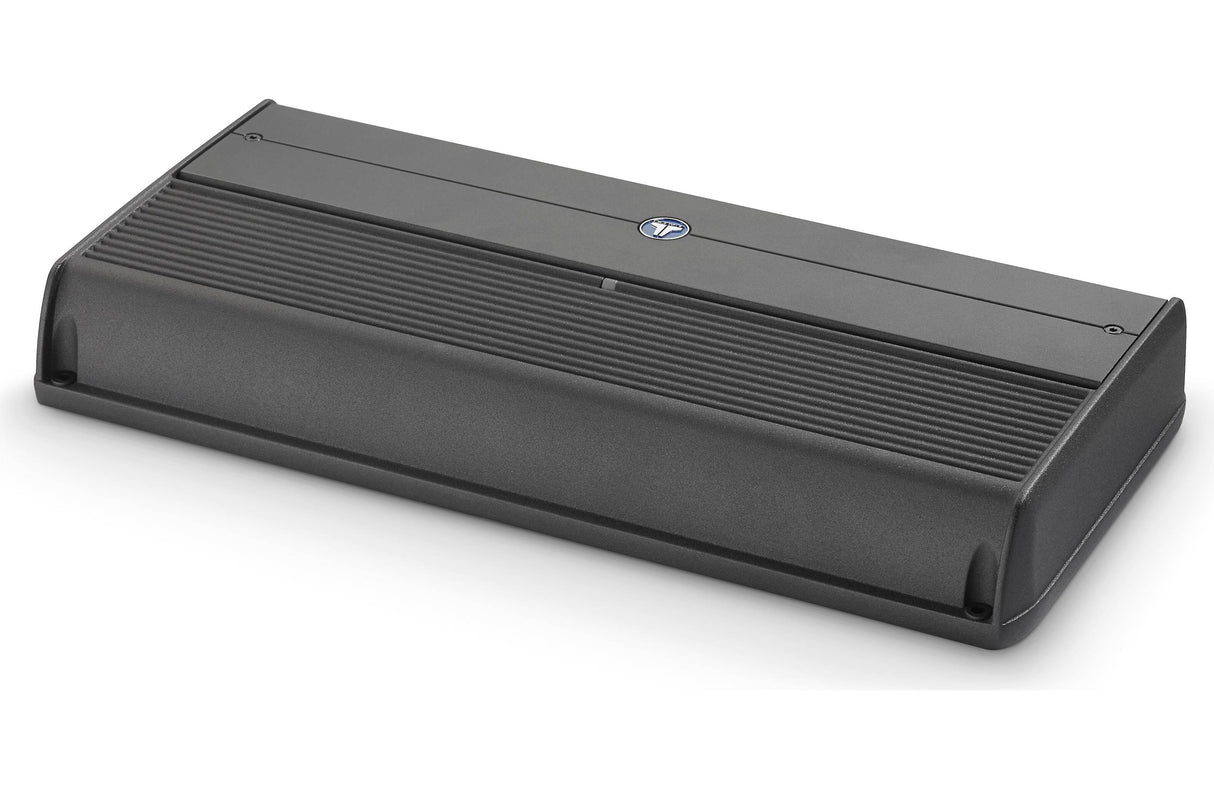

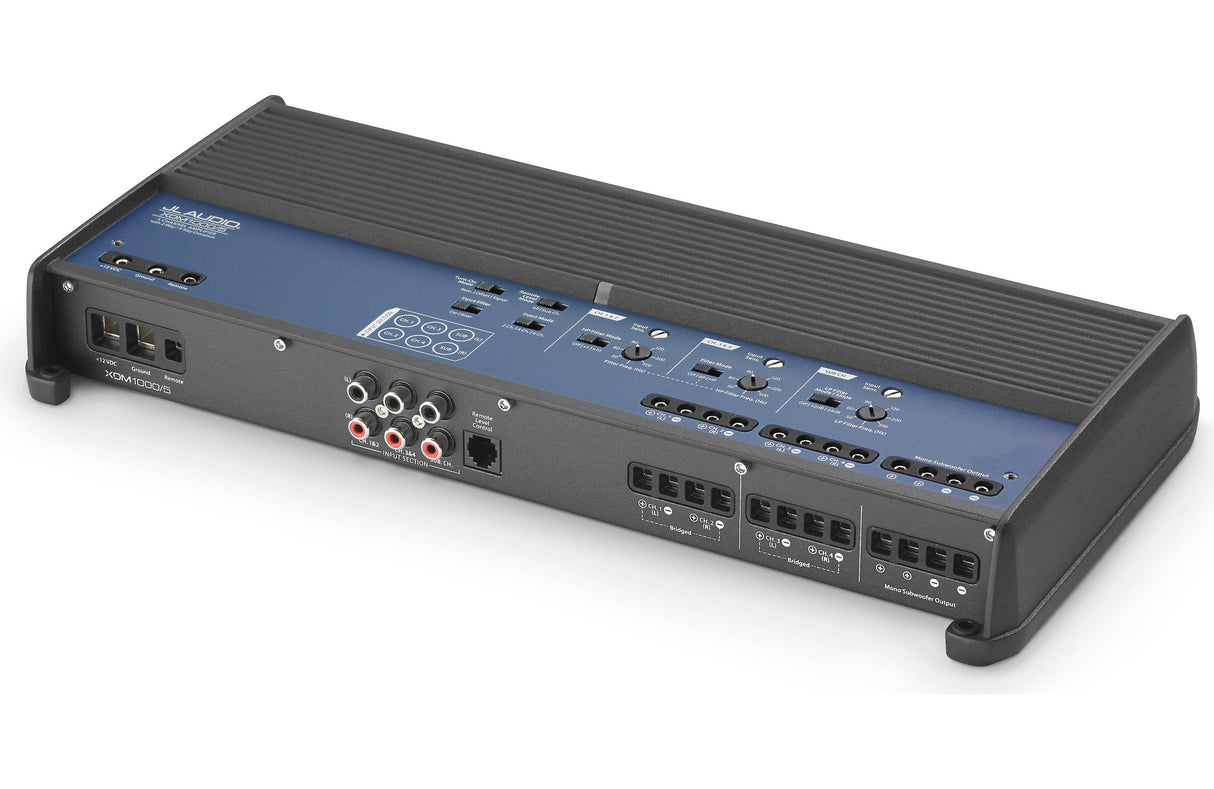

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications

Product Series

XDM
MPN

010-03113-00
Physical

Height: 2.05" (52 mm)
Width: 14.73" (374 mm)
Depth: 7.09" (180 mm)
Amplifier Power

Amplifier Type: Class D
Continuous RMS Power:
Main Ch:
4Ω @ 14.4v = 75 W x 4
2Ω @ 14.4v = 100 W x 4
Subwoofer Ch:
4Ω @ 14.4v = 400 W x 1
2Ω @ 14.4v = 600 W x 1
Main Ch:
4Ω @ 12.5v = 60 W x 4
2Ω @ 12.5v = 90 W x 4
Subwoofer Ch:
4Ω @ 12.5v = 300 W x 1
2Ω @ 12.5v = 600 W x 1
Amplifier Processing

Frequency Response:
Main Channels: 12 Hz - 22 kHz
Sub Channel: 10 Hz - 1 kHz
Signal to Noise Ratio (Highest Rated Power): 104 dB
Signal to Noise Ratio (1 W): 84 dB
THD+N (Main Channels): 1% @ 2Ω
THD+N (Sub Channel): 1% @ 2Ω
Damping Factor (4Ω): 150/50 Hz
Amplifier Filters

Input Channel Modes: 2ch / 4ch / 6ch
Filter Modes:
Main Channels: Off / HPF / Bandpass Ch3/4
Sub Channel: Off / LPF
Filter Frequency:
Main Channels: 50 Hz - 500 Hz
Sub Channel: 50 Hz - 500 Hz
Filter Slope:
Main Channels: 12 dB/octave
Sub Channel: 12/24 d
Power

Input: 11-14.5v DC
Minimum Wiring: 4awg

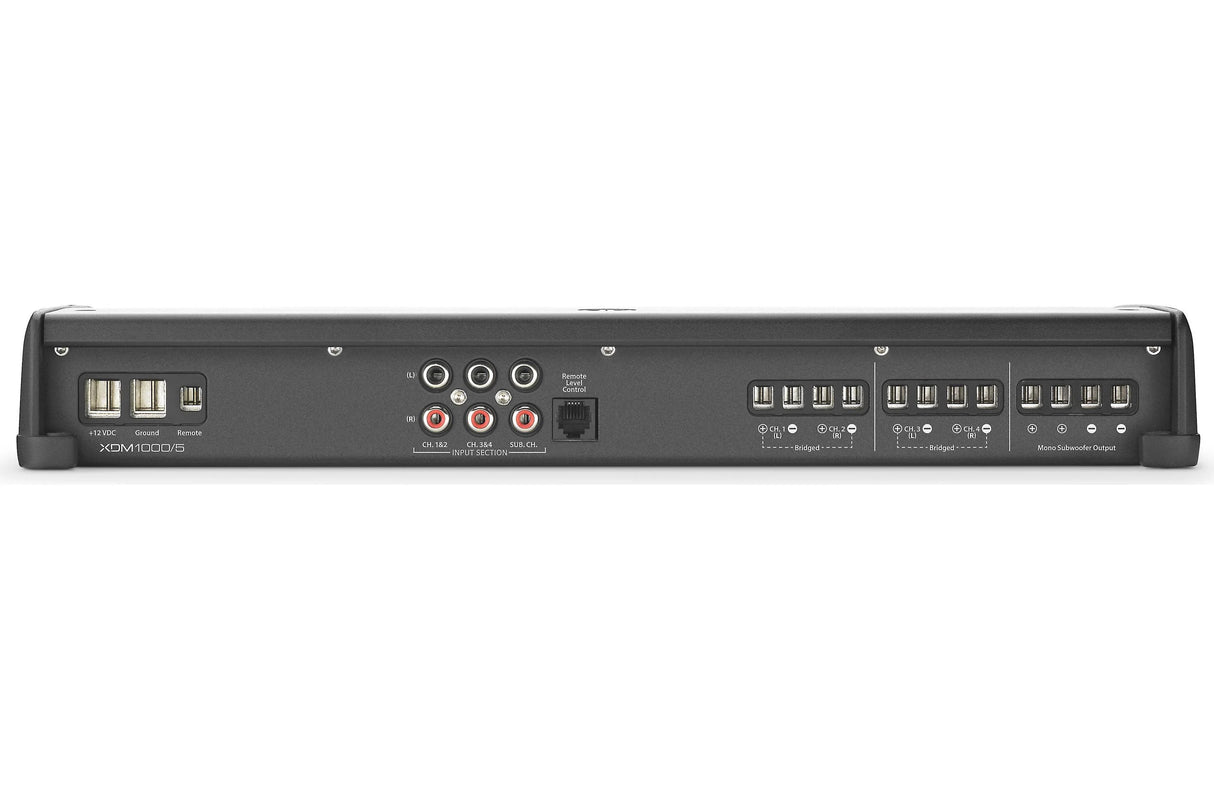

Connectivity

Power Input
CH 1/2 Input (RCA)
CH 3/4 Input (RCA)
Sub Input (RCA)
Remote Input
CH 1/2 Output
CH 3/4 Output
Sub Output
Other

0
IP Rating

Not Rated
