JL Audio | SKU: JLA/010-03115-00 | Barcode: 699440986816

XDM400/4

Name: XDM400/4
Brand: JL Audio
SKU: JLA/010-03115-00
Price: 604.99 USD
Availability: InStock

400w 4ch Amplifier

$604⁹⁹ $679⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

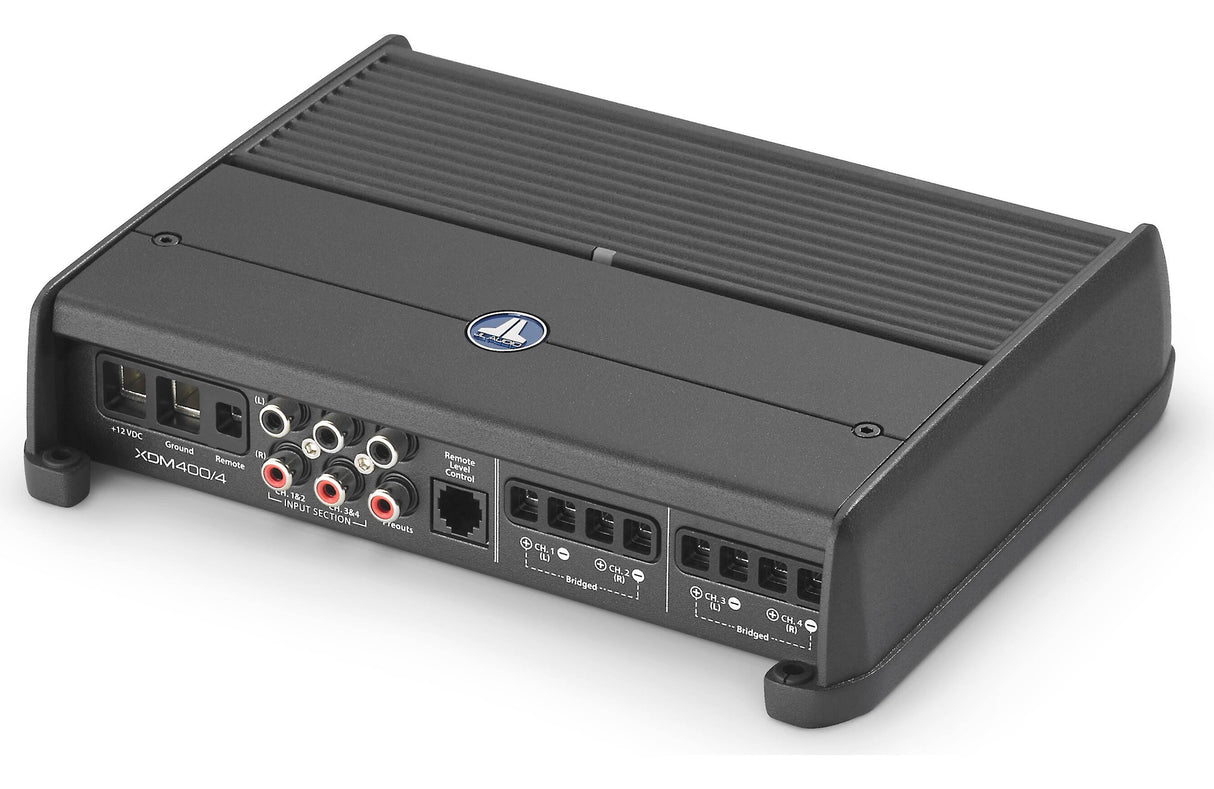

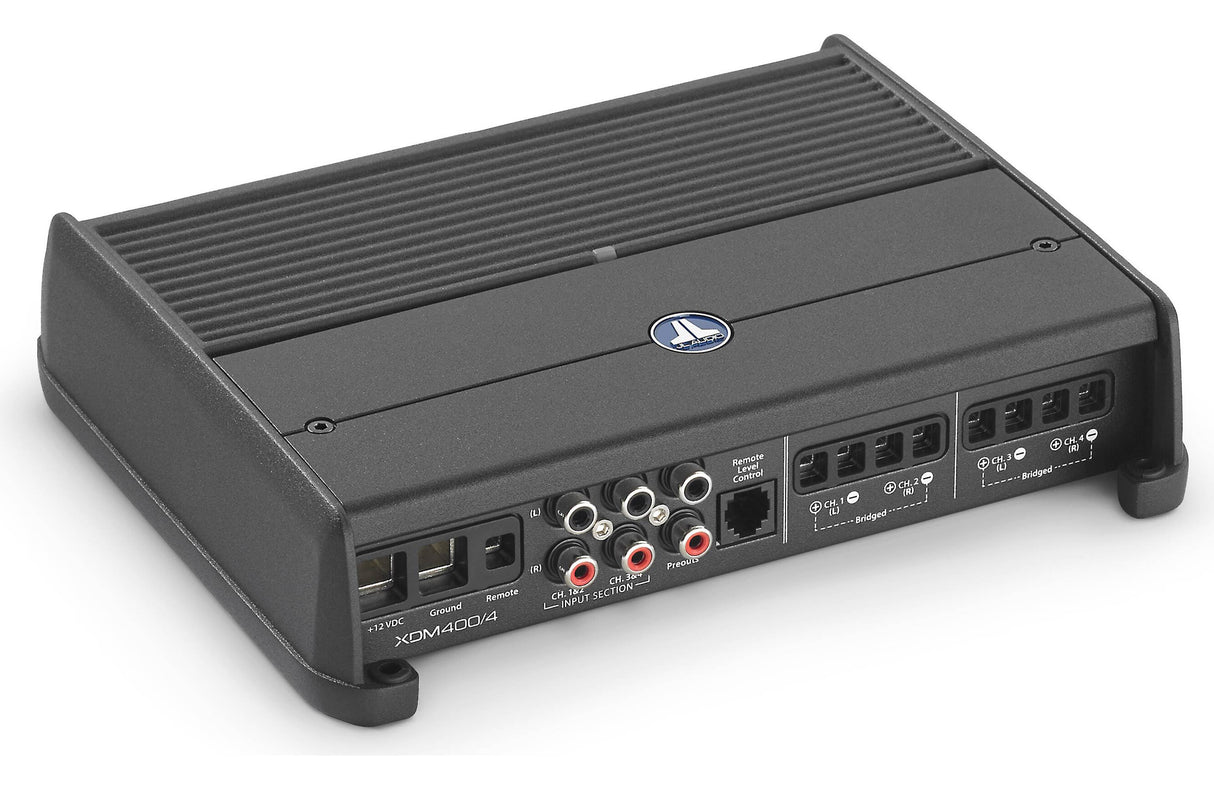

The ultra-compact XDM400/4 packs a serious full-range punch, generating a whopping 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM400/4 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Combine the XDM400/4 with our XDM600/1 monoblock to build a stunning 1000 W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat or deck. Or, use the XDM400/4 by itself to power two satellites, plus a subwoofer.

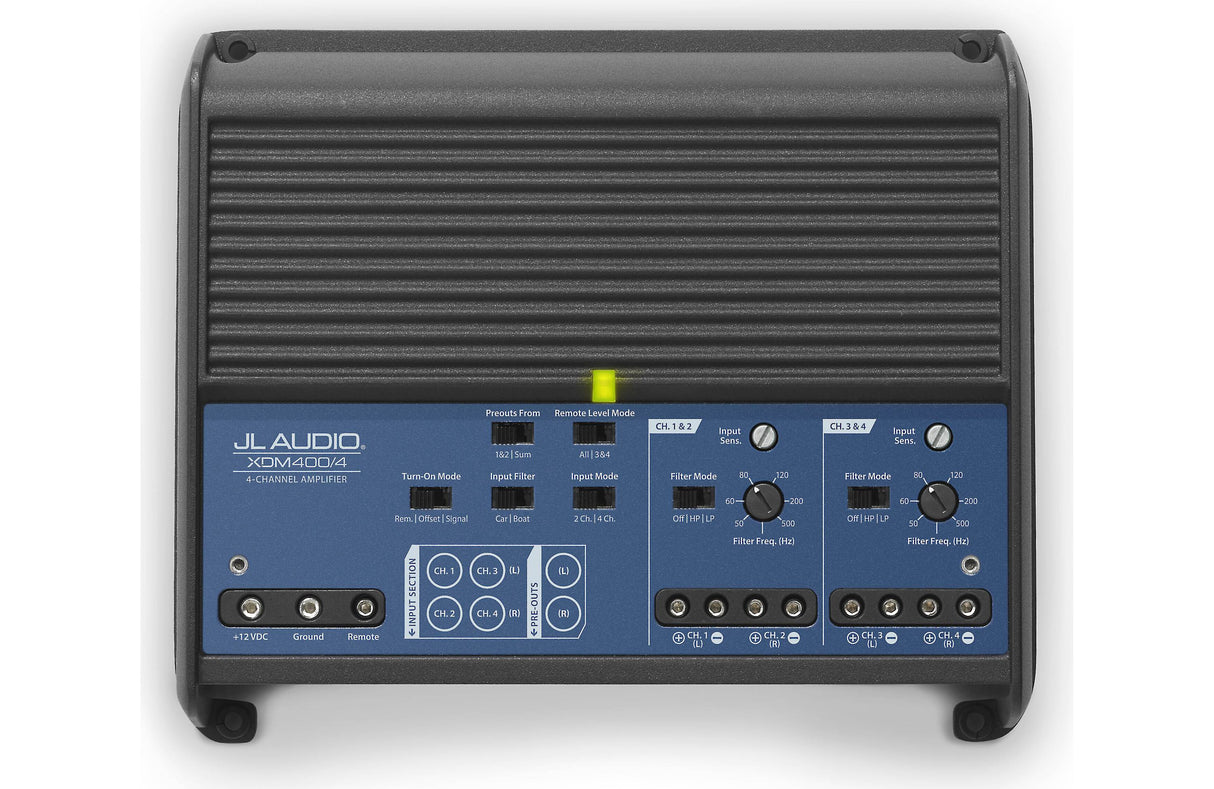

The XDM400/4 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the rear channels directly from the driver's seat or cockpit.

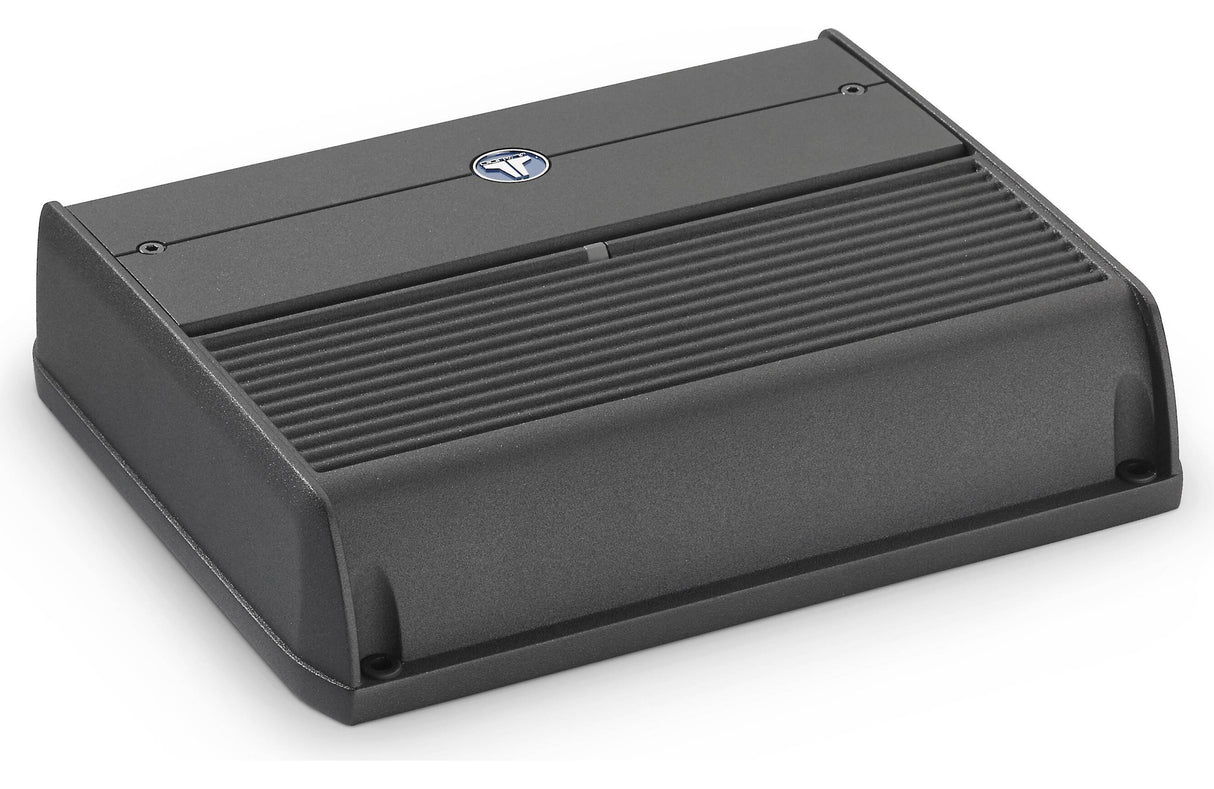

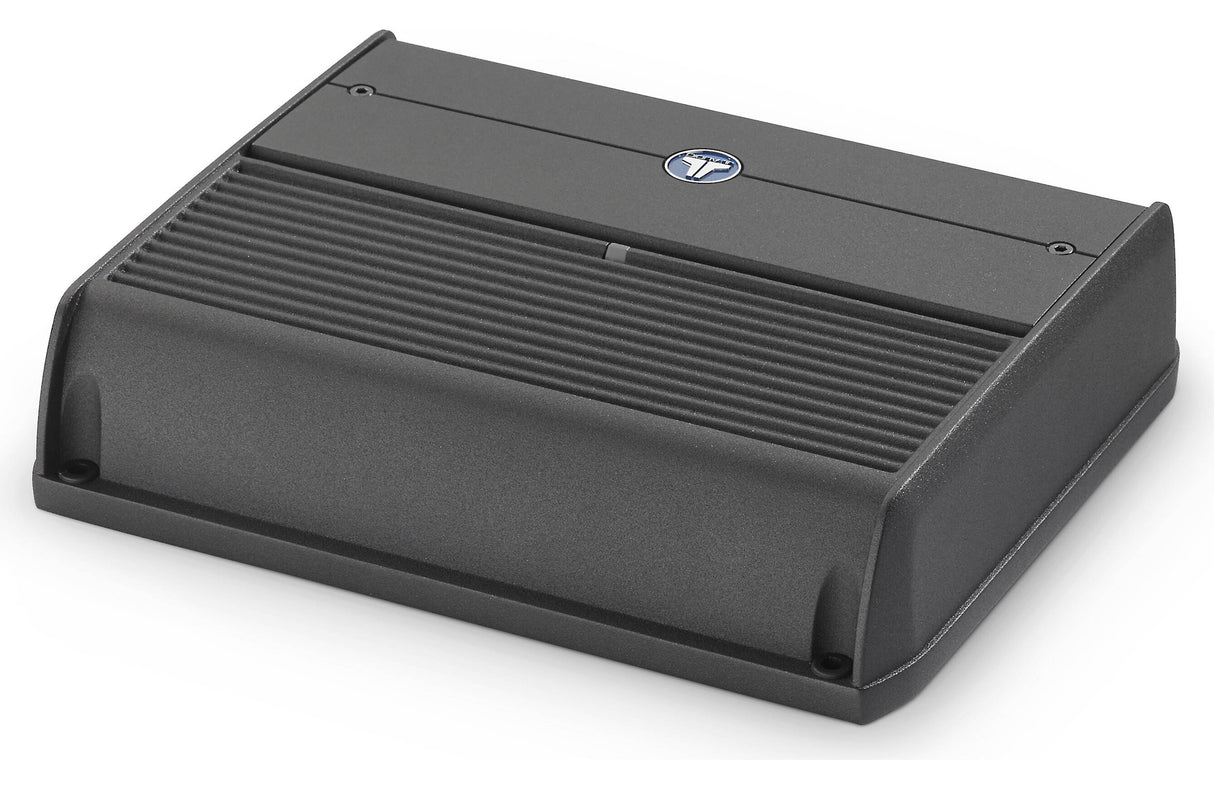

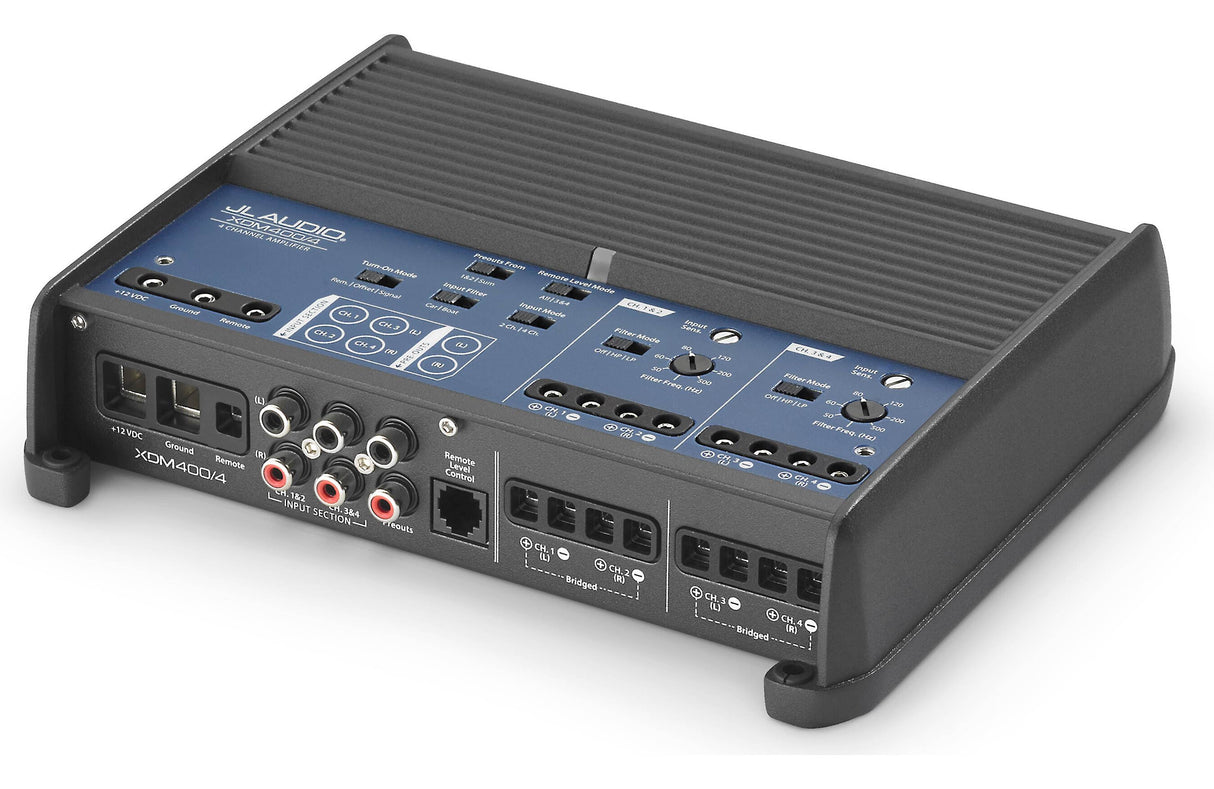

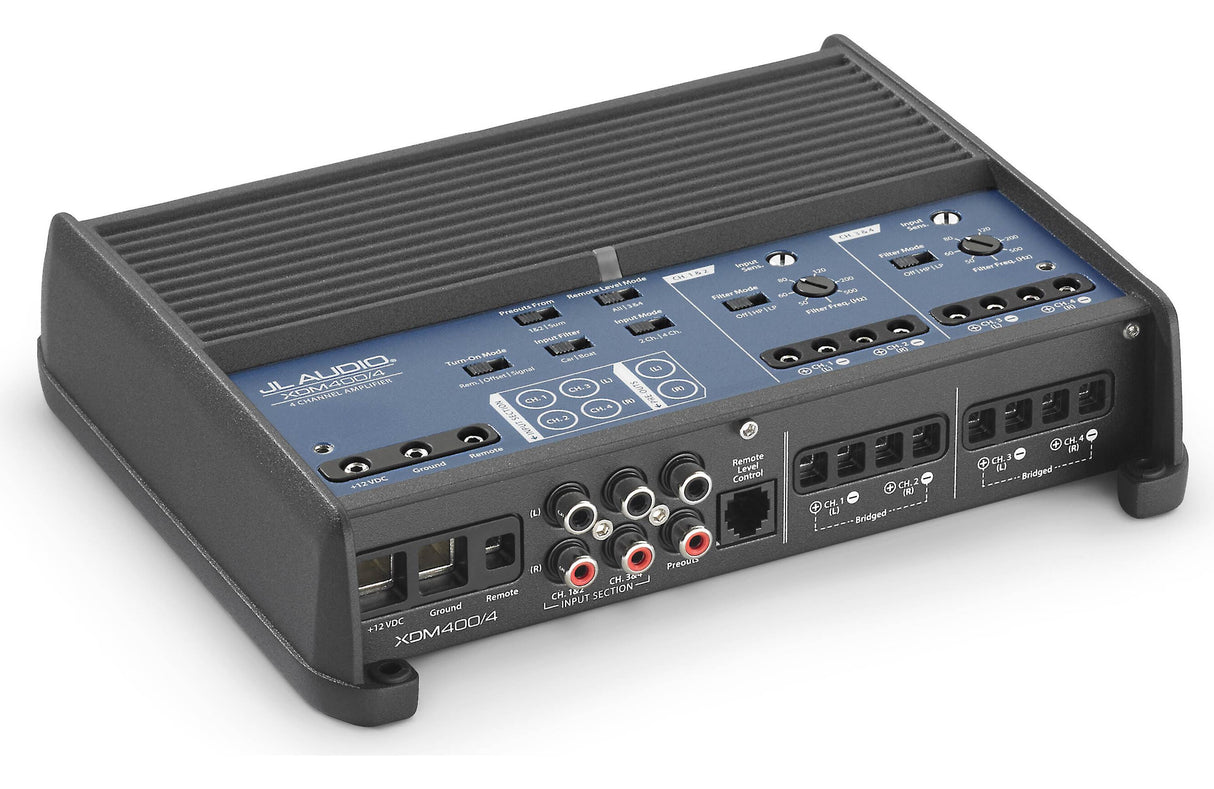

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications

Product Series

XDM
MPN

010-03115-00
Physical

Height: 2.05" (52 mm)
Width: 6.85" (174 mm)
Depth: 7.09" (180 mm)
Amplifier Power

Amplifier Type: Class D
Continuous RMS Power:
4Ω @ 14.4v = 75 W x 4
2Ω @ 14.4v = 100 W x 4
4Ω Bridged @ 14.4v = 200 W x 2
4Ω @ 12.5v = 60 W x 4
2Ω @ 12.5v = 90 W x 4
4Ω Bridged @ 12.5v = 180 W x 2
Amplifier Processing

Frequency Response: 12 Hz - 22 kHz
Signal to Noise Ratio (Highest Rated Power): 104 dB
Signal to Noise Ratio (1 W): 84 dB
THD+N: 1% @ 2Ω
Damping Factor (4Ω): 150/50 Hz
Damping Factor (2Ω): 75/50 Hz
Amplifier Filters

Input Channel Modes: 2ch / 4ch
Filter Modes: Off / LPF / HPF
Filter Frequency: 50 Hz - 500 Hz
Filter Slope: 12 dB/octave
Infrasonic Filter: No
Pass-Through Pre Out: Yes (Buffered)
Remote Level Control: Yes
Power

Input: 11-14.5v DC
Minimum Wiring: 4awg

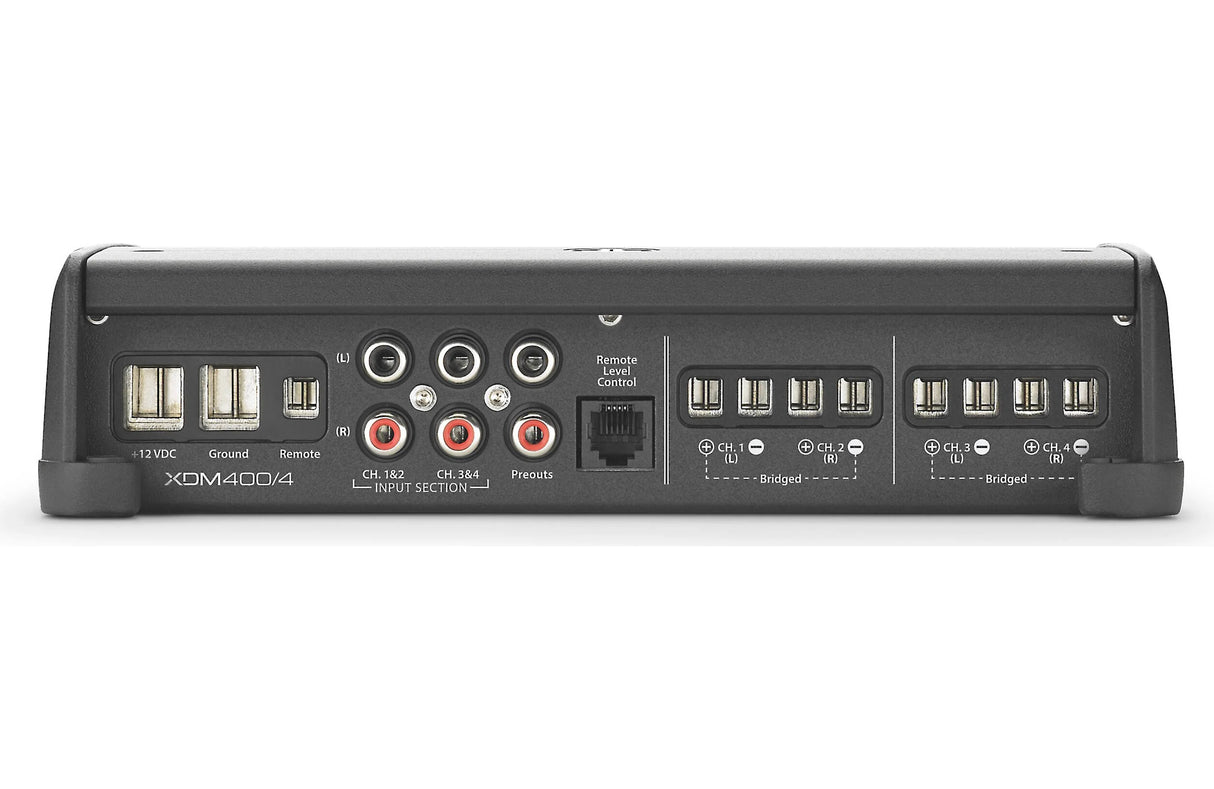

Connectivity

Power Input
CH 1/2 Input (RCA)
CH 3/4 Input (RCA)
Preout (RCA)
Remote Input
CH 1/2 Output
CH 3/4 Output
Other

0
IP Rating

Not Rated
