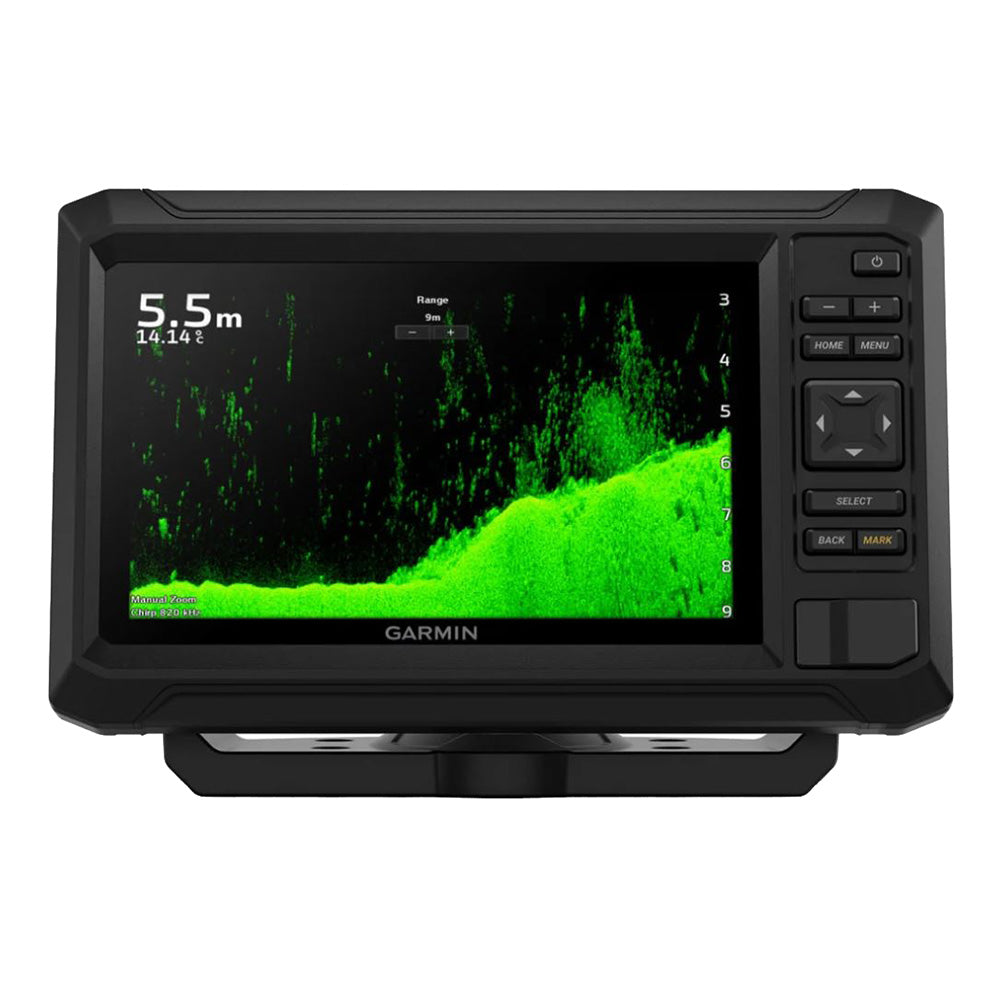

ECHOMAP™ UHD2 72cv without Transducer
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.
Features:
- 7” display size
- The bright keyed display is made for convenience
- Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars
- What’s under the water looks even better with high-contrast vivid color palettes
- Wi-Fi connectivity2 between compatible chartplotters makes it easy to share info
- Enjoy No. 1 in mapping with Garmin’s LakeVü g3 and BlueChart® maps with Navionics® data
Sonar Support
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Bundle the Transducer
The ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
Preloaded Charts
Know the waters users are in as if they grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.
Wireless Networking
If users have another compatible ECHOMAP UHD2 chartplotter on the boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.
ActiveCaptain® App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data, and more.
Specifications
Specifications
Identification
| MPN | 010-02593-00 |
|---|---|
| Barcode | 753759284640 |
General:
| Dimension | 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm) |
|---|---|
| Weight | 1.5 lbs (0.7 kg) |
| Waterproof | IPX7 |
| Display Type | WVGA, TN |
| Display Size | 6.1" x 3.4" (15.5 x 8.7 cm) |
| Display Resolution | 800 x 480 pixels |

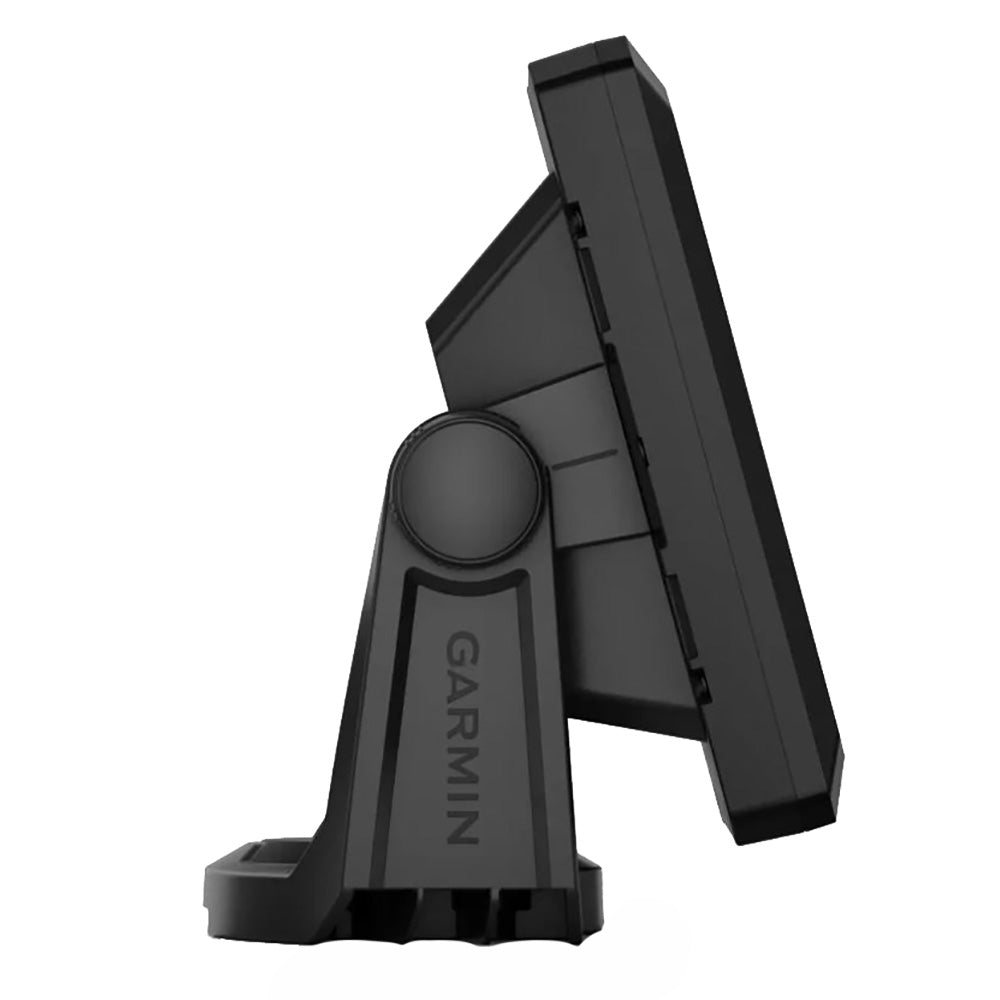

| Mounting Options | Bail or flush |
| Input | Keyed |
Maps & Memory:
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
|---|---|
| Waypoints | 5,000 |
| Track Points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors:
| GPS | Yes |
|---|---|
| Galileo | Yes |
| Has Built-In Receiver | Yes |
| Receiver | 5 Hz |
| Supports WAAS | Yes |
Built-In Maps:
| Built-In Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
|---|---|
| Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
| Garmin Navionics+ (Coastal) | Yes |
| Garmin Navionics+ (Inland) | Yes |
| Tide Tables | Yes |
Optional Map Support:
| BlueChart g3 | Yes |
|---|---|
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+ | Yes |
| Garmin Navionics Vision+ | Yes |
| TOPO U.S. 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
Chartplotter Features:
| ActiveCaptain® Compatible | Yes |
|---|
Electrical Features:
| Power Input | 9 to 18 VDC |
|---|---|
| Typical Current Draw at 12 VDC | 1.0 A |
| Maximum Current Draw at 12 VDC | 1.5 A |
| Maximum Power Usage at 10 VDC | 18 W |
Sonar Features:
| Displays Sonar | Yes |
|---|---|
| Power Output | 500 W |
| Traditional Sonar (Dual Frequency/Beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
Connections:

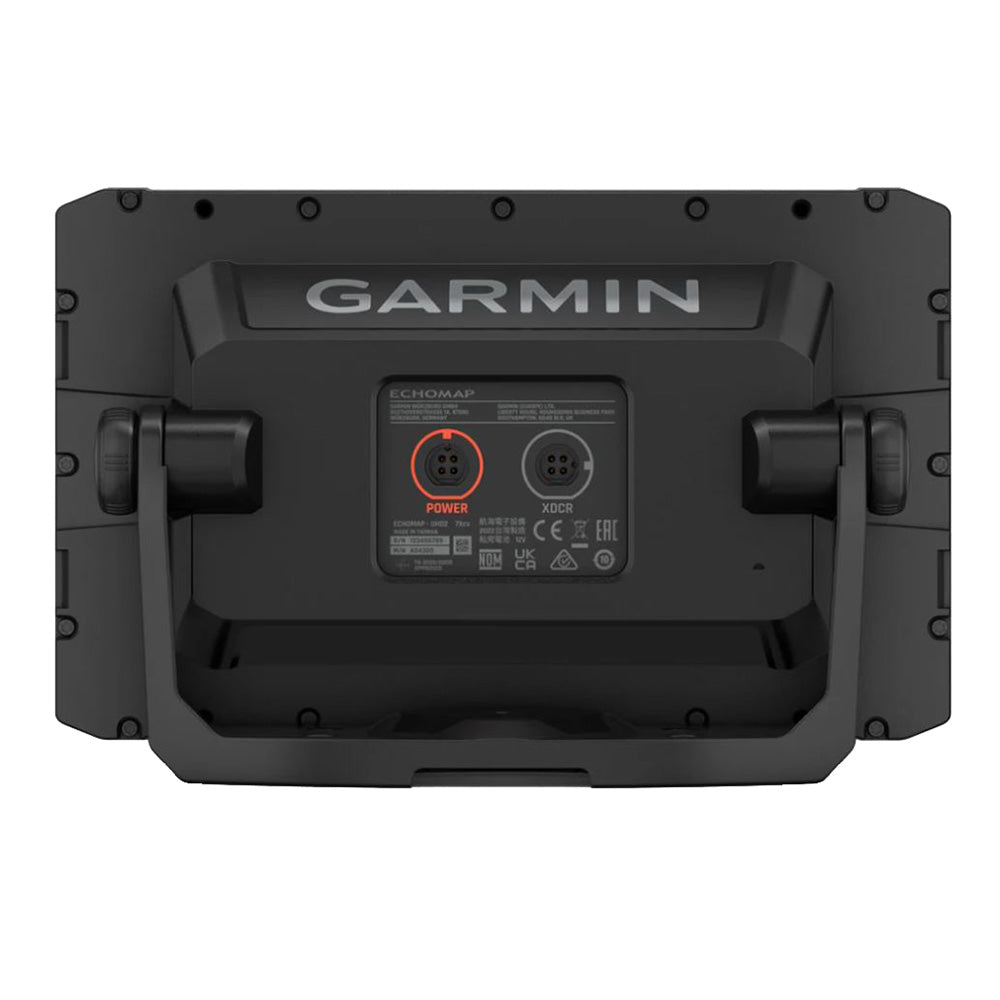

| 4-Pin Transducer Ports | 1 |
|---|---|
| Garmin Wi-Fi Network (Local Connection) | Yes |
