Simrad | SKU: SIM/000-15403-002 | Barcode: 9420064113576

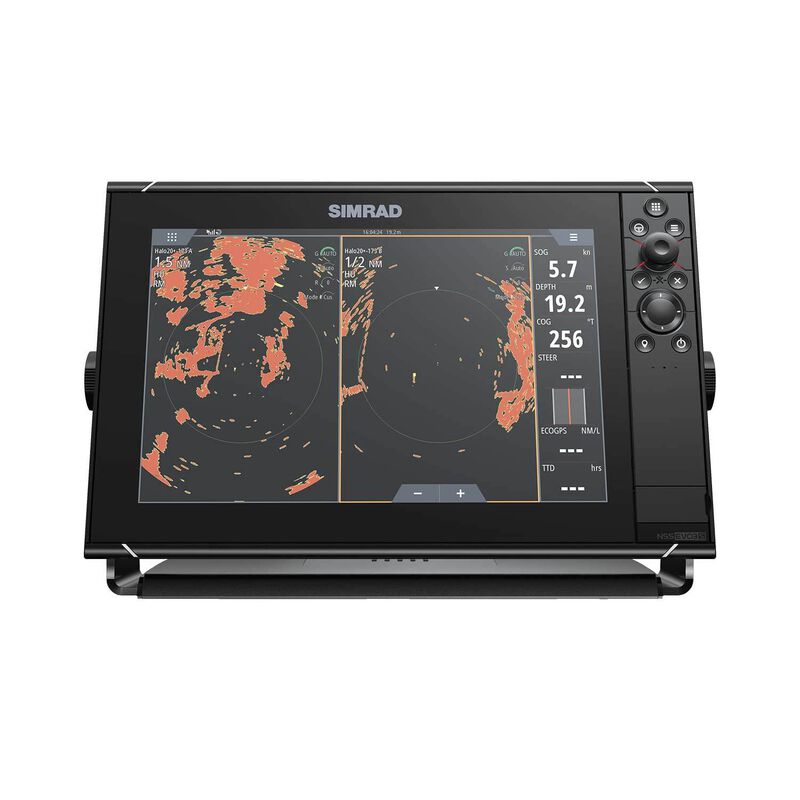

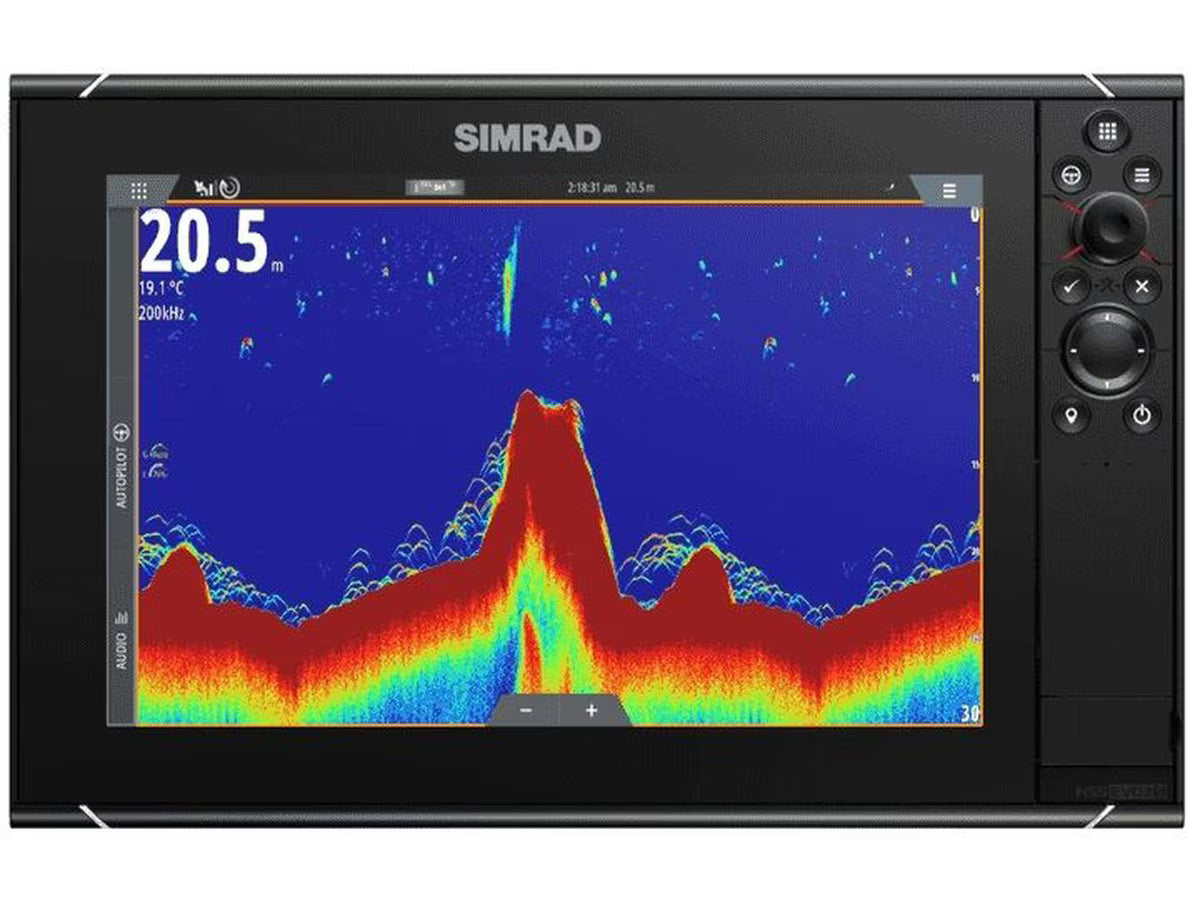

NSS12 evo3s

Name: NSS12 evo3s
Brand: Simrad
SKU: SIM/000-15403-002
Price: 3699.00 USD
Availability: InStock

$3,699⁰⁰

Options

NSS12 evo3S w/ HALO 20+ Bundle

NSS12 evo3s

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved

High Resolution, High Bright, SolarMax IPS Displays
Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
Take another step forward with Simrad's premium network modules for the ultimate offshore performance
Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
Low profile glass dash styling
Built in Wi-Fi connectivity
Next Generation Processor
SolarMAX IPS Display Technology
Multi-touch screen and keypad hybrid control
Built-in Advanced Echosounder

Specifications

Product Series

NSS
MPN

000-15403-002
Physical

Dimensions: 13.84" x 8.87" x 3.82" (352 x 225 x 98 mm)
Weight: 3.1 kg (6.83lbs.)
Power

Input: 10 - 31.2 V DC
Max Power Draw: 28 W
Fuse Rating: 5 A
Screen

Size: 12"
Resolution: 800 x 1280
Sonar

Two 9 pin Xsonic Sonar ports.
- Sonar Port 1: Single channel CHIRP, 50/200 khz, HDI.
- Sonar Port 2: Single channel CHIRP, 50/200 khz, TotalScan, Active Imaging, LSS HD, ForwardScan
Connectivity

Wireless: Bluetooth & WiFi
x2 MicroSD Card Slots (Front Of Unit)
Physical:
- x2 Network (Yellow 5pin)
- NMEA2000
- Power (4pin)
- x2 xSonic 9pin Sonar Connections
- Video/NMEA0183 Port (Cable Sold Separately)
- HDMI Output
Other

GPS: Internal (10Hz)
Built-In Chart

C-MAP
IP Rating

IPx6
Temp Range

15°C to +55°C (5° F to 131° F)
