Simrad | SKU: SIM/000-16213-001 | Barcode: 9420064132393

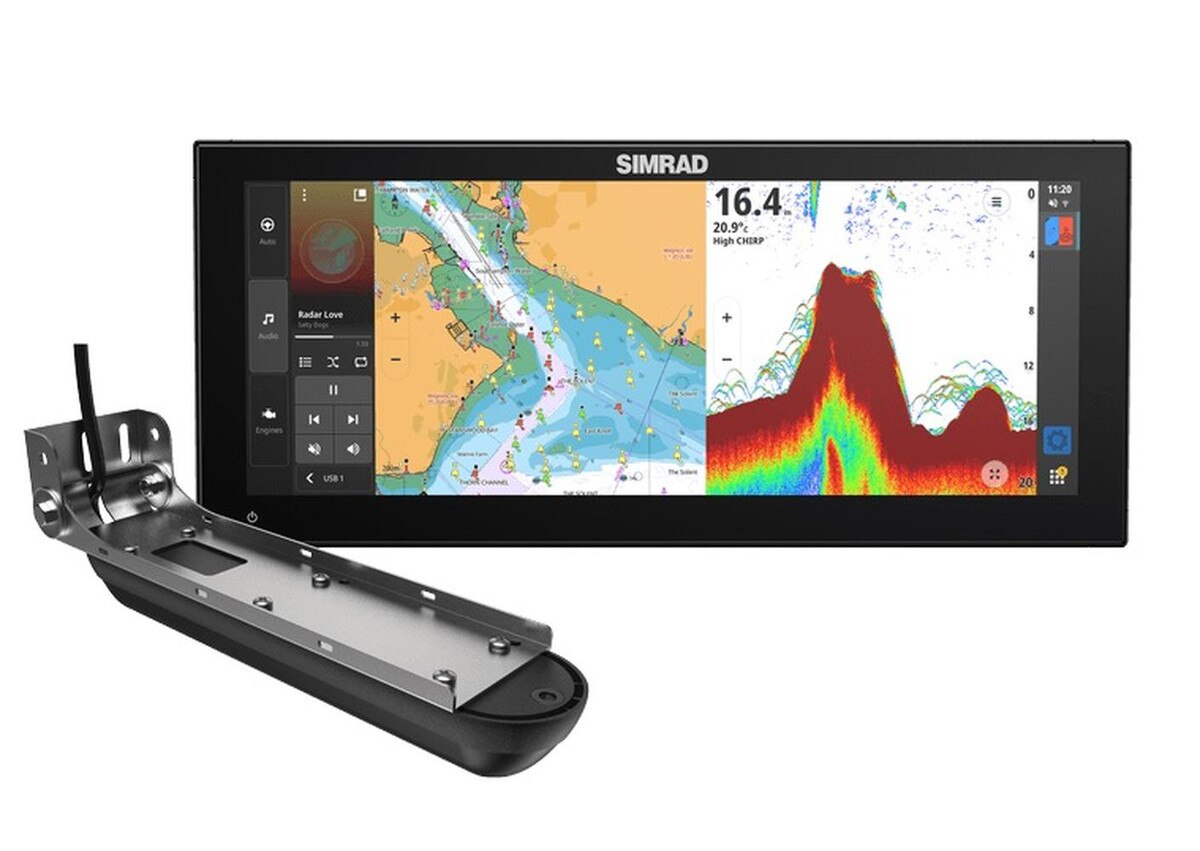

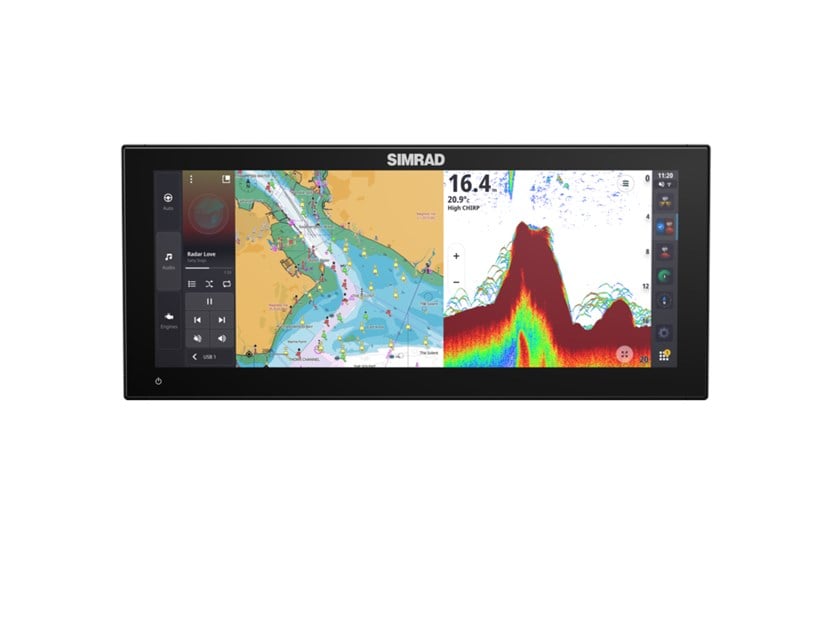

NSX 3015UW + Active Imaging Transducer

Name: NSX 3015UW + Active Imaging Transducer
Brand: Simrad
SKU: SIM/000-16213-001
Price: 3549.00 USD
Availability: InStock

Ultra-Wide 15" MFD w/ Discover X Charts & Transducer

$3,549⁰⁰

Options

NSX 3015UW

Ultra-Wide 15” MFD w/ Discover X Charts

NSX 3015UW + Active Imaging Transducer

Ultra-Wide 15" MFD w/ Discover X Charts & Transducer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

There’s nothing else like NSX ULTRAWIDE - creating eye-catching, low-profile dashboards that stand out instantly. The unique ultrawide display is built to be simpler, cleaner, and more elegant than anything else in the marina.

The cutting-edge aspect ratio is also the perfect place to explore our latest operating system. A simplified presentation delivers game-changing ease of use, with streamlined menus and fully customizable panels.

Ultra-Wide 15" MFD w/ Discover X Charts & Transducer

Specifications

Product Series

NSX
MPN

000-16213-001
Physical

Dimensions:
W: 15.55" (390.0 mm)
H: 6.71" (170.4 mm)
D: 3.48" (88.5 mm)
Weight: 4.2 lbs (1.9 kg)
Power

Power Input: 10 - 17 V DC
Power Draw: 25 W (1811 mA at 13.8 V)
Fuse: 3A
Screen

Touchscreen: Yes
Type: IPS
Display Size: 15" Ultra-Wide
Resolution: 1920 x 720
Sonar

Port: xSonic 9pin
Power: 1000 W (1kW)
Frequencies: Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Connectivity

Built-In GPS: Yes - 10Hz
SD Cards: Yes - microSD (1)
Wireless: WiFi
Network: Yellow Ethernet
NMEA 0183: No
NMEA 2000: Yes
J1939: No
Analog Video In: No
HDMI In: No
HDMI Out: No
USB: Yes
Sonar: Yes - xSonic 9pin
Other

GPS: Internal (10 Hz)
Built-In Chart

C-MAP Discover X
IP Rating

IPx7
