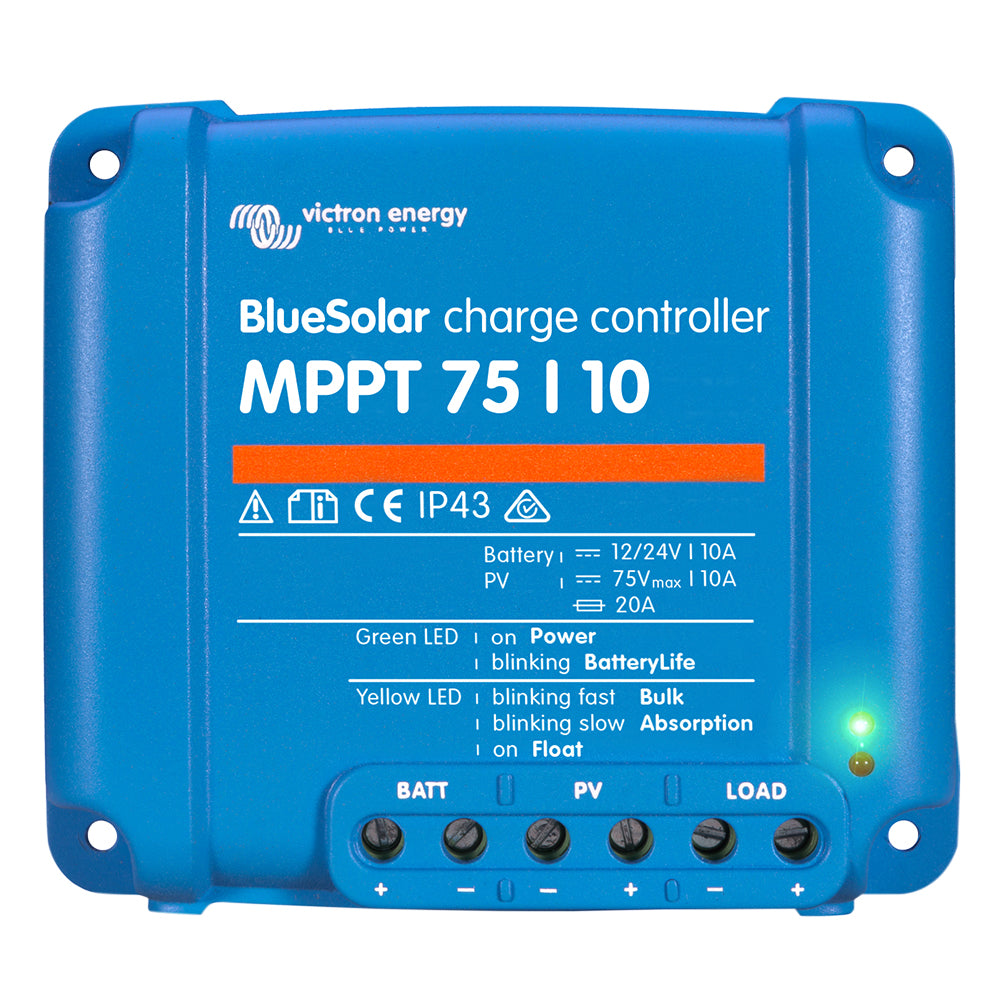

Victron BlueSolar MPPT Charge Controller - 75V - 10AMP

Name: Victron BlueSolar MPPT Charge Controller - 75V - 10AMP
Brand: Victron Energy
SKU: VIC/SCC010010050R
Price: 47.60 USD
Availability: InStock

SKU: VIC/SCC010010050R

$47⁶⁰ $56⁰⁰

Same-Day Shipping Checking cutoff…

Description

BlueSolar MPPT Charge Controller - 75V - 10AMP

Features:

Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Programmable battery charge algorithm See the software section on our website for details
Day/night timing and light dimming option See the software section on our website for details

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications

Identification

MPN	SCC010010050R
Barcode	8719076025306

General

MPN	SCC010010050R
Barcode / EAN	8719076025306

Electrical

Battery Voltage	12/24V (auto-select)
Rated Charge Current	10 A
Max. PV Open Circuit Voltage	75 V
Nominal PV Power @ 12V	145 W
Nominal PV Power @ 24V	290 W
Peak Efficiency	98%
Charge Algorithm	Multi-stage adaptive
Temperature Compensation	-16 mV/°C (12V) / -32 mV/°C (24V)
Consumption (Load Enabled) @12V/24V	19 mA / 16 mA
Consumption (Load Disabled) @12V/24V	10 mA / 8 mA

Physical

Dimensions (HxWxD)	100 x 113 x 40 mm
Weight	0.5 kg
Enclosure	IP43 (electronics), IP22 (connection area)
Operating Temperature Range	-30 to +60°C (full rated output up to 40°C)
