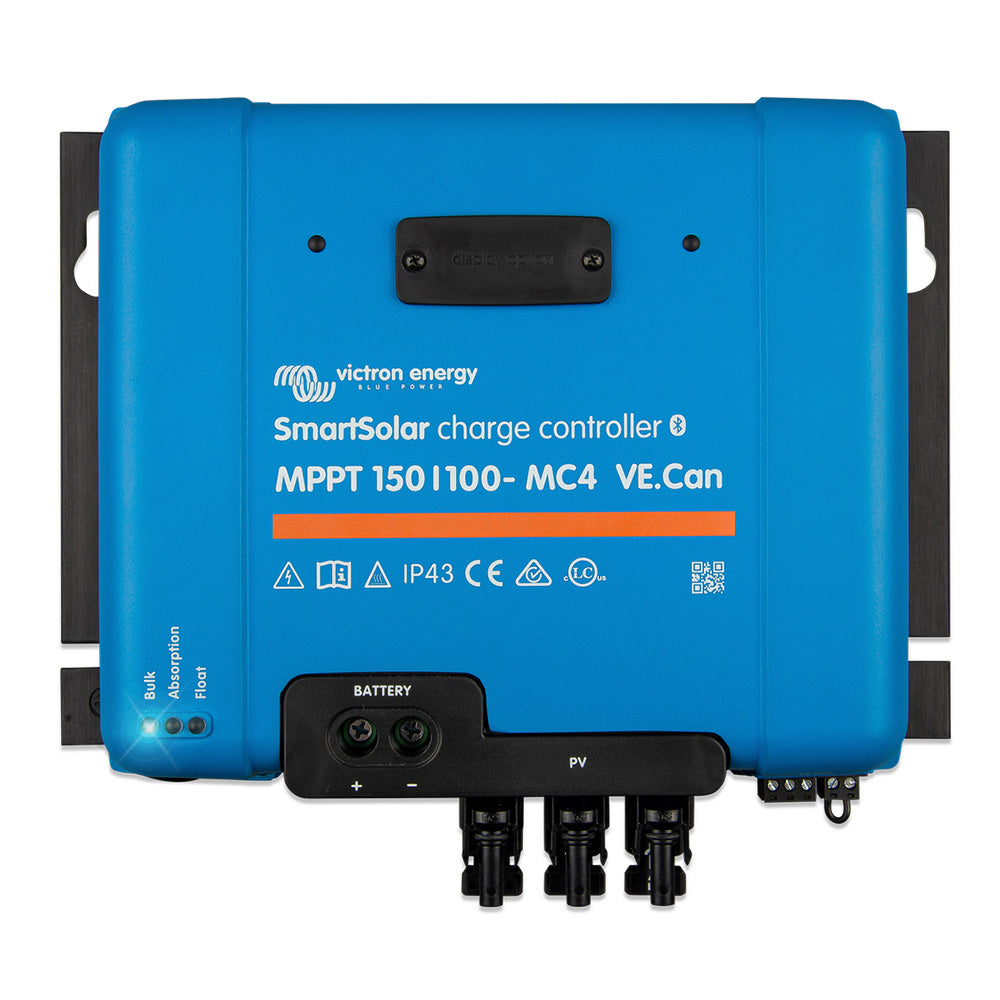

SmartSolar MPPT 150/100-MC4 VE-Can
The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.
Models: 12/24/36/48 Volt
Features:
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading conditions
- Outstanding conversion efficiency
- Flexible charge algorithm
- Extensive electronic protection
- Bluetooth Smart built-in
- Internal temperature sensor and optional external battery voltage and temperature sensing via
- Bluetooth
- Fully discharged battery recovery function
- VE.Direct or VE.Can
- Remote on-off
- Programmable relay
Specifications
Specifications
Identification
| MPN | SCC115110511 |
|---|---|
| Barcode | 8719076050360 |
Electrical
| Battery Voltage | 12/24/48V Auto Select (36V manual) |
|---|---|
| Rated Charge Current | 100A |
| Max PV Open Circuit Voltage | 145V |
| Nominal PV Power @12V | 1450W |
| Nominal PV Power @24V | 2900W |
| Nominal PV Power @48V | 5800W |
| Max Efficiency | 98% |
| Self-Consumption | <35mA @12V / 20mA @48V |
Physical
| Dimensions (HxWxD) | 246 x 295 x 103mm |
|---|---|
| Enclosure | IP43 (electronics), IP22 (connection area) |
Communication
| Interfaces | VE.Can, VE.Direct, Bluetooth |
|---|---|
| Parallel Operation | Up to 25 units synchronized via VE.Can |
