Furuno  |  SKU: DFF3D

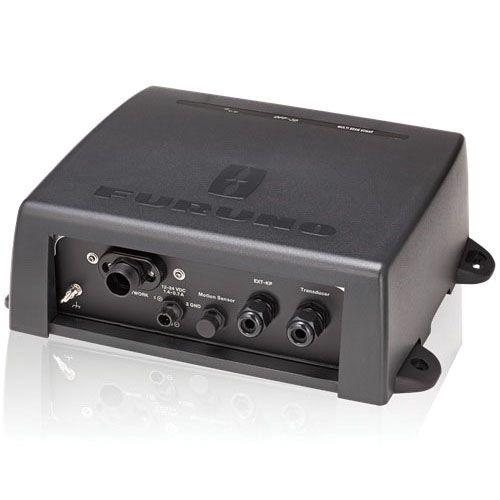

Multi Beam 3D Sonar Module

$1,99500

The DFF-3D is an innovative tool for efficient fish location and seabed profile surveying, utilizing new multi beam technology. Highly detailed images are derived from the combination of an advanced signal processing system and an amazingly compact multi beam transducer.

Looking for Manuals & Documents?

Furuno DFF3D Product Help

3D Sonar Module
Barcode: 611679364517
15.0 lb
  • Sonar
    Power Output: 800W
    Frequency: 165 kHz
    Max Depth:
    - Side: 656'
    - Down: 984'
  • Physical
    Dimensions:
    W: 15" (380 mm)
    H: 12.4" (316 mm)
    D: 4.7" (120 mm)
    Weight: 6.6 lbs (3 kg)
  • Power
    Power Input: 12/24v DC
    Power Draw: 1.4-0.7 A
    Fuse:
  • Connections
    Transducer
    Motion Sensor
    EXT-KP
    Furuno Network
    Power
  • Water Rating
    IP55
