Navico (Simrad/Lowrance/B&G)  |  SKU: SIM/00015918001

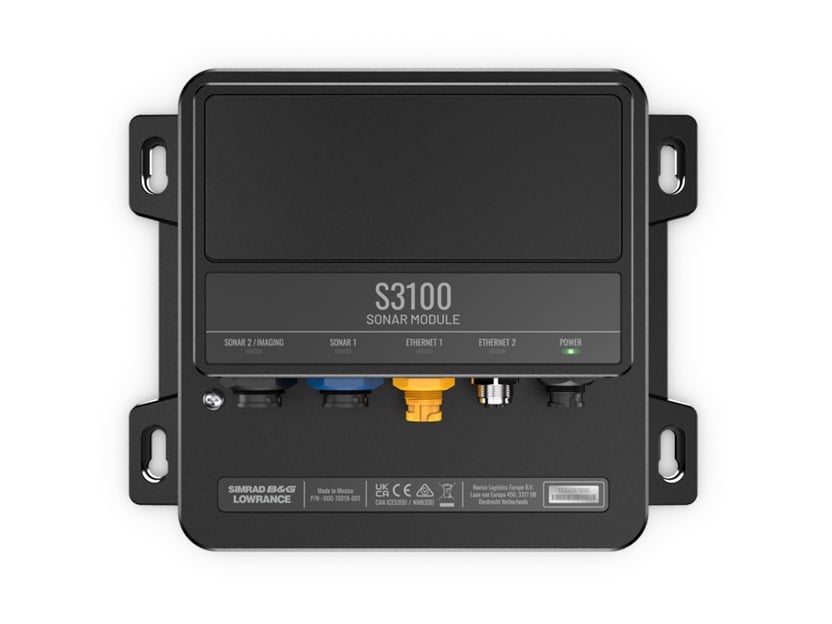

Active Imaging HD Sonar Module

S3100

$94900
Shipping calculated at checkout.
The compact S3100 sonar module takes your fishing to the next level, with a wealth of powerful fishing features packed into one small but intelligent box. The S3100 brings Active Imaging™ HD to NSX®, NSS™ and NSO™ Evo™3S displays. Experience superior underwater clarity and a FishReveal™ view on SideScan, so you’ll never miss another fish.
SideScan Sonar Module
3.0 lb
  • Product Series
    Simrad S
  • Physical Specs
    Dimensions:
    W: 9.04" (230 mm)
    H: 7.57" (194 mm)
    D: 3.10" (79 mm)
    Weight: 0.9 kg (1.9 lbs)
  • Power
    Power Input: 10.5 - 31.2 V DC
    Power Draw:
    - Typical: 7.2W
    - Max: 9.6W
  • Connections
    x2 xSonic 9pin Transducer Ports (1 for Active imaging)
    x2 Network Ports
    Power
  • Water Rating
    IPx6
  • Temperature Range
    -15° C to 55° C (5° F to 131° F)
