Garmin  |  SKU: GAR/010-02706-00

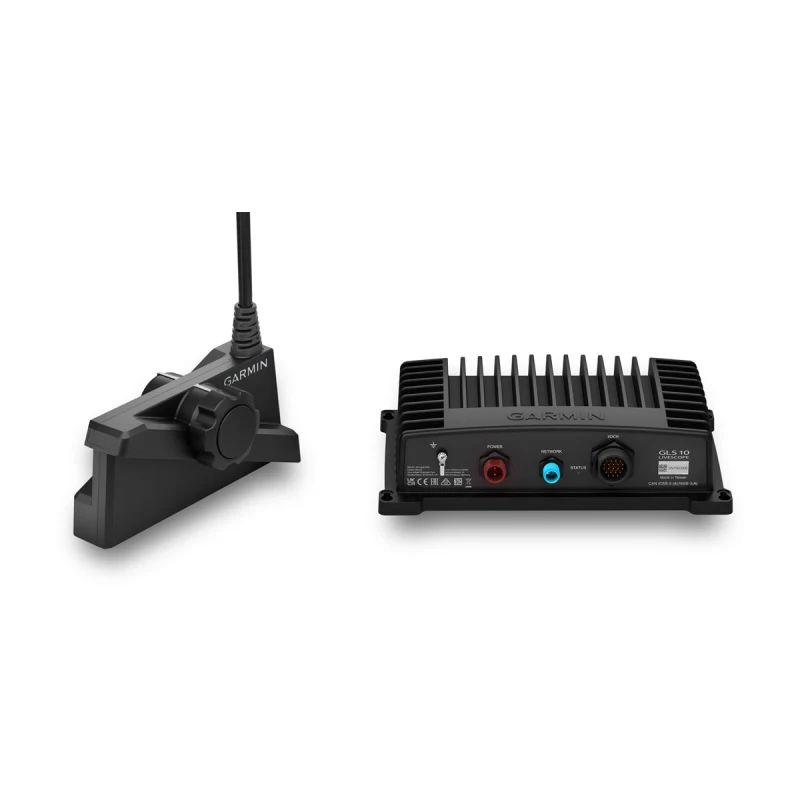

Panoptix LiveScope Plus System

$1,69999

THE BEST OF THE BEST JUST GOT BETTER

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.

Sonar Module
Barcode: 753759298456
9.0 lb
  • Product Series
    Garmin Panoptix LiveScope
  • Sonar
    Power Output: 500W
    Frequency: 530 - 1,100 kHz
  • Physical
    Dimensions:
    - GLS 10:
    W: 9.7” (24.5 cm)
    W: 5.9” (14.9 cm)
    D: 2.6” (6.5 cm)
    - LVS34:
    W: 6.4” (16.2 cm)
    H: 3.1” (7.8 cm)
    D: 1.9” (4.8 cm)
    Weight:
    - GLS 10: 4.3 lbs (2.0 kg)
    - LVS34: 2.25 lbs (1.02 kg)
  • Power
    Power Input: 10-32 V
    Power Draw:
    - Typical: 21 W
    - Max: 58 W
    Fuse: 7.5 A
  • Connections
    2pin Power
    LiveScope Sonar Port
    Garmin Marine Network (Small)
