Garmin  |  SKU: GAR/0100196110

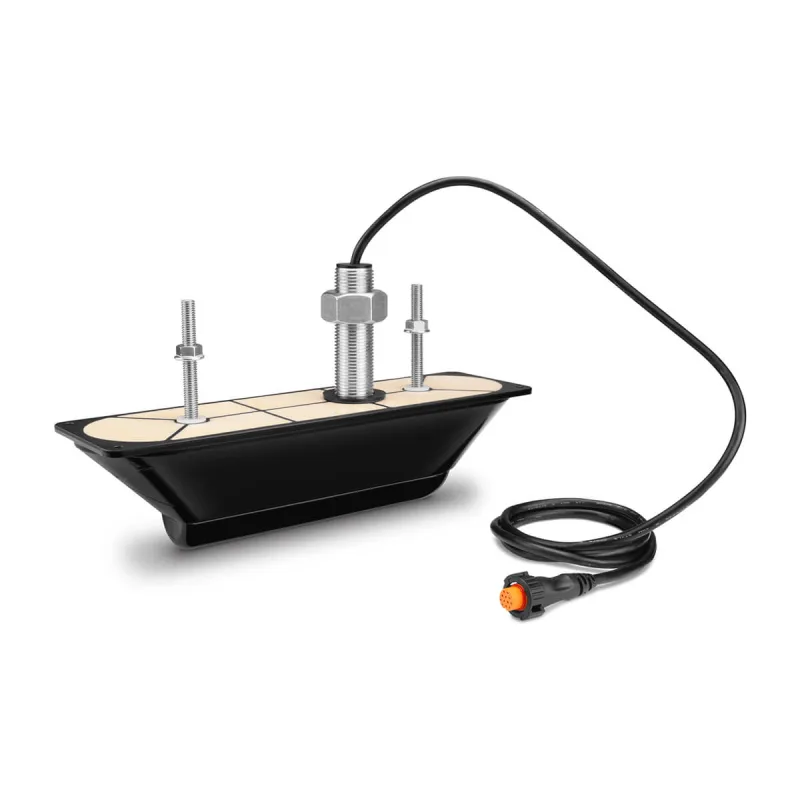

GT30-TH

500w ClearVu/SideVu Thru-Hull Transducer

$73499

Perfect for the shallow water fisherman who want CHIRP, ClearVü and CHIRP SideVü scanning sonar, this transom mount transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.

Transducer (Thru-Hull)
Barcode: 753759152802
7.0 lb
  • Product Series
    Garmin GT3x
  • Sonar
    Power: 500w
    Frequency:
    - ClearVu: 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
    - SideVu: 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
    Beam Width:
    - ClearVü: 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
    - SideVü: 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
    Max Depth (Fresh Water):
    - Traditional: 800'
    - ClearVü: 750'
    - SideVü: 500'
    Temperature: Yes
  • Connections
    Garmin 12pin (Orange)
  • Mounting
    Type: Thru-Hull
    Deadrise: 0º - 25º
  • Cable Length (Ft)
    20
