Garmin  |  SKU: GAR/010-10272-10

Dual Beam

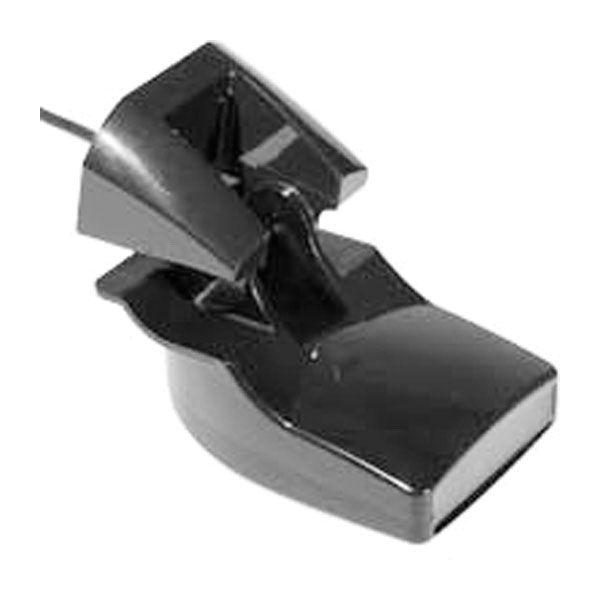

500w 200/50 kHz Transom Mount (Garmin 8pin)

Regular price $9999

This plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units.

The 500 W 8-pin transducer has a maximum depth of 1,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70 degree transom.


Barcode: 753759975364
4.0 lb
  • Sonar
    Power: 500W
    Frequency: 50/200 kHz
    Beam Width: 40°/10°
    Max Depth (Fresh Water): 1500'
    Temperature: Yes
  • Mounting
    Type: Transom Mount
    Transom: 0°-70°
  • Cable Length (Ft)
    30
  • Material
    Plastic
