Simrad  |  SKU: SIM/000-13918-001

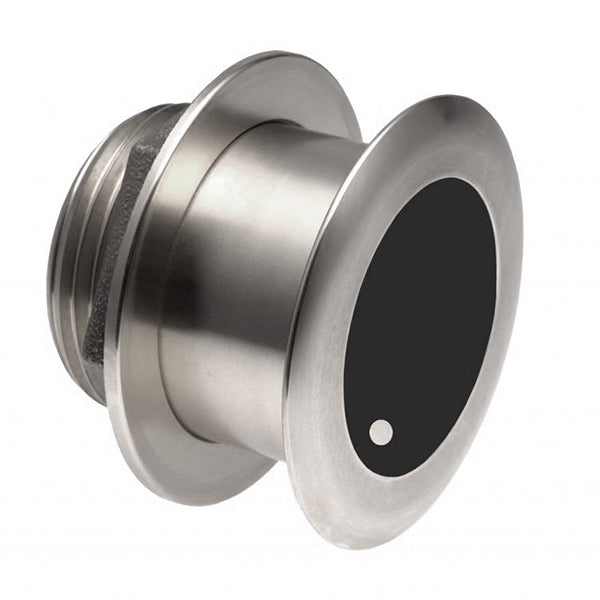

SS164 (20°)

1kW 200/50kHz SS Tilted Element Thru-Hull (Navico 9pin)

Regular price $1,42800
Selecting Transducer Tilt

The SS164 delivers 1kW of sonar power engineered specifically for metal-hull sportfishing boats. Its innovative Tilted Element™ technology positions ceramic arrays at an optimal angle within a flush-mount stainless steel housing, concentrating maximum energy directly below your vessel for superior target definition. Protruding less than a quarter-inch, this transducer sits safely on trailer rollers and bunks without risk of damage. Ideal for tournament anglers who demand high-performance fish-finding capability without the space requirements of traditional fairings.


Barcode: 9420024162736
11.0 lb

  • Product Series
    164
  • Model
    000-13918-001
  • Sonar
    Power: 1kW
    Frequency: 50/200 kHz
    Beamwidth: 22°x20°/6°x6°
    Max Depth: 1800'
    Temperature: Yes
  • Connections
    Navico (Simrad/Lowrance/B&G) xSonic 9pin Connector
  • Mounting
    Type: Tilted Element Thru-Hull
    Hole Size: 95mm or 3-3/4"
  • Physical
    Usable Shaft Length: 2.18" (55 mm)
    Weight: 6 lbs (2.7 kg)
  • Cable Length (Ft)
    39
  • Material
    Stainless Steel
