JL Audio  |  SKU: JLA/010-03365-00

MM55

Compact 3-zone Source Unit

Regular price $42999

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

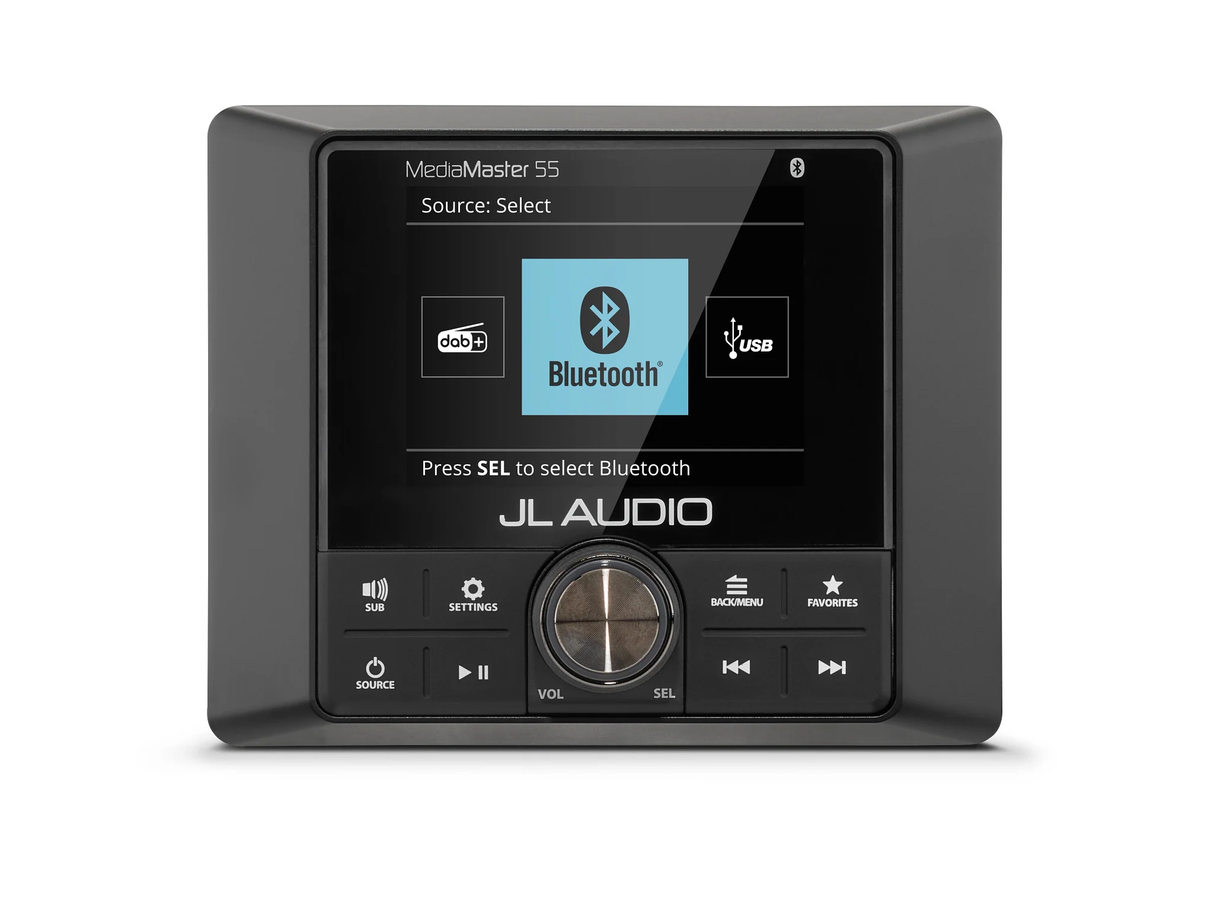

MediaMaster 55 is a premium, compact marine source unit engineered to deliver high-fidelity sound and advanced audio features for all your maritime adventures.

Constructed with a tough, water-resistant (IP67-rated) design, this single-chassis receiver features a bright 2.8-inch (71 mm) full-color display and an intuitive interface with backlit controls for easy operation day or night. A variety of source and media options are on board for uninterrupted listening of your favorite stations and playlists, including global radio tuners, a USB input, analog AUX input and streaming audio capabilities, courtesy of BLUETOOTH® wireless technology.

Audio output options include a robust 4-channel onboard amplifier, capable of powering your speakers with 100 watts (25-watts RMS x 4) of pure sonic delight. Nine channels of audiophile-quality preamp outputs from three separate audio zones are also included, each with a dedicated subwoofer output. Each zone includes an array of flexible audio options and is controlled by a configurable master volume knob for quick, on-the-fly adjustments, allowing complete command over different areas of your boat.

The MediaMaster 55 marine source unit also includes certified NMEA 2000® network connectivity, making it an ideal companion for use with your Garmin, Lowrance, Raymarine or Simrad multifunction display (MFD).

Specifications

  • Product Series
    MediaMaster
  • MPN
    010-03365-00
  • Physical
    Height: 3.74" (95 mm)
    Width: 4.65" (118 mm)
    Depth: 2.36" (60 mm)
  • Mounting
    Height: 3.15" (80 mm)
    Width: 3.74" (95 mm)
  • Amplifier Power
    Zone 1/2 : 25 W x 4
  • Power
    Input: 10 - 16v DC
  • Screen
    2.8" TFT LCD Backlighted
  • Connectivity
    Power Harness (Power, Ground, Dimmer, Remote Turn On)
    Speaker Harness (Zone 1/2 Speakers)
    Zone 1 w/ Sub (RCA)
    Zone 2 w/ Sub (RCA)
    Zone 3 w/ Sub (RCA)
    AUX
    AM/FM Antenna (Motorola)
    USB
  • Sources
    AM/FM
    Bluetooth (2.1+EDR)
    USB
    AUX
  • IP Rating
    IP67
  • Temp Range
    -4 F to +158 F (-20 C to +70 C)

Reviews (0)

In The Box

In The Box:

MM55
Speaker Harness
Power Harness
Screen Cover
Mounting Gasket
Mounting Hardware
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2



* ALL WARRANTY IS THROUGH MANUFACTURE *
