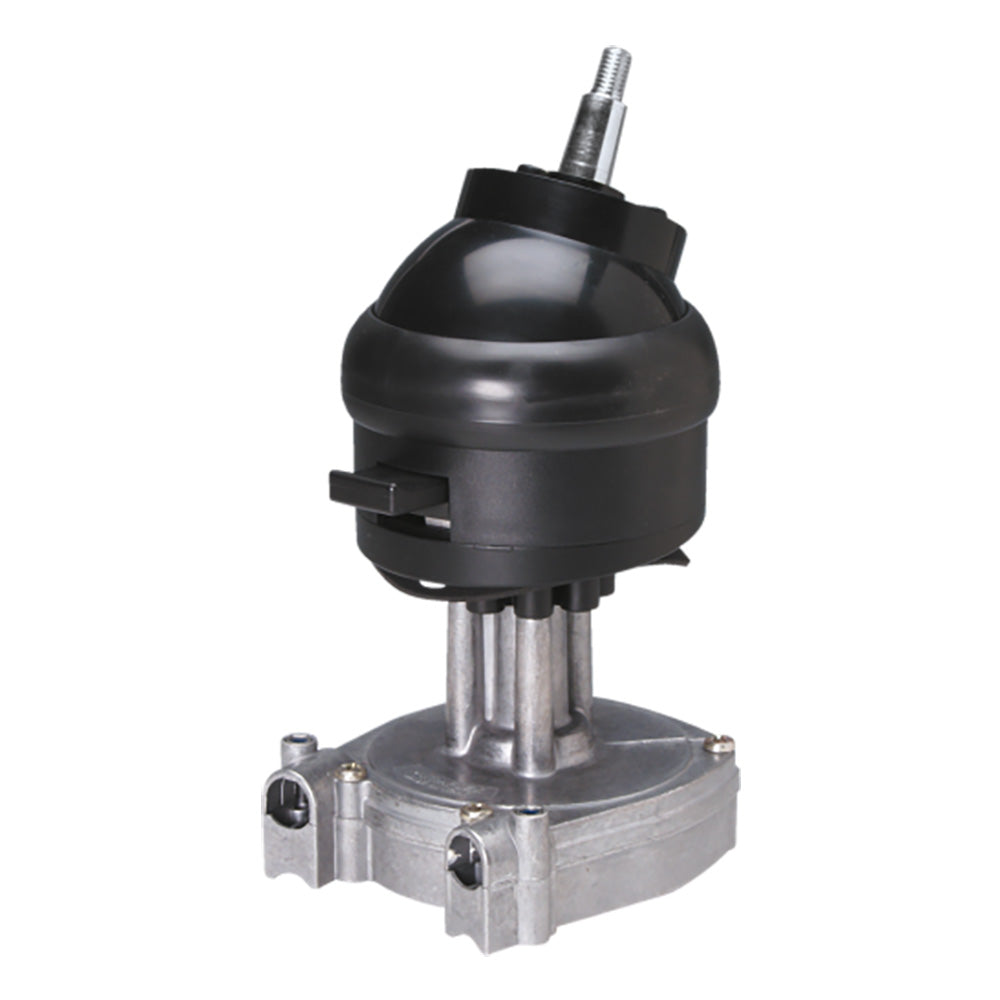

T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately
T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.
Features:
- X52 Tilt Mechanism sold separately
- Tilt range of 48° and five locking positions
- Fast connect, simple installation
- The tilt device eliminates under-dash movement
- Standard 3/4” tapered shaft – stainless steel
- All stainless steel cable output ends
- Corrosion resistant materials
- T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
- X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems
- For boats faster than 50 mph, our hydraulic steering systems are recommended
- Optional steering wheel
- Engine connection kits
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
Specifications
Specifications
Identification
| MPN | T83FC |
|---|---|
| Barcode | 702755021421 |
General
| M66 steering cable stroke | 228 mm (9") |
|---|---|
| Lock-to-lock steering wheel turns | Approx. 3,8 |
| Min. steering cable bend radius | 200 mm (7.9") |
Physical
| Max. dash depth | 25,4 mm (1") |
|---|---|
| Max. steering wheel diameter | 406 mm (16") |
