Hertz Audio  |  SKU: HTZ/78035431  |  Barcode: 8018823139007

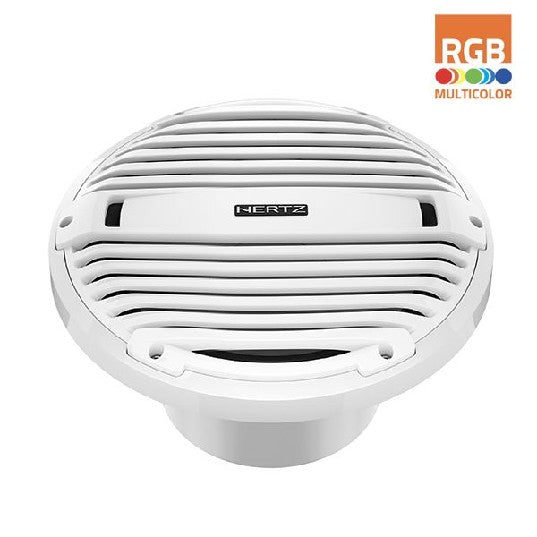

HMS-10-B4-LD-W

HMS Series White 10" Infinite Baffle 4Ω Subwoofer w/ RGB Lighting

Regular price $52999

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

The HMS 10 B long throw 10” marine subwoofer is engineered for infinite baffle application. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance. The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ) HMS 10 B4-LD-W is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the leadwire junction point.

Specifications

  • MPN
    78035431
  • Physical
    Overall Diameter: 10.91" (277 mm)
    Frontal Grilles Protrusion: 1.81" (46 mm)
    Weight: 11.24 lb / 5.1 kg
  • Mounting
    Infinite Baffle
    Mounting Hole Diameter: 9.06" (230 mm)
    Mounting Depth: 5.71" (145 mm)
  • Speaker/Subwoofer Specs
    Continuous Power Handling (RMS): 300 W
    Recommended Power (RMS): 100 - 350 W
    Free Air Resonance: 41 Hz
    Efficiency: 88 dB SPL @ 1 W / 1 m
    Impedance: 4Ω (4.500Ω)
    Total Speaker "Q" (Qts): 0.71
    Electrical "Q" (Qes): 0.76
    Mechanical "Q" (Qms): 11
    One-Way Linear Excursion (Xmax): 0.52 in / 13.5 mm
    Effective Piston Area: 50.11 sq in / 0.0323 sq m
  • Other
    LED RGB Lighting
  • Material
    Cone: Polypropylene with UV inhibitors
  • IP Rating
    IP65

Reviews (0)

In The Box

In The Box:

Subwoofer
Mounting Hardware
Documentation

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
