JL Audio  |  SKU: JLA/010-03083-00

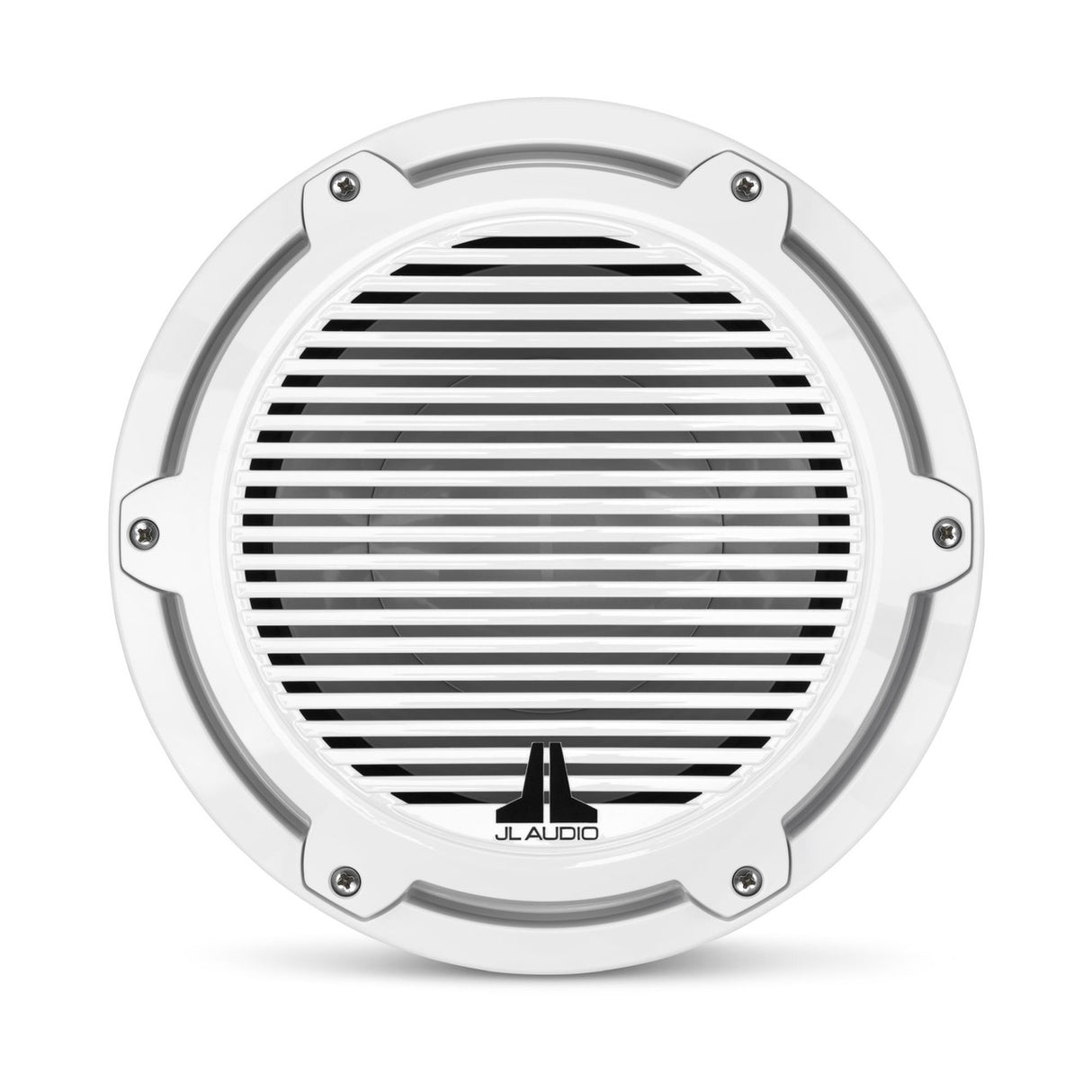

M6-10IB-C-GwGw-4

White Classic Grill 10" Infinite Baffle Subwoofer

$47999

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engin

White Classic Grill 10" Infinite Baffle Subwoofer

10" Subwoofer
Barcode: 699440936330
15.0 lb
  • Product Series
    JL M6
  • MPN
    010-03083-00
  • Old MPN
    93633
  • Power & Efficiency
    Continuous Power (RMS): 250 W
    Recommended Power (RMS) 75 - 250 W
    Frequency Range: Not Rated
    Free Air Resonance: 43.76 Hz
    Sensitivity (SPL @ 1 W/1 m): 86.1 dB
    Impedance: 4?
    Total Speaker "Q" (Qts): 0.840
    Electrical "Q" (Qes): 0.907
    Mechanical "Q" (Qms): 11
  • Physical
    Diameter: 10.75" (273 mm)
    Depth: 7.56" (192 mm)
  • Mounting
    Cutout: 8.875" (225 mm)
    Depth: 5.90" (150 mm)
    Grill Protrusion: 1.66" (42 MM)
    Bolt Hole Diameter: 9.70" (247 mm)
  • Materials
    Cone: Injection-molded, mica-filled polypropylene
  • Connections
    Speaker Connection: Spade Connectors
  • Water Rating
    Not Rated
