JL Audio  |  SKU: JLA/010-03285-00

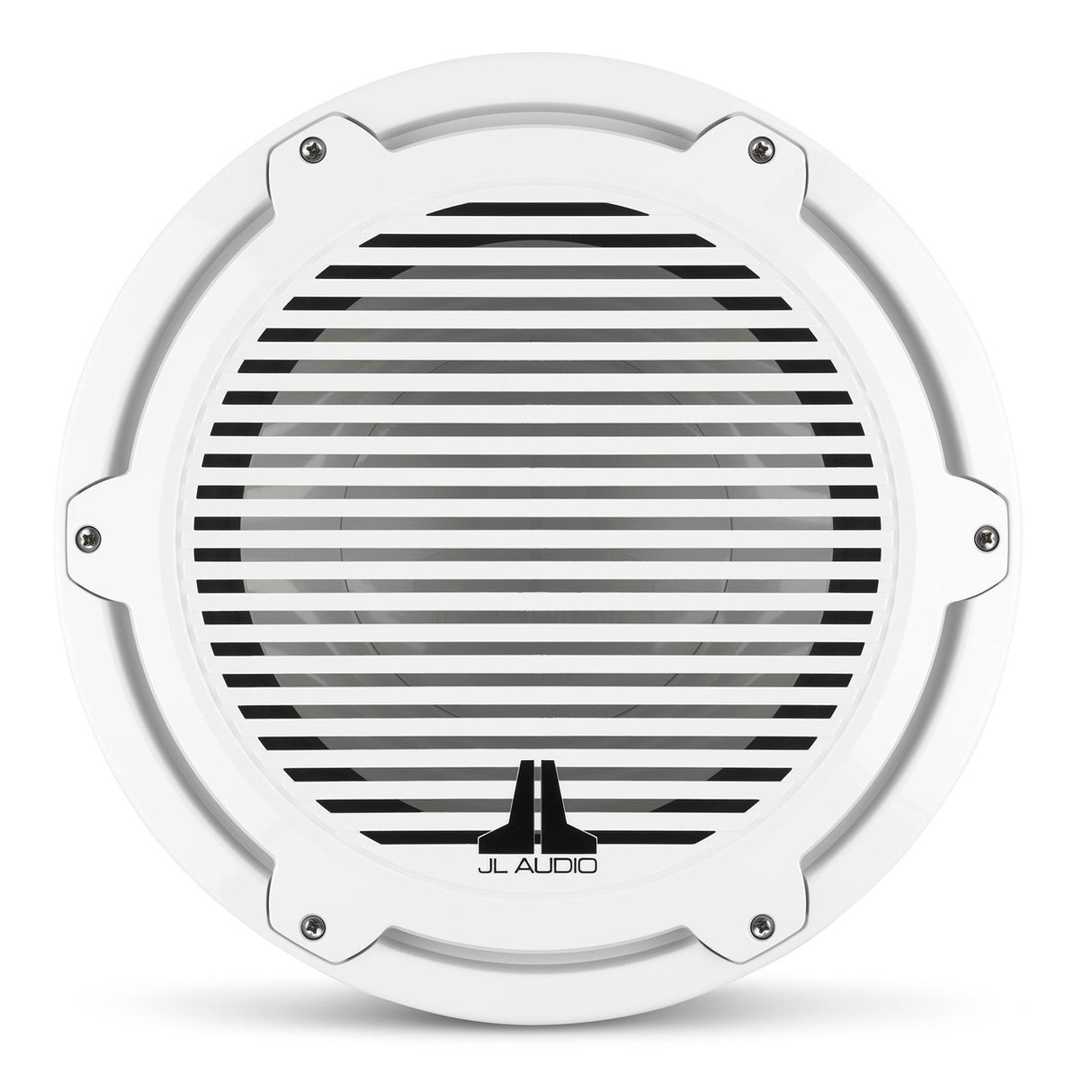

M7-12IB-C-GwGw-4

White Clasic Grill 12" Infinite Baffle Subwoofer

$1,04999
Color
Impedance

Engineered as the reference standard for marine subwoofer performance, the M7-12IB is capable of producing staggering amounts of jaw-dropping bass in infinite-baffle applications.

Built to withstand real-world marine duty, this M7-12IB is designed to ope

White Clasic Grill 12" Infinite Baffle Subwoofer

12" Subwoofer
Barcode: 699440936699
28.0 lb
  • Product Series
    JL M7
  • MPN
    010-03285-00
  • Old MPN
    93669
  • Power & Efficiency
    Continuous Power (RMS): 600 W
    Recommended Power (RMS) 200 - 600 W
    Frequency Range: Not Rated
    Free Air Resonance: 35.34 Hz
    Sensitivity (SPL @ 1 W/1 m): 86.7 dB
    Impedance: 4? (RE: 3.543?)
    Voice Coil Diameter: 4" (102 mm)
    Total Speaker "Q" (Qts): 0.791
    Elec
  • Physical
    Diameter: 14"" (356 mm)
    Depth: 9.39" (239 mm)
  • Mounting
    Cutout: 12.0625" (306 mm)
    Depth: 7.94" (202 mm)
    Grill Protrusion: 1.45" (37 MM)
    Bolt Hole Diameter: 12.813" (325 mm)
  • Materials
    Cone: Injection-molded, mica-filled polypropylene
  • Connections
    Speaker Connection: Spade Connectors
  • Water Rating
    Not Rated
