JL Audio  |  SKU: JLA/010-03289-00

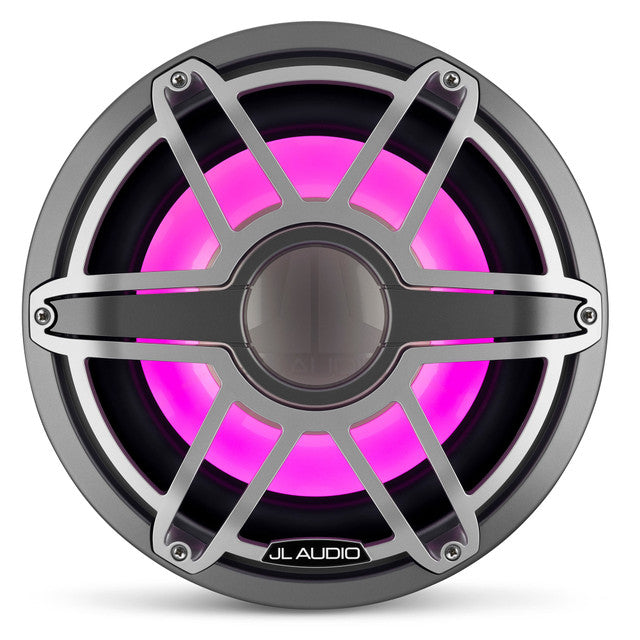

M7-12IB-S-GmTi-i-4

Gun Metal/Titanium Sport Grill 12" Infinite Baffle RGB Subwoofer

Regular price $1,14999
Color

Engineered as the reference standard for marine subwoofer performance, the M7-12IB is capable of producing staggering amounts of jaw-dropping bass in infinite-baffle applications.

Built to withstand real-world marine duty, this M7-12IB is designed to operate without a dedicated enclosure. It boasts a monstrous 4-inch voice coil and rugged suspension system to deliver outstanding linear excursion for high output and power handling.

The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.

M7-12IB is best used with amplifier power in the 200W — 600W range and is optimized to operate with a large volume of air behind it (at least 3 cu. ft. / 84.95 l).

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.



Gun Metal/Titanium Sport Grill 12" Infinite Baffle RGB Subwoofer

Barcode: 699440936743
0.07 lb
  • Product Series
    JL M7
  • MPN
    010-03289-00
  • Old MPN
    93674
  • Power & Efficiency
    Continuous Power (RMS): 600 W
    Recommended Power (RMS) 200 - 600 W
    Frequency Range: Not Rated
    Free Air Resonance: 35.34 Hz
    Sensitivity (SPL @ 1 W/1 m): 86.7 dB
    Impedance: 4? (RE: 3.543?)
    Voice Coil Diameter: 4" (102 mm)
    Total Speaker "Q" (Qts): 0.791
    Elec
  • Physical
    Diameter: 14"" (356 mm)
    Depth: 9.42" (240 mm)
  • Mounting
    Cutout: 12.0625" (306 mm)
    Depth: 7.94" (202 mm)
    Grill Protrusion: 1.48" (38 MM)
    Bolt Hole Diameter: 12.813" (325 mm)
  • Materials
    Cone: Injection-molded, mica-filled polypropylene
  • Connections
    Speaker Connection: Blade Terminals
    LED Conection: Flying Lead w/ 4 20awg Wires
  • Water Rating
    Not Rated
