JL Audio  |  SKU: JLA/010-03915-00

M6-8IB-L-GwSw-4

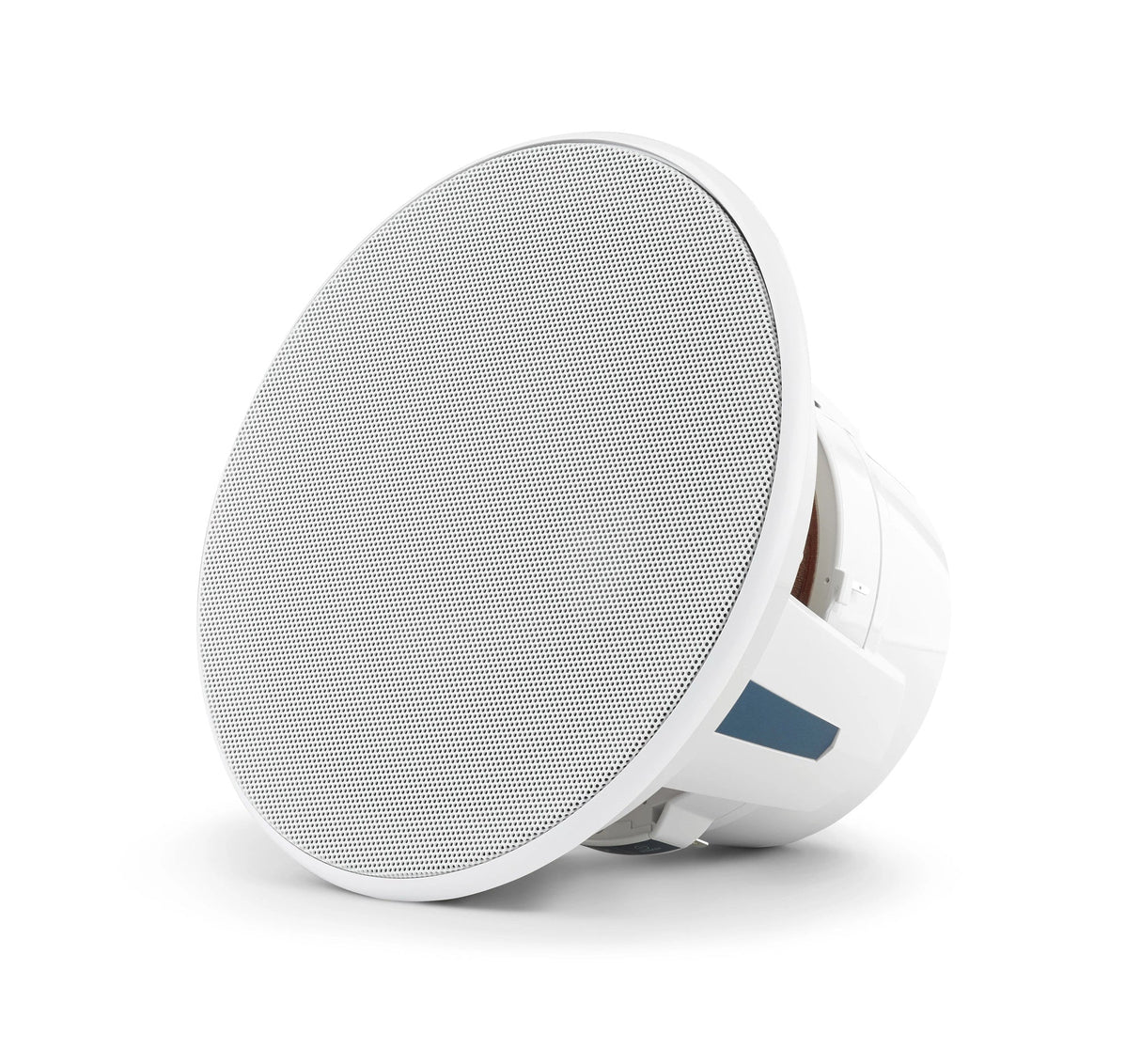

White Luxe Grill 8" Infinite Baffle Subwoofer

$49999
Color
Impedance

White Luxe Grill 8" Infinite Baffle Subwoofer

8" Subwoofer
Barcode: 699440939157
12.0 lb
  • Product Series
    JL M6
  • MPN
    010-03915-00
  • Old MPN
    93915
  • Power & Efficiency
    Continuous Power Handling (RMS): 200 W
    Free Air Resonance: 54.92 Hz
    Efficiency: 86.7 dB SPL @ 1 W / 1 m
    Impedance: 4Ω (2.993 Ω)
    Total Speaker "Q" (Qts): 0.787
    Electrical "Q" (Qes): 0.852
    Mechanical "Q" (Qms): 10.314
    One-Way Linear Excursion (Xmax): 0.53 in / 14 mm
    Effective Piston Area: 35.15 sq in / 0.0227 sq m
  • Physical
    Overall Diameter: 10.25" 260mm
    Bolt Hole Circle Diameter: 9.27" 235mm
    Frontal Grilles Protrusion: 0.48" 12mm
  • Mounting
    Infinite Baffle
    Mounting Hole Diameter: 8.625" 219mm
    Mounting Depth: 6.30" 160mm
  • Water Rating
    Not Rated
