Blue Sea Systems  |  SKU: BSS/1810  |  Barcode: 632085018108

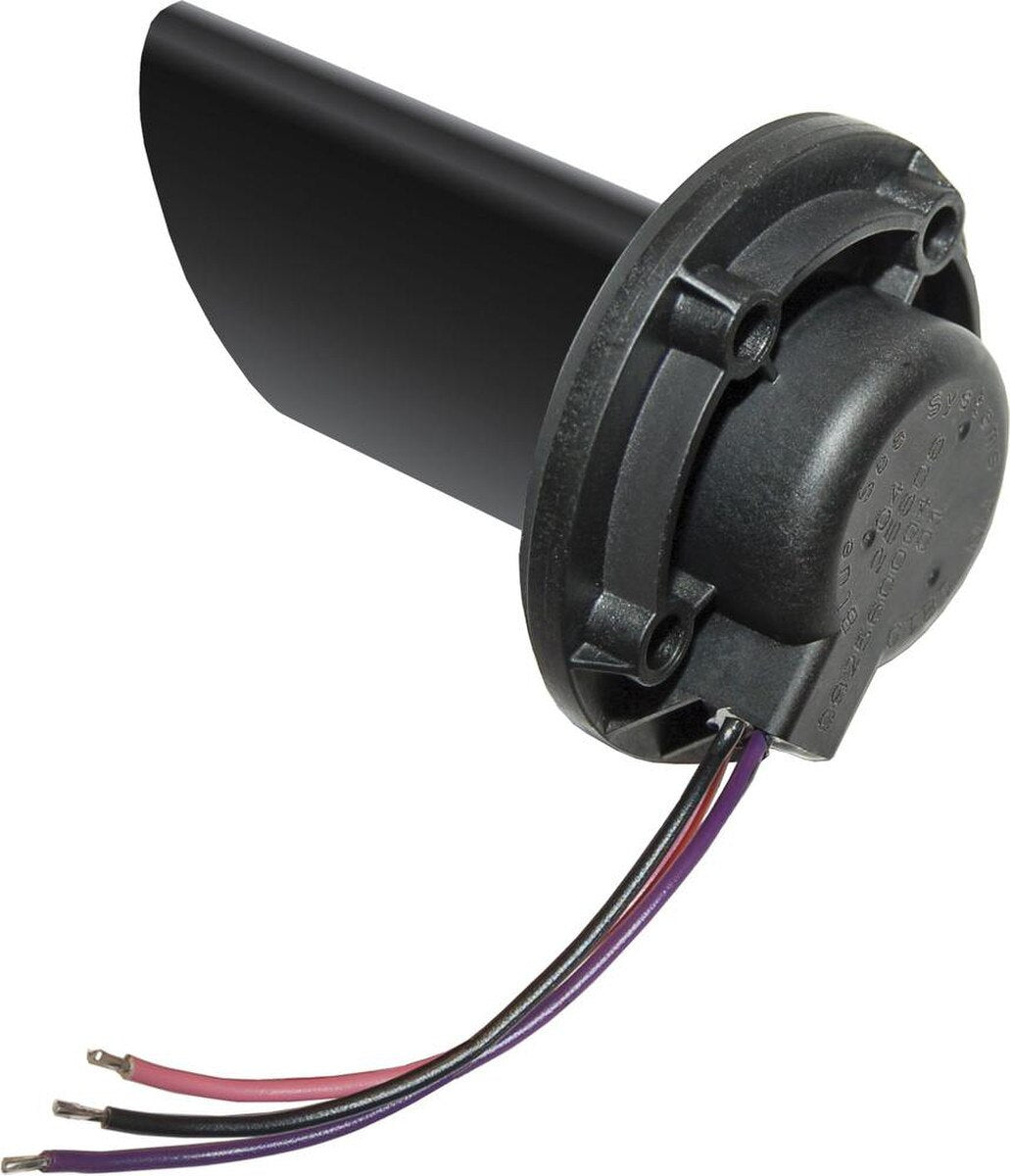

Tank Sender - Diesel/Water/Waste (32")

Diesel/Water/Waste Sending Unit for M2 Monitoring Systems

$15645

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description
Precise tank level monitoring for diesel, water, and waste applications. This 32" tank sender integrates seamlessly with the Vessel Systems Monitor VSM 422 PN 1800 for accurate, calibrated readings tailored to your specific tank. Built on SSI Technologies' proven Fluid-Trac® non-contacting technology, it eliminates mechanical wear points that lead to signal loss or failure. Advanced digital filtering automatically compensates for liquid sloshing in mobile tanks, delivering stable, reliable measurements even in rough conditions. Trust dependable fluid level data when you need it most.

Specifications
  • MPN
    1810-BSS
  • Physical
    Dimensions:
    Dia: 2.72" (69 mm)
    H: 0.89" (23 mm)
    Weight: 0.25 lbs (0.11 kg)
  • Power
    Voltage: 10-32v DC
    Draw: 40 mA @ 12v / 45 mA @ 24v
  • Other
    Limitations and considerations for mounting the ultrasonic tank senders:
    - Senders are calibrated to the VSM 422 and will not function with other monitors
    - Senders must be mounted 4" or greater distance from a tank side or baffle
    - Tank floor must not be sloped
    - Tanks must not be deeper than 24"
    - Sender must be mounted perpendicular to the surface of the liquid
    - The sender negative connection should be connected as directly as possible to the main negative bus.

Reviews (0)

In The Box

In The Box:

Sending Unit

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty:



* ALL WARRANTY IS THROUGH MANUFACTURE *
