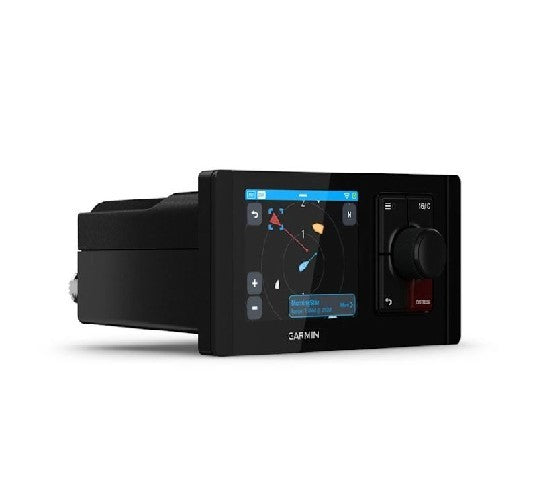

Garmin Signal 220 VHF Radio w/Built-In AIS Receiver

Name: Garmin Signal 220 VHF Radio w/Built-In AIS Receiver
Brand: Garmin
SKU: GAR/010-02951-01
Price: 999.99 USD
Availability: InStock

SKU: GAR/010-02951-01

$999⁹⁹

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

Signal 220 VHF Radio with Built-In AIS Receiver

Built-In AIS

Stay aware of the water with built-in AIS receive capabilities. This feature shows you range, course, speed, and the crossing situation of other AIS-equipped vessels around you to help you navigate.

Sleek Design

The compact and modern design features edge-to-edge glass and takes up minimal space at the helm.

Clear & Simple Communication

Eliminate unnecessary radio noise with automated squelch. If you miss a radio message, you can replay it with VHF audio playback. When you need to maintain watch on multiple channels, advanced watch modes make it easy.

Stay Connected

Quickly transmit a distress signal to nearby vessels with the distress button, which uses Class D DSC to automatically send crucial information that can help emergency responders. You can also use the intuitive DSC features to quickly initiate contact with other AIS-equipped vessels; simply select the vessel on the AIS plotter view, and call them with a tap of a button.

Easy To Update

Configure the radio, program the MMSI number, and get over-the-air software updates with the ActiveCaptain® smartphone app via built-in Wi-Fi® connectivity.

Installation Is A Breeze

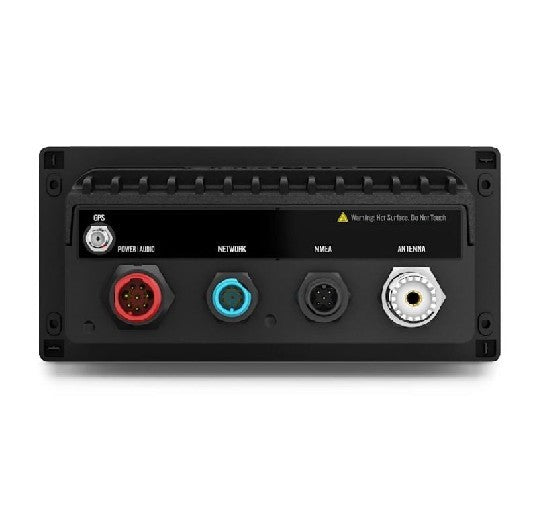

Installation is simple since VHF/DSC/AIS features only require a single VHF antenna, and the GPS antenna/receiver is built into the unit. Chartplotter integration is seamless via the NMEA 2000® network and Garmin BlueNet™ Network.

VHF Features:

All U.S., Canadian, and International marine channels, NOAA weather channels
Adaptive noise cancellation
Audio record and playback
Auto squelch
Dual/Tri watch
Presets watch
NOAA weather alert
NOAA weather watch
Loud hailer
Loudhailer listen back
Intercom support
AIS target display
AIS collision and MOB alarms

Specifications

Identification

MPN	010-02951-01
Barcode	753759332372

Physical

Unit size	Head Unit: 75 x 160 x 104 mm (3.0" x 6.3" x 4.1")
Weight	Head Unit: 655 g (1.45 lbs), Fist Mic: 245 g (0.54 lbs)
Display Size	3.5" (89 mm)

General

Fist Mic	100 x 60 x 31 mm (3.9" x 2.4" x 1.2")
Water rating	IPX7
Display Type	color IPS LCD, capacitive touch
Display resolution	640 x 480 pixels
Operating temperature	–20° to 55° C (–4° to 131° F)
Inland waterways (ATIS)	yes
Backlight	1,000 nits

Electrical

VHF transmit power (max)	25 W, 1 W (high, low)
Operating voltage	9.6 - 32 VDC

Certifications & Protection

Multi-language interface	yes

Reviews (0)

In The Box

In The Box:

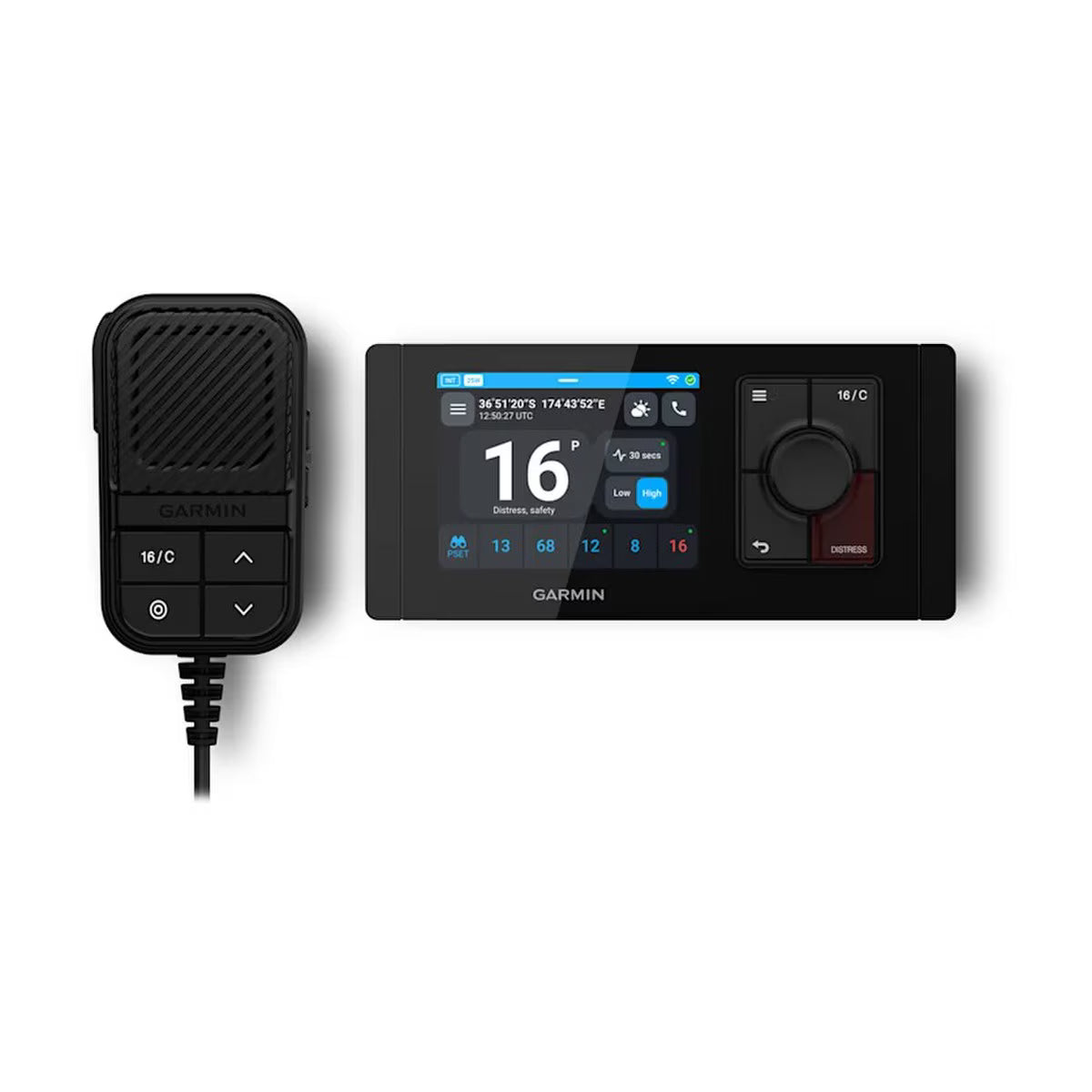

Garmin Signal™ VHF 220 head unit
Fist mic
Sun cover
Head unit power and external audio cable with fuse (2 m)
Fist mic power cable with fuse (2 m)
Drop cable for NMEA 2000® network (2 m)
Mounting hardware
Mounting template
Documentation

Package Dimensions:

10" x 9" x 8"

Available Method: Ground
