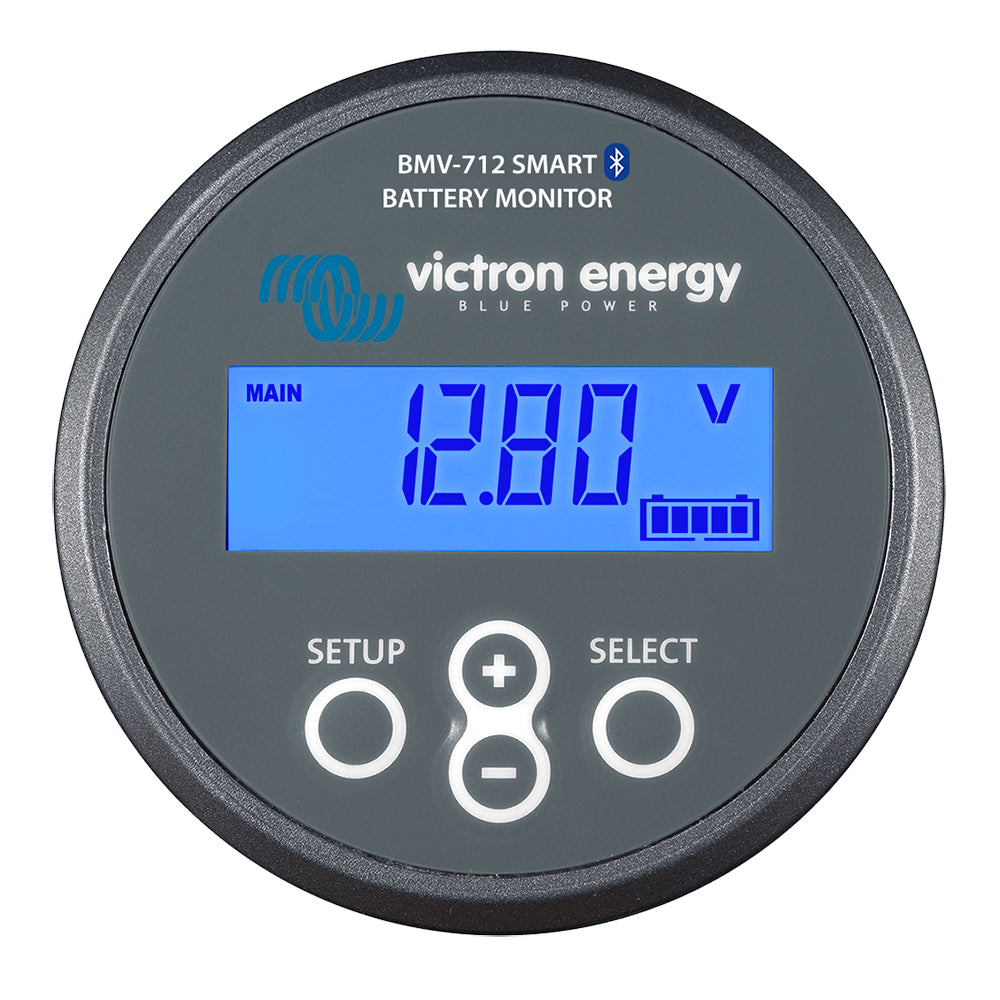

Victron Smart Battery Monitor - BMV-712 - Grey - Bluetooth Capable
Description
Description
Smart Battery Monitor - BMV-712 - Grey - Bluetooth Capable
Features:
- Bluetooth inside With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.
- Midpoint voltage monitoring One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information. We recommend our Battery Balancer (BMS012201000) to maximize service life of series-connected lead-acid batteries.
- Bi-stable alarm relay Prevents increased current draw in case of an alarm.
Specifications
Specifications
Identification
| MPN | BAM030712000R |
|---|---|
| Barcode | 8719076037798 |
General
| MPN | BAM030712000R |
|---|---|
| Barcode / EAN | 8719076037798 |
Electrical
| Supply / Aux Voltage Range | 6.5 - 70 VDC |
|---|---|
| Current Measurement Accuracy | ± 0.4% |
| Current Measurement Resolution | 0.01 A (10 mA) |
| Voltage Measurement Accuracy | ± 0.3% |
| Voltage Measurement Resolution | 0.01 V |
| Current Draw (Backlight Off) | < 1 mA |
Monitoring
| Temperature Measurement Range | -20 to +50°C |
|---|---|
| Temperature Accuracy | ± 1°C |
| Connectivity | Bluetooth Smart built-in (VictronConnect app) |
Physical
| Front Bezel | 69 x 69 mm |
|---|---|
| Depth | 52 mm / 31 mm (with shunt cable) |
| Enclosure | IP55 (not intended for outdoor use) |
| Operating Temperature Range | -40 to +50°C |
