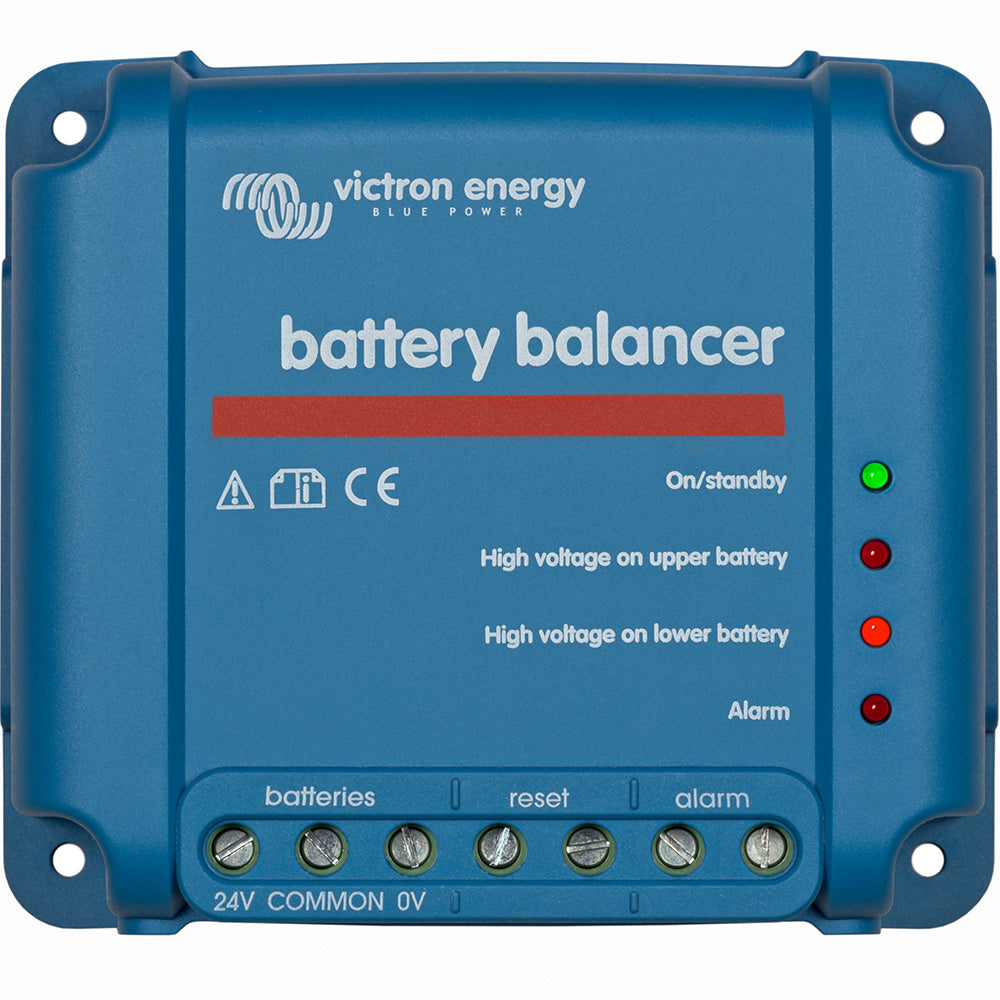

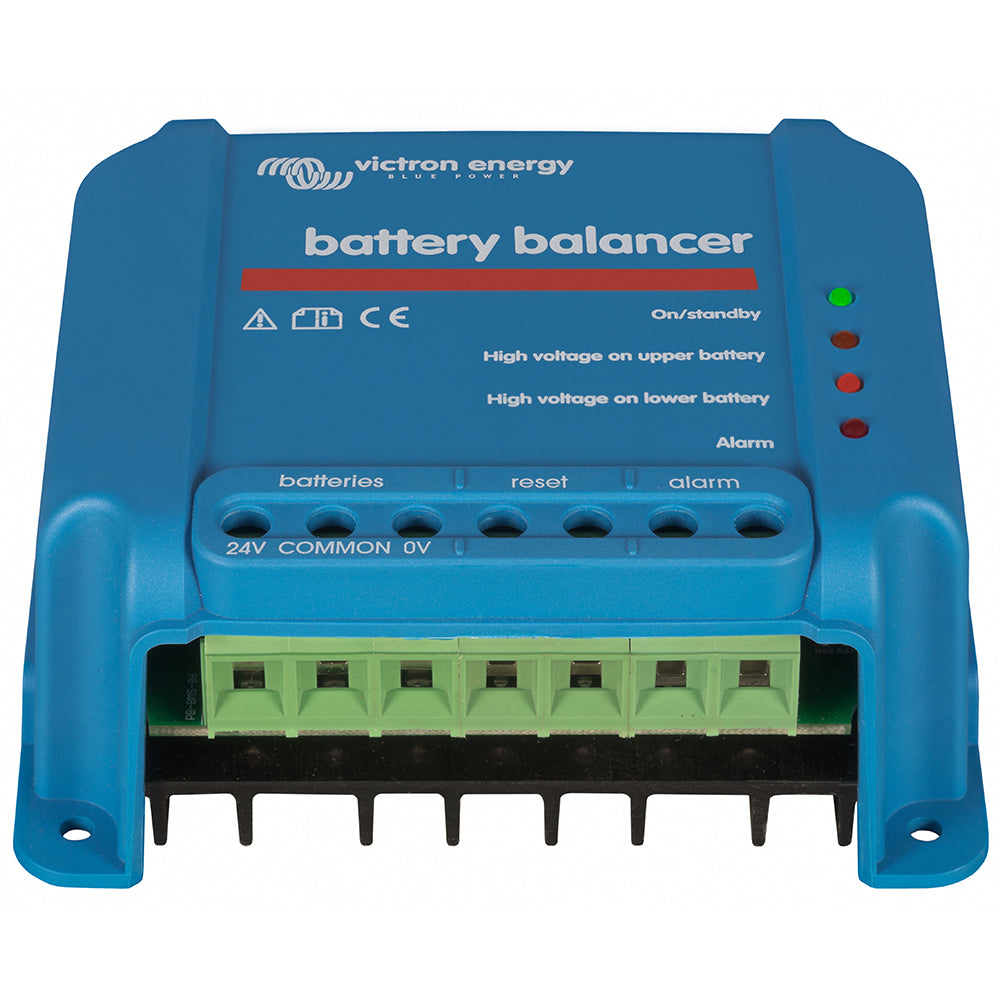

Victron Battery Balancer
Description
Description
Battery Balancer (Will not work on 36V Bank)
The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.
If needed, several balancers can be paralleled. A 48V battery bank can be balanced with three Battery Balancers.
Please contact your dealer for any returns, repairs or support issues related to this product.
Specifications
Specifications
Identification
| MPN | BBA000100100 |
|---|---|
| Barcode | 8719076020950 |
General
| MPN | BBA000100100 |
|---|---|
| Barcode | 8719076020950 |
Electrical
| Activation Threshold | Activates when a 24V bank's charge voltage exceeds ~27V (i.e. >13.5V per 12V battery) |
|---|---|
| Balancing Current | Draws up to 1A from the highest-voltage battery |
| Battery Support | 2x series-connected 12V batteries per unit; 3 units for a 48V bank; multiple units can be paralleled for larger banks |
Physical
| Dimensions (HxWxD) | 50 x 210 x 150mm (1.97 x 8.27 x 5.91 in) |
|---|---|
| Weight | 0.32kg (0.7 lb) |
