Abyss Battery 24v 100ah LifePO4 Lithium Battery
Description
Description
Tired of having to constantly recharge your trolling motor battery? What about that lingering fear of your battery dying in the middle of your fishing trip?
Swap your unreliable trolling batteries for a powerful ABYSS® 24V 100Ah Group 49 Battery. This single lithium battery is compact, lightweight, and will free up storage space on your boat by replacing two 12 volt Lead-acid or AGM group 31 batteries in series.
Whether you’re trolling in calm weather or fighting the wind, this battery will back you up even with load-heavy consumption. Ideal for deep cycle applications in diverse marine environments, seasons, and temperatures, The ABYSS® 24V 100Ah Lithium Trolling Motor Battery gives you a long and steady draw to last even for multi-day fishing trips.
Specifications
Specifications
Identification
| MPN | AB-24V100-BT |
|---|---|
| Barcode | 785034601668 |
24V 100Ah Battery Datasheet
| Nominal Voltage | 24V |
|---|---|
| Nominal Capacity | 100Ah |
| Parallel Connection | Max. 4units |
| Serial Connection | Max. 2units |
| BMS | 8S100A |
| Bluetooth | Android/iOS |
| Heat | Yes |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp |
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD |
| Self Discharge | Less than 3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 98-100% @1C |
CHARGE SPECIFICATIONS
| Charge Voltage | 28.8±0.4V |
|---|---|
| Standard Current | 20A |
| Fast Current | 50A |
DISCHARGE SPECIFICATIONS
| Standard Current | 20A |
|---|---|
| Max. Con. Current | 100A |
| Peak Current | 700A(300ms) |
| Cut-off Voltage | 20V |
TEMPERATURE SPECIFICATIONS
| Charge Temp | 0°C to 55°C (32°F to 131°F) |
|---|---|
| Discharge Temp | -20°C to 60°C (-4°F to 140°F) |
| Storage Temp | -5°C to 45°C (23°F to 113°F) |
MECHANICAL SPECIFICATIONS
| Dimensions | 19.0 x 6.69 x 9.44 in (490×171×240mm) (Group 49) |
|---|---|
| Approx Weight | 22 kg |
| Terminal Type | M8 |
| Case Color/material | Black Plastic case (ABS) |
| IP Rating | IP65 |
| Cell Type | Cylindrical LiFePO4 cell |
| Cell holder | Yes |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
Abyss Battery

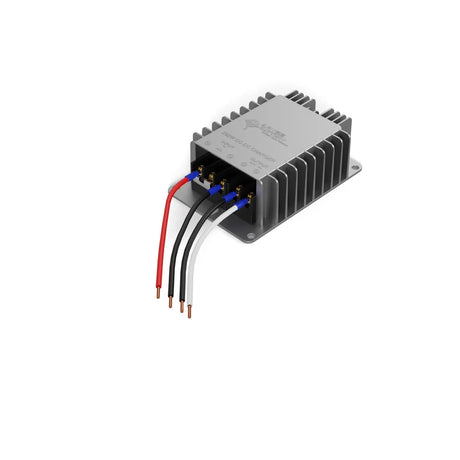

Abyss Battery 24v 10A DC-DC Converter
