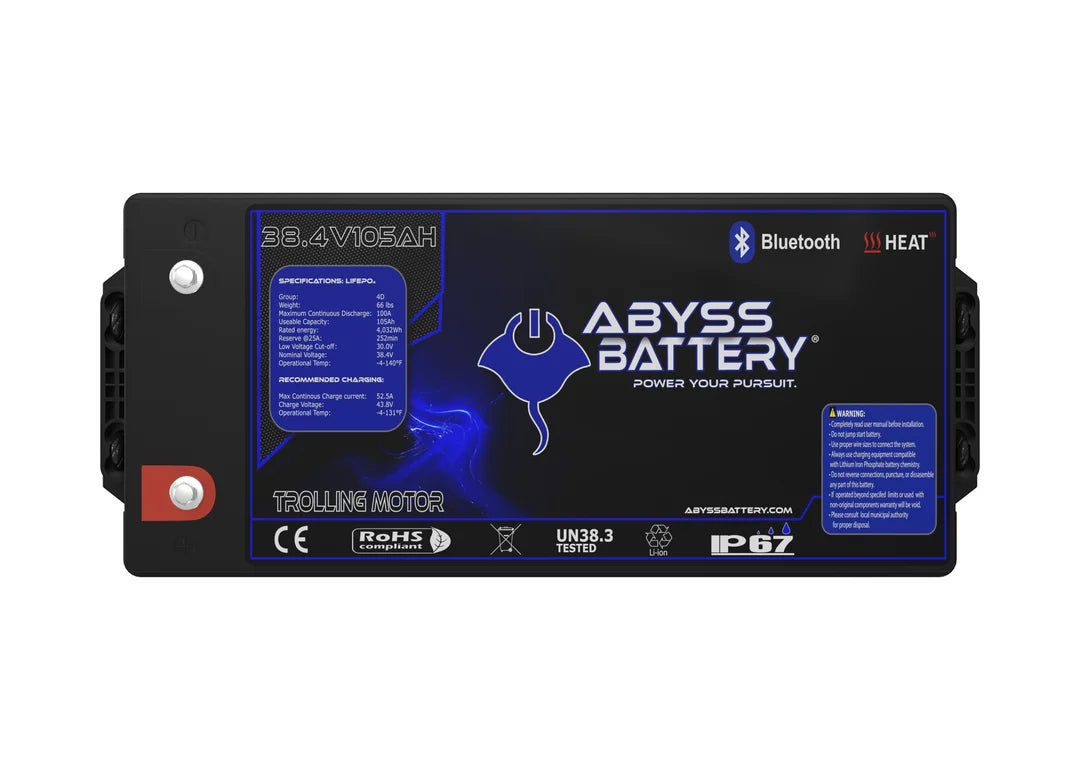

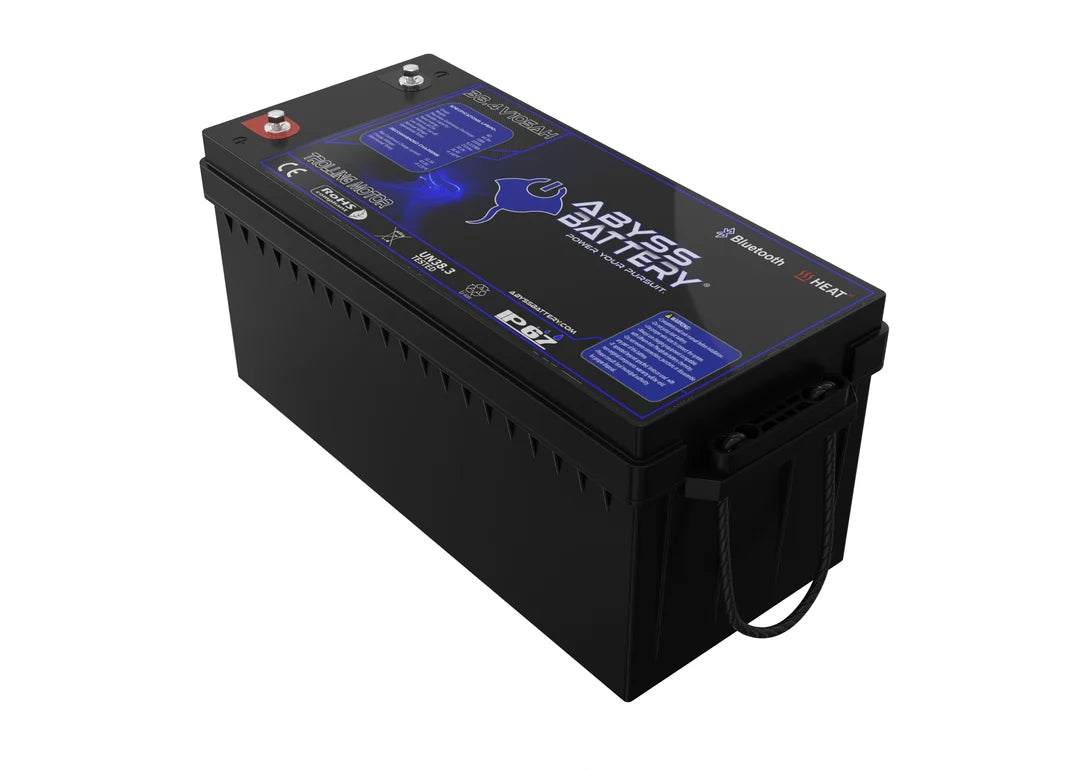

Abyss Battery 36v 105ah LifePO4 Lithium Battery

Name: Abyss Battery 36v 105ah LifePO4 Lithium Battery
Brand: Abyss Battery
SKU: ABY/AB-36V105-BT
Price: 2799.95 USD
Availability: InStock

SKU: ABY/AB-36V105-BT

$2,799⁹⁵

Description

Tired of having to constantly recharge your trolling motor battery? What about that lingering fear of your battery dying in the middle of your fishing trip?

Swap your unreliable trolling batteries for a powerful ABYSS® 36V 105Ah Lithium Trolling Motor Battery. This single group 4D lithium battery is compact, lightweight, and will free up storage space on your boat by replacing three 12 volt Lead-acid or AGM group 31 batteries in series.

Specifications

Identification

MPN	AB-36V105-BT
Barcode	785034601699

36V 105Ah Battery Datasheet

Nominal Voltage	38.4V
Nominal Capacity	105Ah
Parallel Connection	Maximum 4 units
Series Connection	No
Bluetooth Management System (BMS)	12S 100A (Available on Android/iOS)
Charge Voltage	43.2±0.6
Standard Charge Current	60A
Fast Charge Current	100A
Max. Continuous Discharge Current	100A
Peak Discharge Current	200A (10s)
Discharge Cut-off Voltage	30V
Cycle Life	4000 cycles @ 95% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD
Self Discharge Rate	Less than 3% per month
Charge Efficiency	100% @0.2C
Discharge Efficiency	98-100% @1C
Operating Charge Temperature Range	-20°C to 55°C (-4°F to 131°F)
Operating Discharge Temperature Range	-20°C to 60°C (-4°F to 140°F)
Storage Temperature Range	0°C to 45°C (32°F to 113°F)

Physical Specifications

Dimensions	20.67" x 9.45" x 8.66" in (525 x 240 x 220mm, Group 4D)
Approximate Weight	65.85 lbs (29.87 Kg)
Terminal Type	M8
Case Color/Material	Black Plastic case (ABS)
IP Rating	IP67
Cell Type	Prismatic LiFePO4 (EVE 105Ah) UL Cell
Cell Holder	Yes

Additional Information

Features	Bluetooth connectivity for monitoring via Android and iOS devices; Built-in internal heating for cold weather performance
Certifications	UL 1642, IEC62133, IEC62619, CE, UN38.3, ROHS
