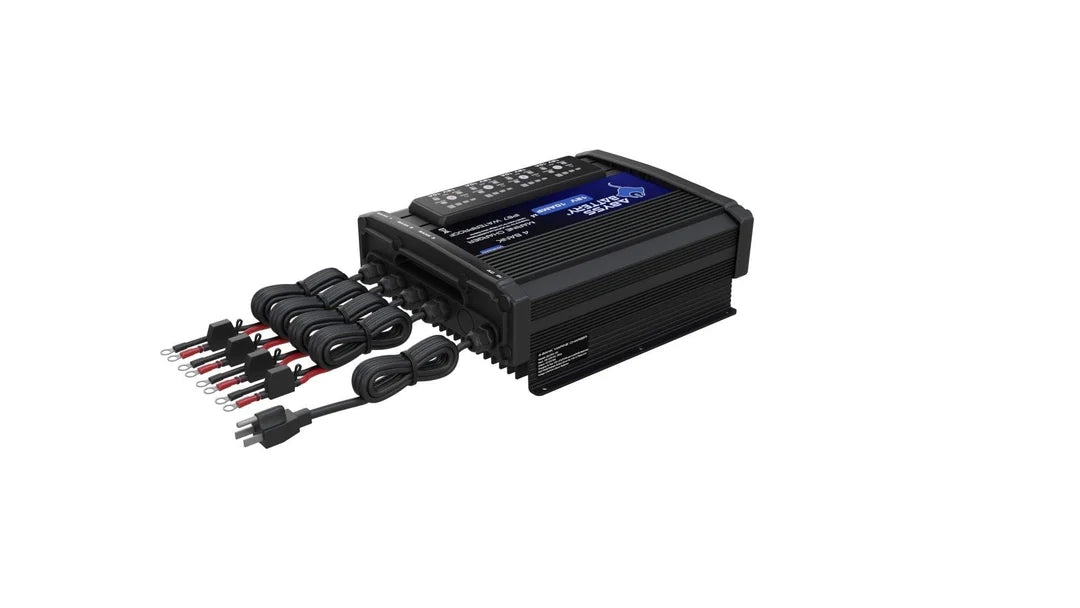

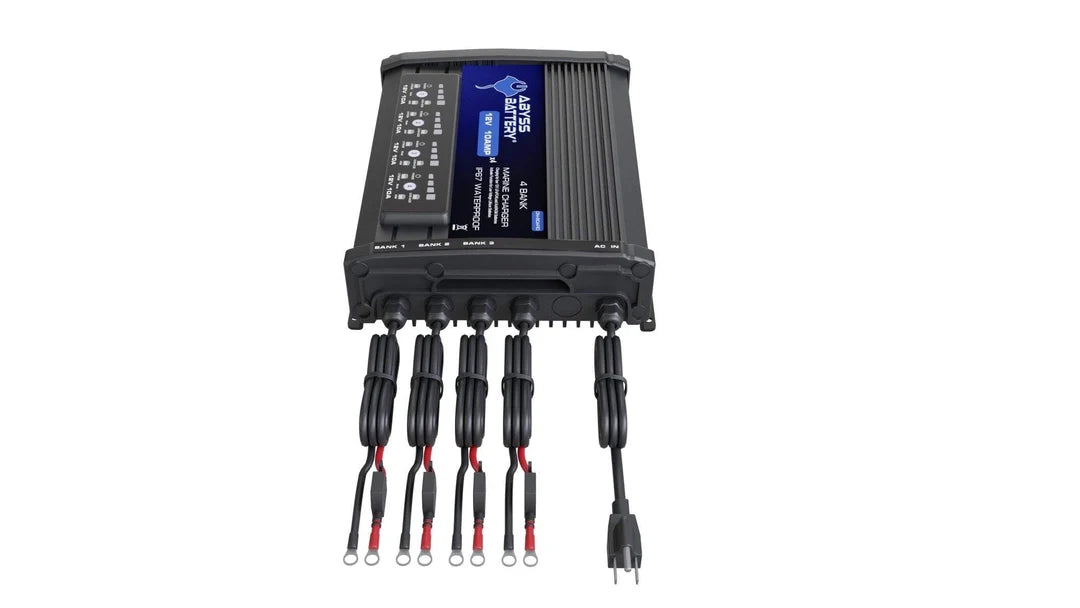

Abyss Battery 12v 4-Bank Battery Charger
Description
Description
Introducing the ABYSS® 4 Bank 12V On-Board Marine Battery Charger - a marine companion that breathes new life into your battery. This cutting-edge charger has been meticulously designed to infuse power into your 12V LiFePO4, Lead acid, or AGM batteries with the simple selection of a mode. Staying informed is no longer a hassle. With our Power, Battery Type, and Charging Status LED Indicators, you'll always know your battery's condition. This charger provides up to 10A of charge for each bank, delivering a total of 40A, and also features a pulse wake up mode for low voltage lithium batteries.
Specifications
Specifications
Identification
| MPN | AB-CRG-12V-4B |
|---|---|
| Barcode | 785034601927 |
ON-BOARD Battery Chargers
| Model | AB-CRG-12V-4B |
|---|---|
| Voltage | 12V |
| Output | 4x12V/10A |
| Product Size | 11.9" x 9.6" x 3.8" 304 x 245 x 99mm |
| Weight | 17 lbs (7.7 kg) |
| Lead Length | 6' (72 in.) (183 cm) |
| Charging Battery Type | Each bank has one MODE button to choose charging battery type: 12V LiFePO4, 12V Wet, 12V AGM |
FOR ALL CHARGERS (if applicable)
| LED Indicators | Power & Battery Type & Charging Status LED Indicators |
|---|---|
| Activate Function | Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function) |
| Full Cut-off Voltage | 14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery & 28.8V-29.4V for 24V Lithium Battery & 43.3V-44.2V for 36V Lithium Battery |
| Cooling Type | Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation |
| Ingress Protection | Filled with pure epoxy resin for high waterproof level IP67 |
| Circuit Protection | Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection |
| Working Temperature Range | -10°C~40°C |
| Nominal Working Temperature | 25°C |
| Relative Humidity | 5%~95% |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
Abyss Battery

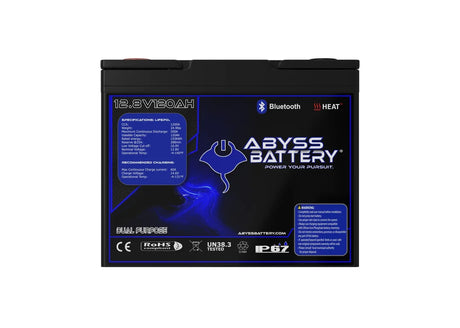

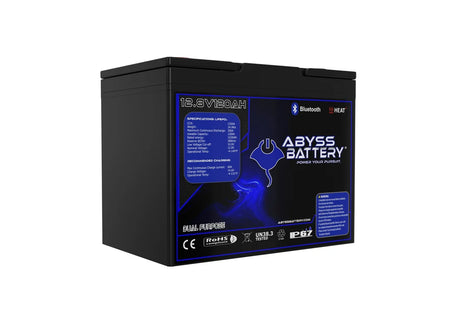

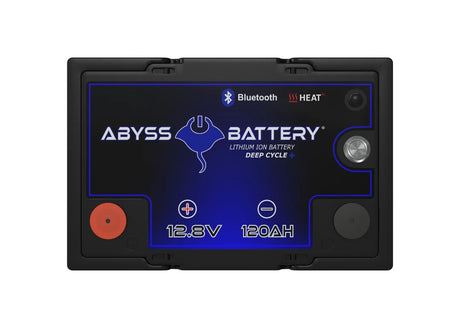

Abyss Battery 12v 120ah LifePO4 Lithium Battery
AB-12V120-BT
Abyss Battery

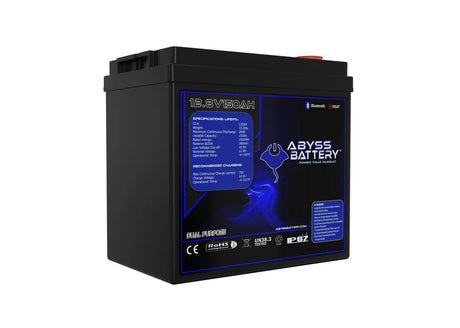

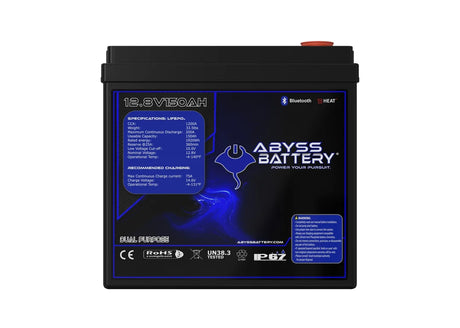

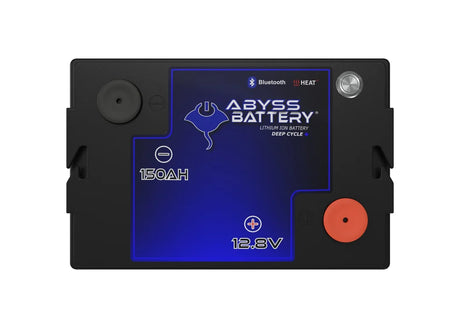

Abyss Battery 12v 150ah LifePO4 Battery
AB-12V150-BT
Abyss Battery
Abyss Battery 12v 240ah LifePO4 Lithium Battery
AB-12V240-BT
Abyss Battery
Abyss Battery 12v 350ah LifePO4 Lithium Battery
AB-12V350-BT
Abyss Battery

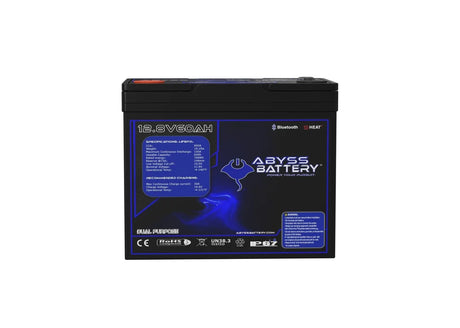

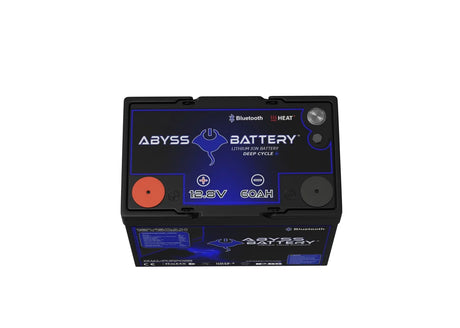

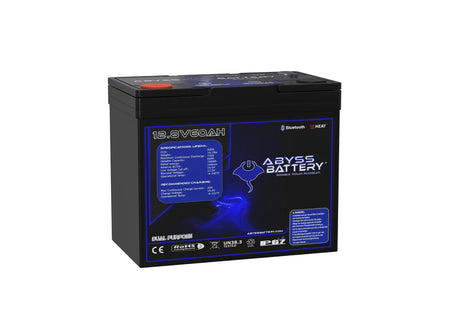

Abyss Battery 12v 60ah LiFePO4 Lithium Battery
