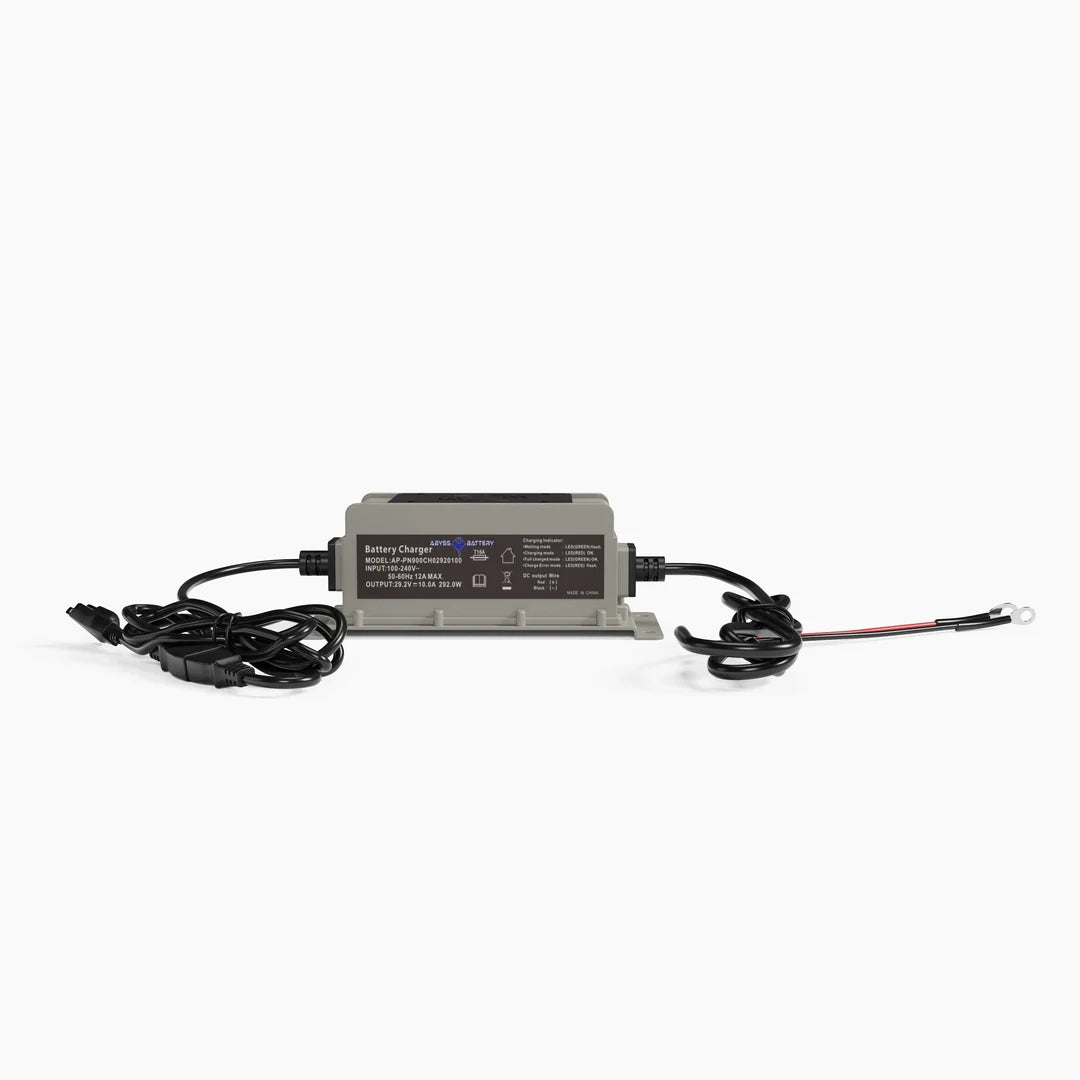

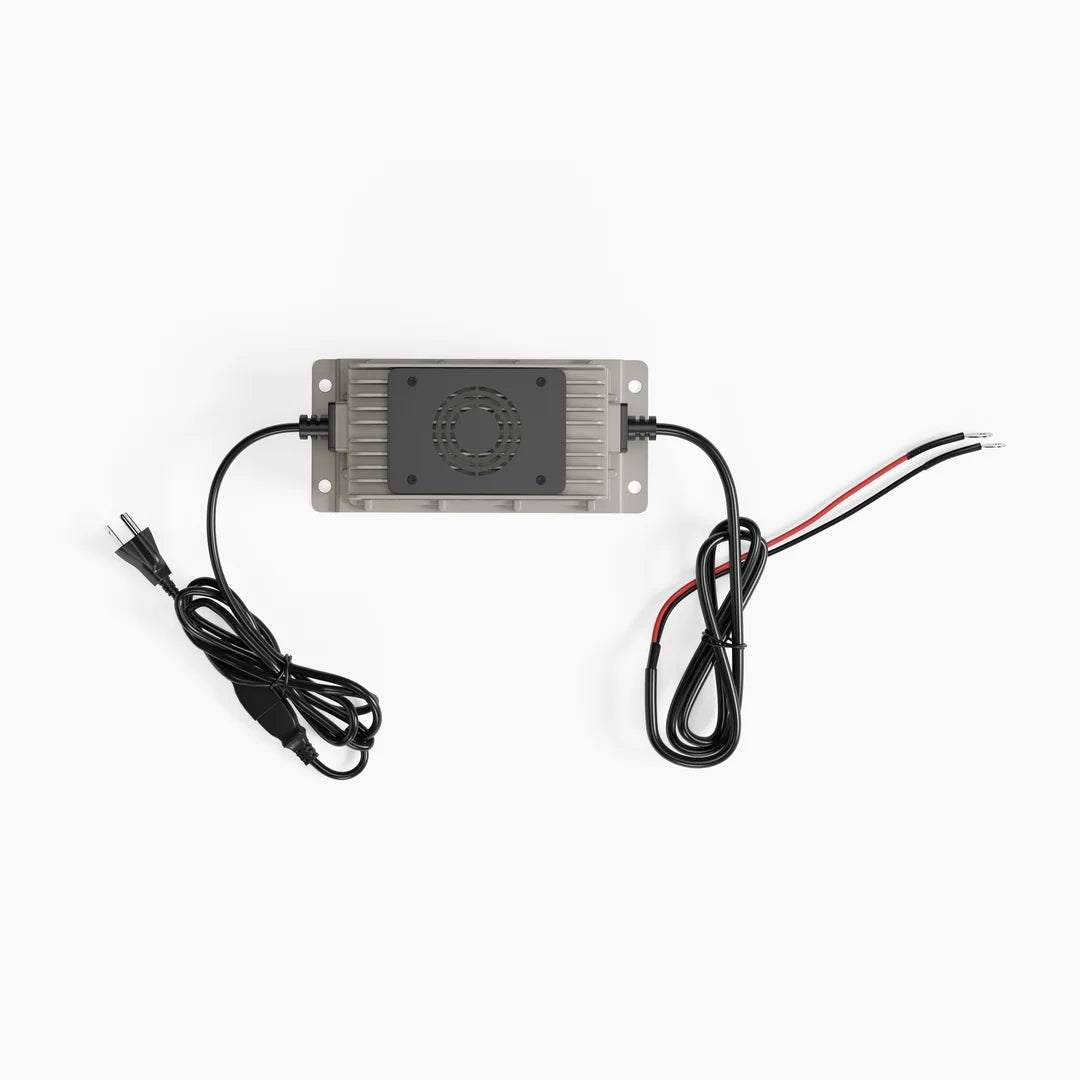

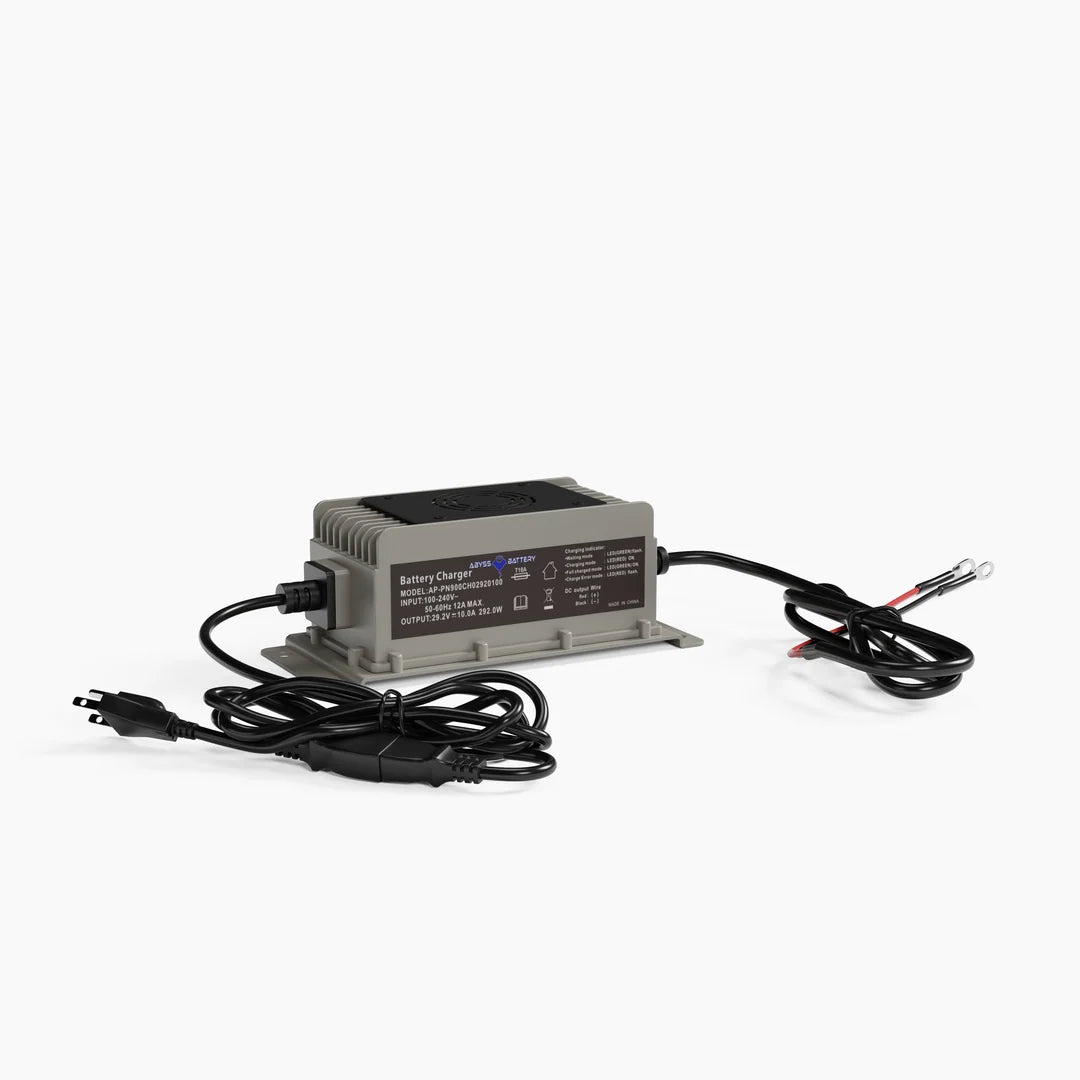

Abyss Battery 24v 10A High Precision Battery Charger
Description
Description
Experience longer run times and shorter charge times when you use our On-Board 24V High Precision Lithium Charger. Get the quickest, most intelligent, and efficient charge for your battery. Specifically designed to charge your Abyss Battery® 24V Lithium Trolling Motor Battery, this charger offers users extended battery life and reliability with its built-in protection features.
Note: The 20A version of this charger is recommended for the 24V 110Ah trolling motor battery and is slightly larger while having a different appearance compared to the 10A version.
Specifications
Specifications
Identification
| MPN | AB-CRG-24V10A |
|---|
ON-BOARD Battery Chargers
| Model | AB-CRG-24V10A |
|---|---|
| Voltage | 24V |
| Output | 24V/10A |
| Product Size | 7.5" x 5" x 2.5" 190 x 127 x 63mm |
| Weight | 3.3 lbs (1.5 kg) |
| Lead Length | 3' (36 in.) (91.4 cm) |
| Charging Battery Type | 24V LiFePO4 Batteries |
FOR ALL CHARGERS (if applicable)
| LED Indicators | Power & Battery Type & Charging Status LED Indicators |
|---|---|
| Activate Function | Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function) |
| Full Cut-off Voltage | 14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery & 28.8V-29.4V for 24V Lithium Battery & 43.3V-44.2V for 36V Lithium Battery |
| Cooling Type | Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation |
| Ingress Protection | Filled with pure epoxy resin for high waterproof level IP67 |
| Circuit Protection | Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection |
| Working Temperature Range | -10°C~40°C |
| Nominal Working Temperature | 25°C |
| Relative Humidity | 5%~95% |
