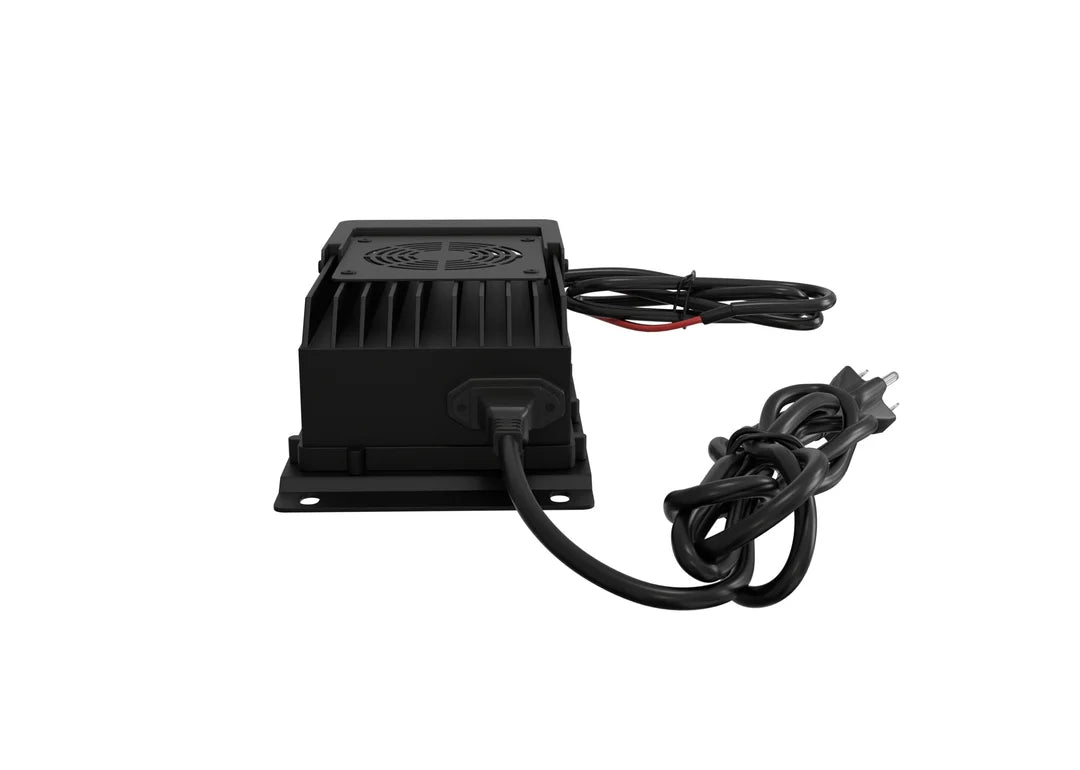

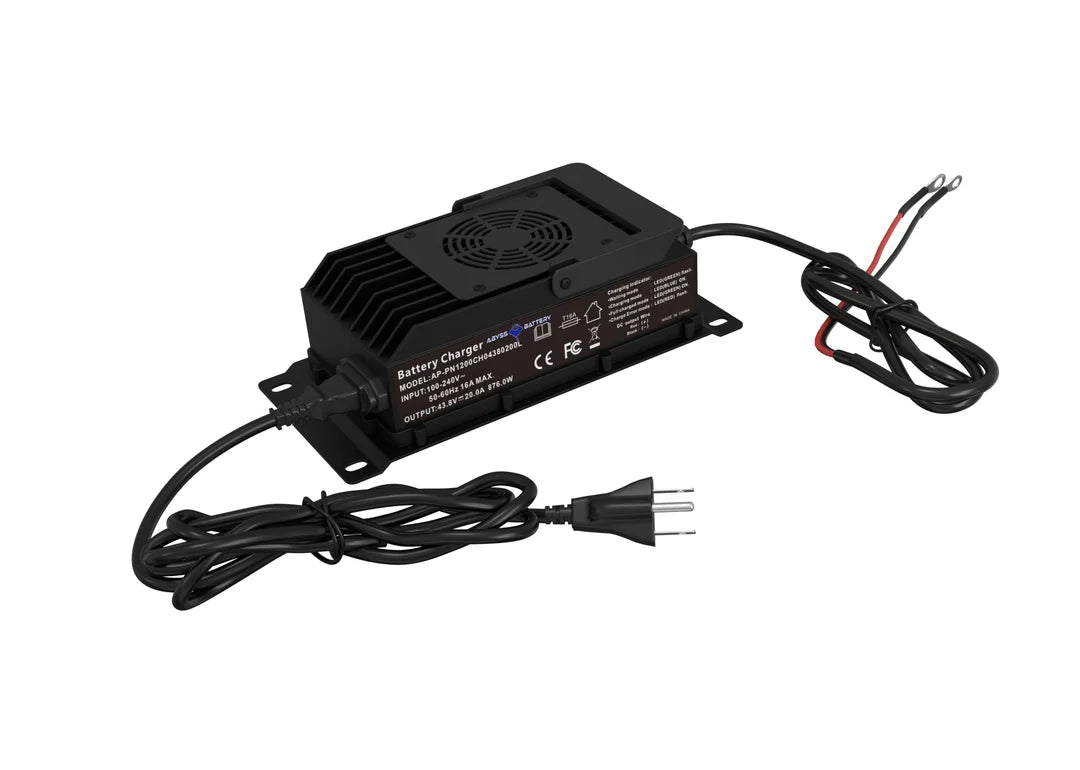

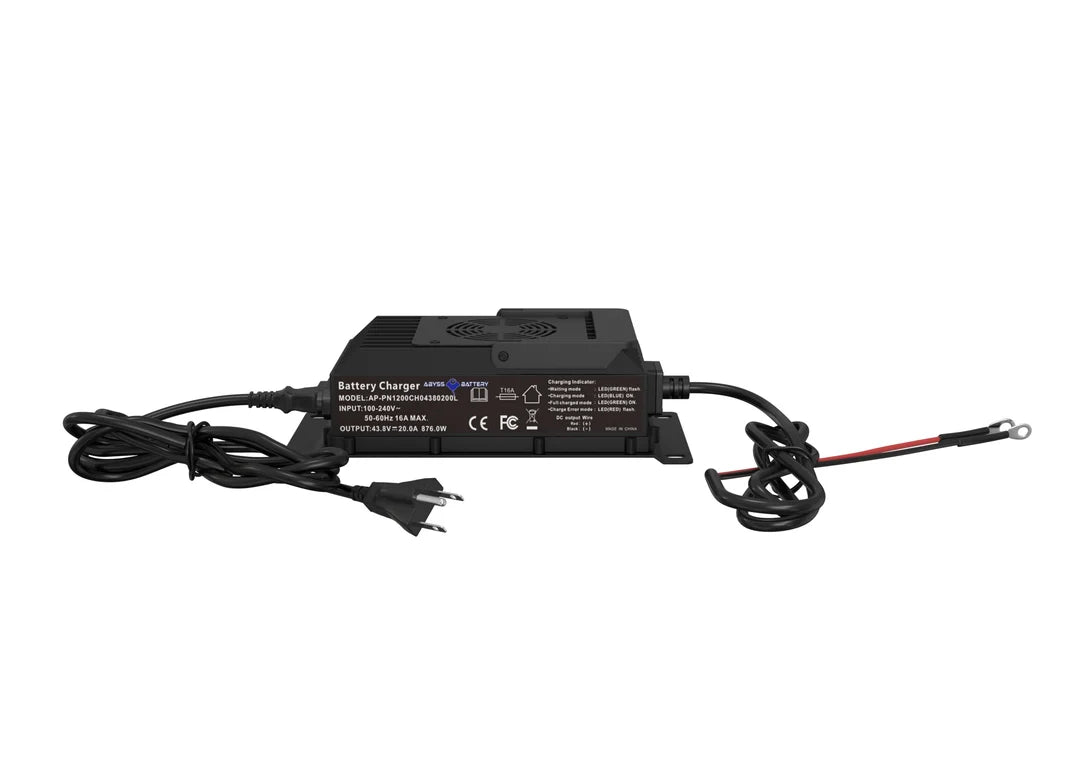

Abyss Battery 36v 20A High Precision Lithium Battery Charger
Description
Description
Experience longer run times and shorter charge times when you use our onboard 36V 20A High Precision Lithium Battery Charger. meticulously engineered to deliver unparalleled efficiency, intelligence, and speed in battery charging. Designed specifically for the ABYSS® 36V 105AH Lithium Trolling Motor Battery, this charger offers users extended battery life and reliability with its built-in protection and innovative safety features.
Our charger not only promises exceptional performance and reliability but also provides the peace of mind that comes with advanced safety features. Additionally this marine battery charger offers wide range compatibility and can be used to charge other brands of 36-Volt Lithium Batteries. Optimize your time on the water with a charger that stands at the forefront of technology, offering you the quickest, most intelligent, and efficient charging solution.
Specifications
Specifications
Identification
| MPN | AB-CRG-36V20A |
|---|---|
| Barcode | 785034601736 |
ON-BOARD Battery Chargers
| Model | AB-CRG-36V20A |
|---|---|
| Voltage | 36V |
| Output | 36V/20A |
| Product Size | 10.5" x 6" x 3" 267 x 152 x 76mm |
| Weight | 7.1 lbs (3.2 kg) |
| Lead Length | 4' (48 in.) (122 cm) |
| Charging Battery Type | 36V LiFePO4 Batteries |
FOR ALL CHARGERS (if applicable)
| LED Indicators | Power & Battery Type & Charging Status LED Indicators |
|---|---|
| Activate Function | Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function) |
| Full Cut-off Voltage | 14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery & 28.8V-29.4V for 24V Lithium Battery & 43.3V-44.2V for 36V Lithium Battery |
| Cooling Type | Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation |
| Ingress Protection | Filled with pure epoxy resin for high waterproof level IP67 |
| Circuit Protection | Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection |
| Working Temperature Range | -10°C~40°C |
| Nominal Working Temperature | 25°C |
| Relative Humidity | 5%~95% |
