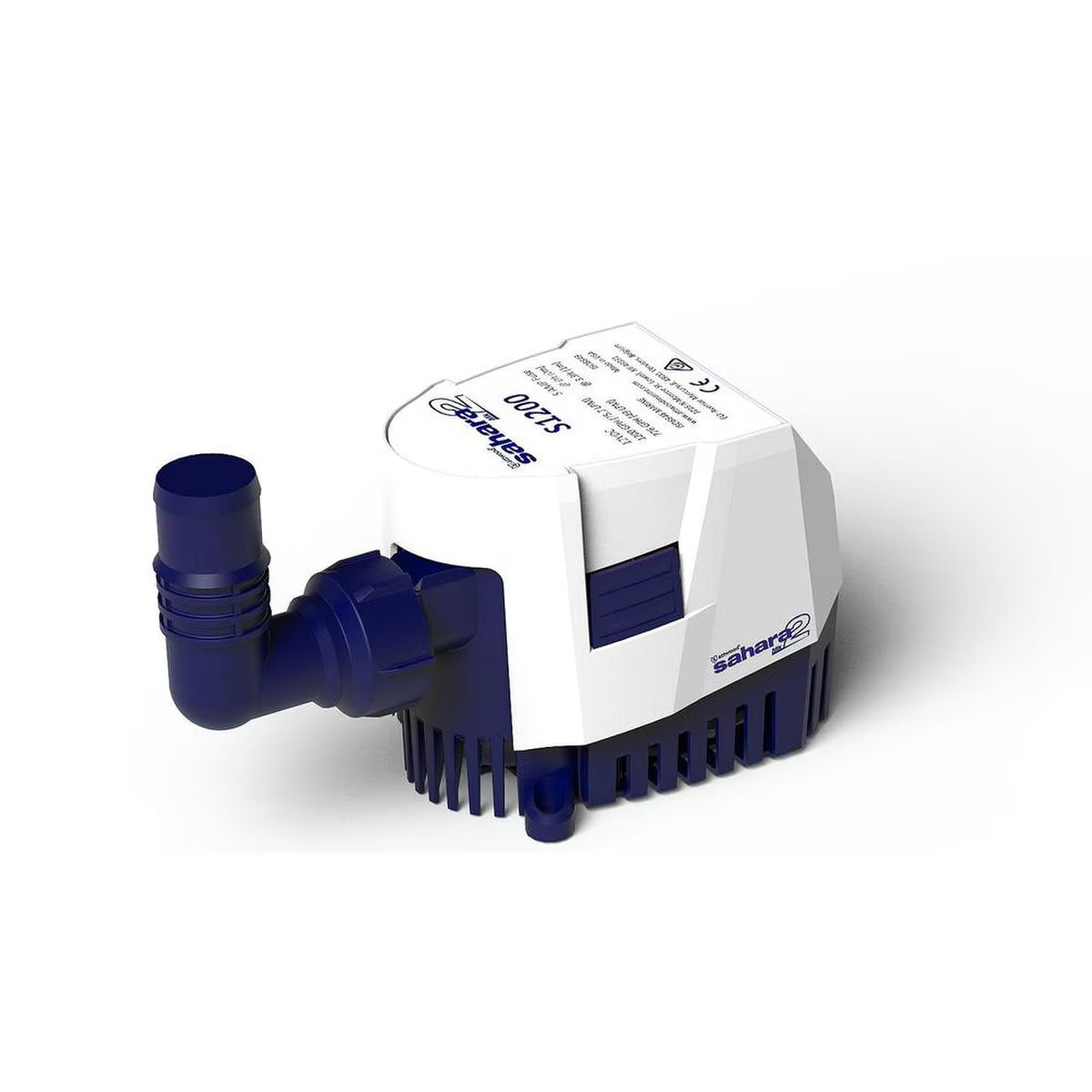

How to Choose the Right Bilge Pump for Your Boat
The one system on your boat you hope never has to work hard — but absolutely needs to, the one time it counts.
A bilge pump doesn't do much on a normal day out. A little rain, some spray that finds its way below deck, maybe a leaky fitting dripping slowly into the bilge — it clicks on, clears it out, clicks off. Nobody thinks about it. The problem is what happens on the day that isn't normal: a hose pops off a thru-hull, a following sea comes over the transom, a fitting fails offshore. That's the day your bilge pump's size, type, and wiring actually get tested, and it's a bad time to find out you guessed wrong.
Here's how to size and spec one properly, instead of grabbing whatever's cheapest on the shelf.
How Much Pump Do You Actually Need
Bilge pumps are rated in gallons per hour (GPH), and sizing is driven primarily by boat length — bigger boats have bigger bilges and more potential ingress points to handle. As a general guide:
| Boat length | Recommended total GPH |
|---|---|
| Under 16 ft (jon boats, small skiffs) | 500 – 750 GPH |
| 16 – 22 ft (bay boats, center consoles) | 1,000 – 1,500 GPH |
| 22 – 30 ft (offshore/cruisers) | 2,000 – 3,000 GPH |
| 30+ ft (large offshore/commercial) | 3,000+ GPH |
A simpler rule of thumb some riggers use: multiply your boat's length in feet by roughly 35 to get a minimum GPH target — a 20-foot boat should have at least 700 GPH of total pumping capacity between its pump(s).
Automatic vs. Manual — And Why You Need Both
Automatic pumps are wired through a float switch or electronic water sensor so they turn on by themselves the moment water reaches a set level in the bilge, with no one aboard needing to notice or flip anything. This is the right setup for any boat with an enclosed or hard-to-monitor bilge — which is most boats. It's the pump working while you're at the dock, asleep in the cabin, or just not looking at the bilge.
Manual pumps are wired straight to a helm switch with no automatic trigger. They're simple and reliable, but only useful if someone's aboard, paying attention, and willing to flip the switch — and they're easy to forget running, which drains batteries and shortens pump life if left on.
The right answer isn't one or the other. It's an automatic pump as your primary, always-on line of defense, plus a manual override switch (most quality pumps include a three-position switch: auto / off / manual) so you can run the pump directly if the automatic trigger ever fails.
Switch Types: What's Actually Triggering the Pump
Hinged Float Switch
The traditional design — a floating arm rises with the water and trips a switch at a set height. Reliable and inexpensive, but the moving arm needs clearance and can snag debris.
Ball Float Switch
A compact floating ball in a vertical housing does the same job in a smaller footprint — a good fit for tight or shallow bilges where a hinged arm won't clear.
Electronic Water Sensor
No moving parts — solid-state sensors detect water contact directly. Slimmer, less prone to mechanical fouling, and some include a test button to check function without flooding the bilge.
Three-Position Panel Switch
Not a trigger itself, but the helm-side control that ties it together: auto (float/sensor controlled), off, and manual override in one switch.
Primary + Backup: Building Redundancy
On anything beyond a small, close-to-shore boat, a single pump is a single point of failure — and bilge pumps do fail, usually from a clogged intake, a stuck float, or a burned-out motor at the worst possible moment. The standard approach for offshore or overnight boats is a two-pump setup:
- Primary pump: automatic, float- or sensor-triggered, sized to your boat's baseline GPH target, mounted at the lowest point of the bilge.
- Secondary/backup pump: mounted slightly higher so it only engages if water rises past what the primary should have handled — either another automatic pump on its own switch, or a manual pump you can trigger from the helm.
Wire each pump on its own dedicated fuse or breaker with marine-grade tinned wire. A backup pump sharing a fuse with a failed primary doesn't back up anything.
Installation Basics
A well-sized pump installed poorly still won't save you. A few fundamentals:
- Lowest point, always. Mount the pump at the lowest spot in the bilge when the boat is sitting level at rest — anywhere higher and it can't clear the bilge dry.
- Accessible for service. Put it somewhere you can actually reach to inspect, clean, test, and eventually replace it — not buried behind fixed cabinetry.
- Keep the intake clear. Fishing line, zip ties, and general bilge debris are the number one cause of a pump that runs but doesn't move water. A strainer base helps, but still needs periodic cleaning.
- Match the discharge hose and thru-hull to the pump. An undersized hose or a low, kinked run chokes flow no matter how big the pump is rated.
- Add a check valve thoughtfully. It stops water from siphoning back into the bilge when the pump shuts off, but only install one rated for the flow — an undersized check valve adds real restriction of its own.
Bottom Line
Size to your boat's length with margin built in for real-world flow losses, choose an automatic switch that matches your bilge's shape and access, and back your primary pump up with a second one on its own circuit. None of that is complicated or expensive relative to what it protects — it just has to be done before the day you actually need it, not after.
