A Guide to Marine Wire: Primary, Duplex, Triplex & Battery Cable
Wire is wire until it's on a boat — then vibration, salt, and heat make the difference between a connection that lasts and one that fails in a bilge you can't see.
Automotive wire and marine wire can look identical on the reel. They aren't built the same, and on a boat that difference matters more than almost anywhere else electricity is run. Constant vibration works copper strands loose over time, salt air attacks any exposed metal, and a failed connection below the waterline or near a fuel system isn't just an inconvenience. Marine wire is built to survive that environment; the trick is knowing which type, gauge, and configuration actually fits the job you're wiring.
Material First: Tinned Copper vs. Bare Copper
Before conductor count or gauge, the biggest factor in a wire's marine-worthiness is what the copper strands themselves are made of. Tinned copper — individual strands coated in a thin layer of tin before being stranded and insulated — is the standard for real marine wire. That tin coating is what actually resists the corrosion that salt air and humidity cause on bare copper, especially where the insulation is nicked, a connector is crimped, or a wire end is exposed at a terminal.
Bare copper wire — the kind sold for general automotive or household use — will work electrically in the short term, but corrosion creeps into the strands from any exposed point, raising resistance, generating heat, and eventually causing intermittent or failed connections. It's the single most common reason a boat's electrical system that "used to work fine" slowly stops being reliable.
Wire Configurations: Primary, Duplex, Triplex & Quad
Beyond the copper itself, marine wire comes in a few standard conductor configurations, and each one matches a different kind of circuit.
Primary Wire
One insulated conductor, run individually. This is the workhorse for most circuits on a boat — lighting, switches, gauges, accessories — anywhere you're running a single positive lead to a device with its own dedicated ground elsewhere.

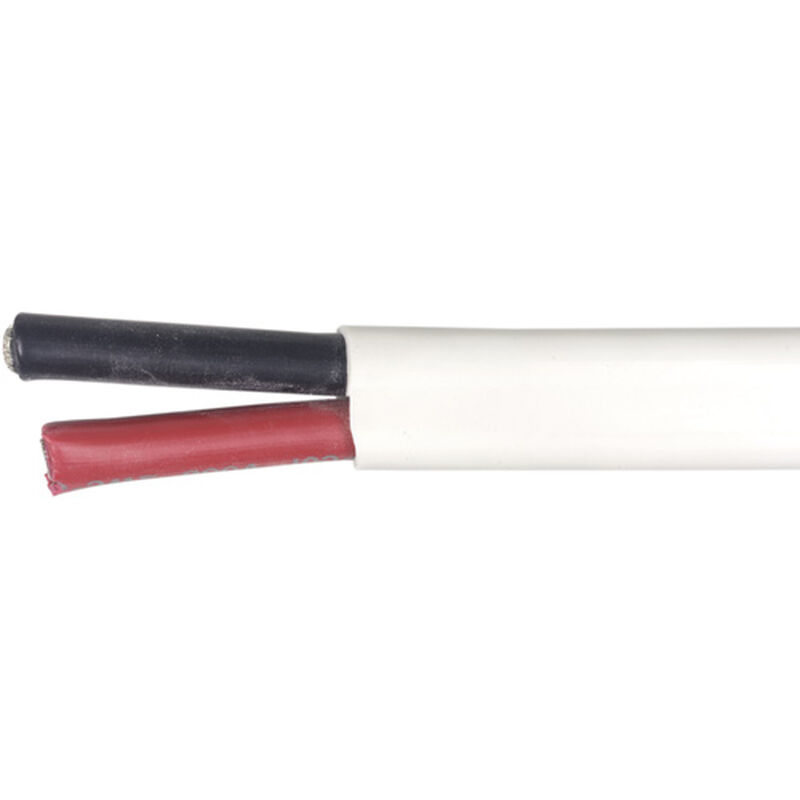

Duplex Wire
Two conductors molded together in a flat jacket, usually one color plus a marked or striped second conductor. Ideal for any circuit needing both a positive and negative run together — livewell and bilge pumps, single lighting fixtures, trailer lights.
Triplex Wire
Three conductors in one flat jacket. Common for circuits that need a shared ground plus two separate positive leads — trim tabs, dual-filament lights, or any fixture with two functions run through one cable run.
Quad Wire
Four conductors in a single flat cable, following the same logic as duplex and triplex. Used where several related leads need to travel together — multi-function lights, some pump/switch combinations — without running four separate cables.
The advantage of duplex/triplex/quad over running separate primary wires isn't electrical — it's practical. Conductors bonded together are faster to run, easier to secure, and far less likely to end up as a tangle of loose single wires behind a panel.
Battery Cable: A Different Category Entirely
Battery cable isn't a bigger version of primary wire — it's built for a fundamentally different job: carrying very high current over a short distance. Starter circuits, house battery interconnects, alternator leads, windlass runs, and battery-to-switch or battery-to-bus connections all call for battery cable rather than standard primary wire, because standard wire in the gauges needed for that kind of current would be impractically stiff and expensive to insulate.
Battery cable is sized in gauges that go beyond standard AWG numbers most boaters are used to — 4, 2, 1, 1/0, 2/0, up to 4/0 for the heaviest starter and inverter runs — and like all quality marine wire, it should be tinned copper, extra-fine stranded for flexibility, and rated for the heat these circuits can generate under load.
Sizing It Correctly: Gauge Isn't Optional
Picking the right conductor type is only half the job — the wire also has to be the right gauge for the amperage and the length of the run, or it becomes a fire risk and a voltage-drop problem regardless of how well it's built. A few fundamentals:
- Remember the AWG scale runs backward. A smaller number means a thicker wire — 8 AWG carries more current than 14 AWG, and battery cable gauges (2/0, 4/0) are thicker still.
- Size to the round-trip length, not the one-way distance. Wire sizing charts account for the full circuit — source to device and back to ground — not just the distance to the fixture.
- Use the right voltage-drop target for the circuit. ABYC guidance generally calls for no more than a 3% voltage drop on critical circuits (navigation lights, electronics, panel feeds) and allows up to 10% on non-critical circuits (cabin lighting, some pump and windlass runs). The longer the run and the higher the amperage, the heavier the gauge needs to be to stay inside that target.
- Derate for heat and bundling. Wire routed through an engine space should be treated as though it's carrying more heat than it is — ampacity is commonly reduced around 15% in those areas. Bundling several conductors together in a harness reduces each one's heat dissipation too, which is why bundled-wire ampacity tables call for meaningful derating as bundle size grows.
You don't need to run that formula by hand for every circuit — ABYC-based wire sizing charts and calculators do it for you once you know the amperage and round-trip distance. The formula matters mainly for understanding why "it's only a few extra feet" or "it's only running at half load" actually changes what gauge you need.
Color Coding: Worth Following, Not Improvising
ABYC lays out a standard color code for DC wiring so that anyone working on the boat later — you, a surveyor, a yard tech — can identify a circuit's function by its jacket color without tracing every wire back to its source. Sticking to a consistent color code (and keeping a simple wiring diagram if you deviate from it) saves real time and real headaches the next time something needs to be serviced or diagnosed, especially on a boat that changes hands eventually.
Quick Reference
| Wire Type | Conductors | Typical Use |
|---|---|---|
| Primary Wire | 1 | General circuits — lighting, switches, gauges, accessories |
| Duplex Wire | 2 | Pumps, single light fixtures, trailer lighting |
| Triplex Wire | 3 | Trim tabs, dual-function lights, shared-ground circuits |
| Quad Wire | 4 | Multi-function lights, combined pump/switch runs |
| Battery Cable | 1 (heavy gauge) | Starter, house bank, alternator, windlass, high-amp runs |
Quick Buying Checklist
- Confirm it's tinned copper meeting UL 1426 or SAE J1127/J1128 — not repurposed automotive wire.
- Match the configuration (primary, duplex, triplex, quad, or battery cable) to what the circuit actually needs.
- Calculate round-trip length and target amperage, then size gauge to a 3% drop for critical circuits or 10% for non-critical ones.
- Derate for engine-space heat and any bundling with other conductors.
- Check the insulation is rated for continuous heat, oil, and UV exposure.
- Stick to a consistent color code, or document any deviation for whoever works on the boat next.
None of this is complicated once you know the categories — it's just easy to skip when a spool of the wrong wire is sitting right there at the hardware store. Tinned copper, the right conductor configuration, and a gauge sized to the actual circuit will outlast the boat's next owner. Anything less is a problem waiting for the worst possible time to show up.
