NAC-2 Core Pack

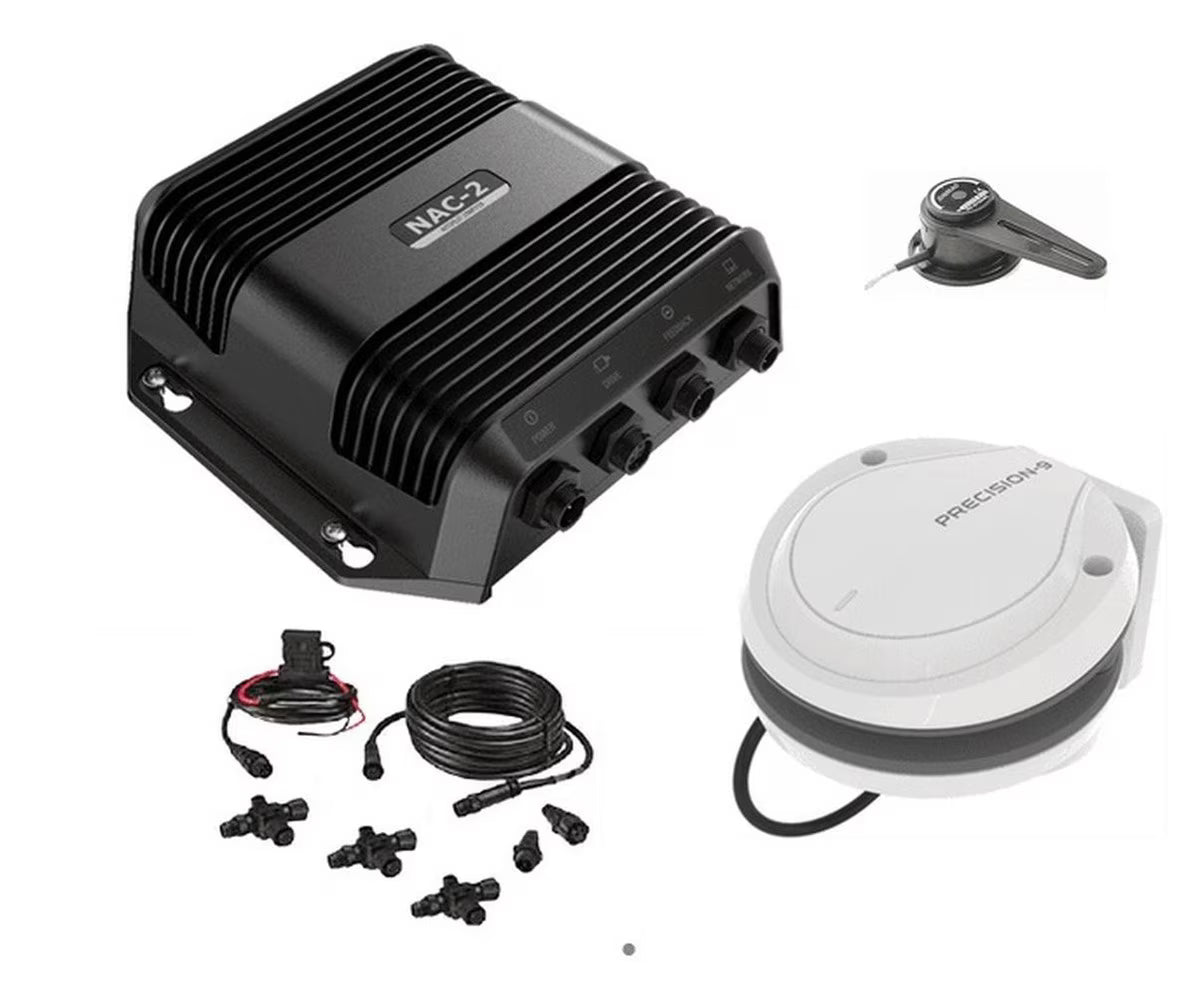

This pack includes the Simrad NAC-2 autopilot computer, RF25N rudder feedback unit, Precision-9 solid-state compass, plus all cabling and connectors required to build an NMEA 2000(R) network backbone or connect your autopilot system to an existing NMEA 2000(R) network. This pack is recommended for rudder-steered boats up to 10 metres (35 feet) in length, and is suitable for use with low-current drive pumps including the Simrad RPU80, mechanical drives such as the Simrad SD10, hydraulic linear drives such as the HLD350, and solenoid valves.

Choose from a range of dedicated autopilot controllers, or control your autopilot from your existing Simrad multifunction display. Install extra autopilot stations, ideal for dual-helm vessels, or add the Simrad WR10 wireless remote for instant steering and autopilot control from anywhere on board.

Plug-and-play connectors minimise the need for manual wiring and facilitate easy installation. Industry-standard NMEA 2000(R) networking offers reliable connectivity to sensors, autopilot controllers, and multifunction displays located anywhere on board. Auto-tuning simplifies setup and ensures optimal steering performance, while automatic compass calibration continuously improves heading accuracy as you travel.

• Core autopilot system components - just add a drive unit and controller
• Ideal for rudder-steered boats up to 10 metres (35 feet) in length
• Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
• Take control with the Simrad AP44 Autopilot Controller, IS42 display and OP12 keypad, or a networked multifunction display
• Easy setup with automatic tuning and compass calibration
• Plug-and-play connectors for easy installation
