Discontinued
Garmin  |  SKU: GAR/010-02366-01

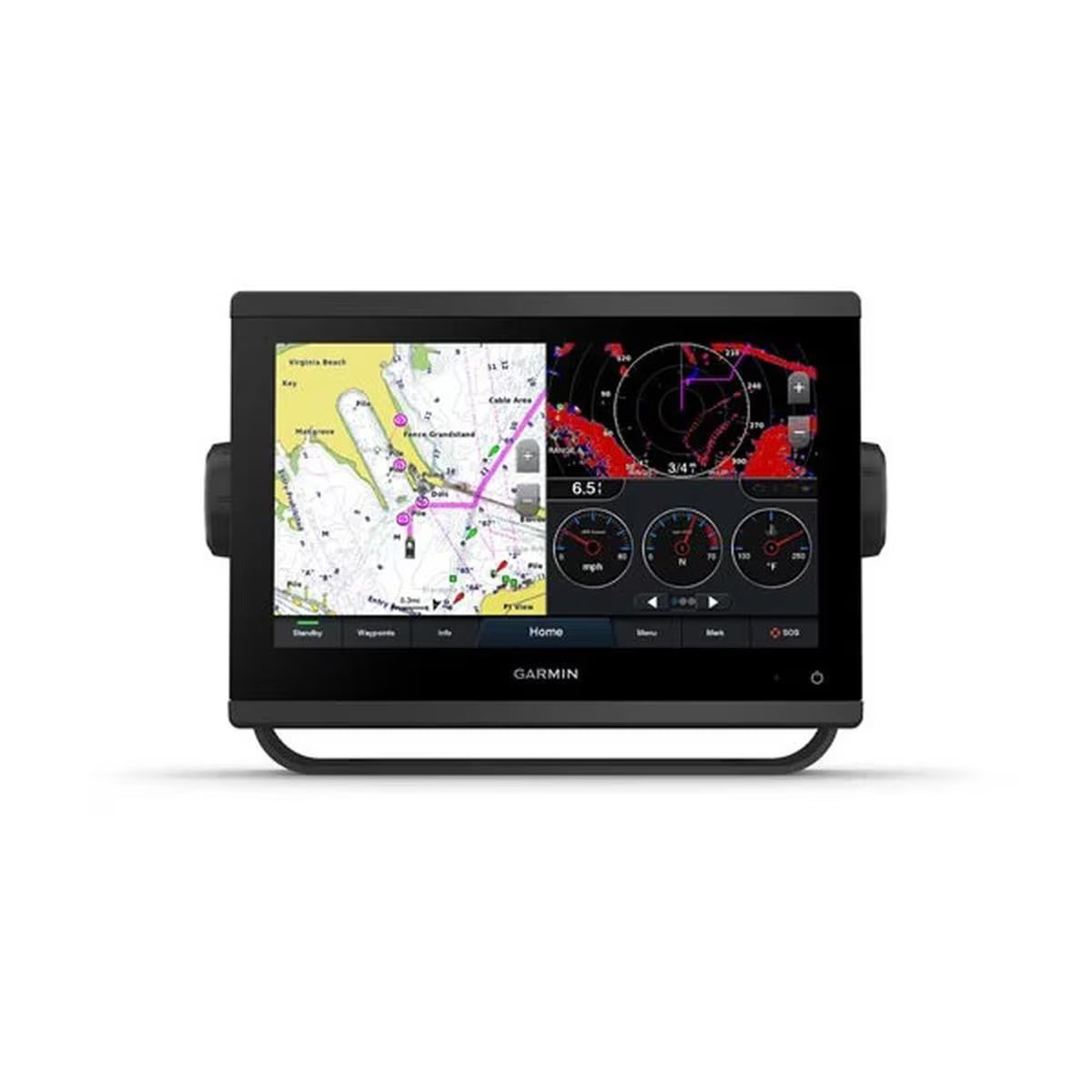

GPSmap 943 (G3)

9" MFD w/ BlueChart G3

Regular price $1,39999
Shipping calculated at checkout.

DISCONTINUED

Limited To Stock Available

Discontinued:

Description

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9”, 12” or 16” chartplotter integrates seamlessly into your Garmin marine system.

Easily integrate with more engines.

Connect to compatible third-party devices with digital switching and OneHelm integrations.

Easily build your marine system by using our advanced network connectivity.

Navigate any waters with preloaded Garmin BlueChart G3 charts.

See below your boat with built-in sonar capabilities on select models.

Manage your marine experience from nearly anywhere.

Specifications

  • Product Series
    GPSmap x3
  • MPN
    010-02366-01
  • Physical
    Dimensions: 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm)
    Weight: 3.6 lbs (1.6 kg)
  • Mounting
    Type: Flat or Flush
    Cutout: 8 3/4" x 5 1/2" (222.4 mm x 139 mm)
  • Power
    Input: 10-32v DC
    Typical Draw: 1.34 A @ 12v
    Max Draw: 1.78 A @ 12v
  • Screen
    Touchscreen: Yes
    Type: WXGA
    Size: 9.0"
    Resolution: 1280 x 720
  • Sonar
    No (Requires Sonar Module or Networked XSV Unit)

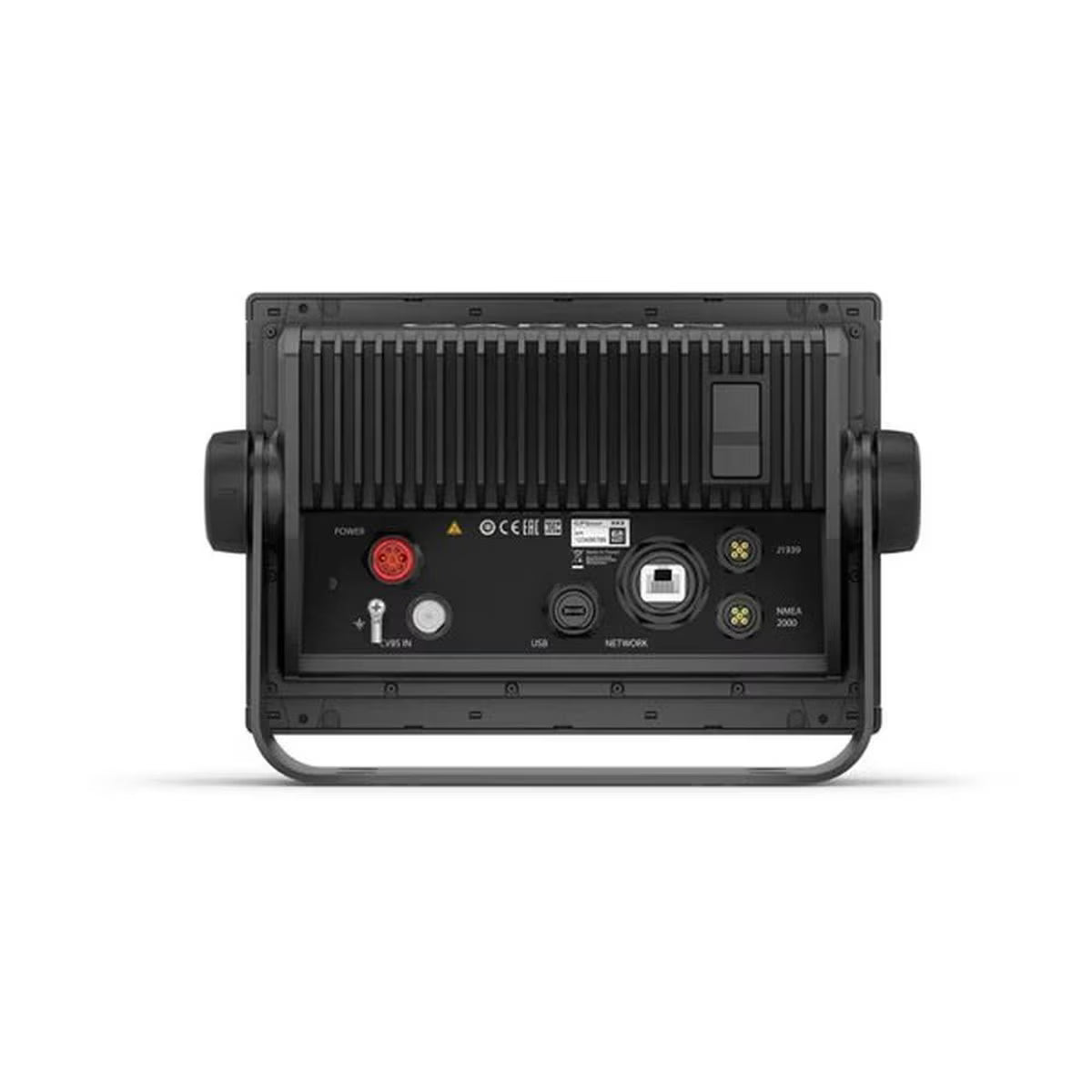

  • Connectivity
    Built-In GPS: Yes - 10Hz
    SD Cards: Yes - microSD (2)
    Wireless: WiFi, Bluetooth, ANT
    Network: Marine Network (1)
    NMEA 0183: Yes
    NMEA 2000: Yes
    J1939: Yes
    Analog Video In: Yes
    HDMI In: No
    HDMI Out: No
    USB: Yes
    Sonar: Yes - 12pin
  • Built-In Chart
    Garmin BlueChart G3
  • IP Rating
    IPx7

Reviews (0)

In The Box

In The Box:

- GPSMAP 943 chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation

Package Dimensions:

Support/Warranty



Release Date:

Warranty: 2yr



* ALL WARRANTY IS THROUGH MANUFACTURE *
