Garmin | SKU: GAR/010-02366-52 | Barcode: 753759326005

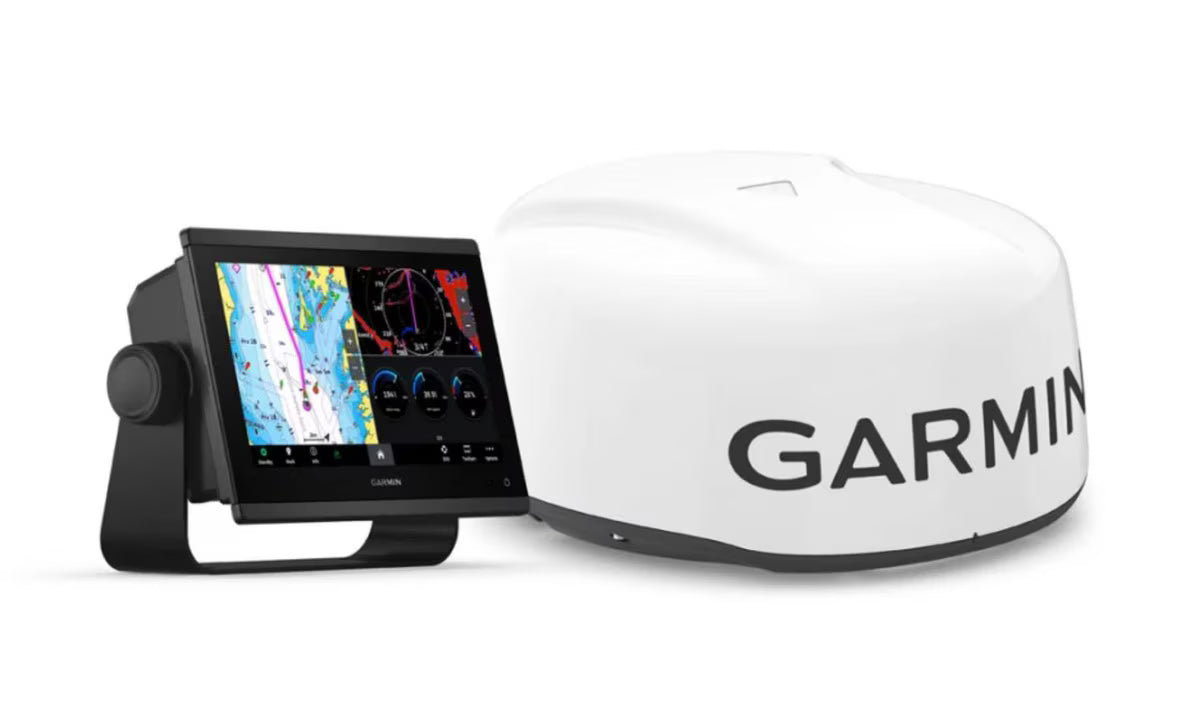

GPSmap 923xsv + GMR18 HD3

Name: GPSmap 923xsv + GMR18 HD3
Brand: Garmin
SKU: GAR/010-02366-52
Price: 3199.99 USD
Availability: InStock

9" MFD w/ Built-In Sonar, Navionics+ & Radar Bundle

$3,199⁹⁹

Options

GPSmap 923 Multi-Function Display

9" MFD

GPSmap 923xsv

9" MFD w/ Built-In Sonar

GPSmap 923xsv + GMR18 HD3

9" MFD w/ Built-In Sonar, Navionics+ & Radar Bundle

GPSmap 943

9" MFD w/ Navionics+

GPSmap 943xsv

9" MFD w/ Built-In Sonar & Navionics+

GPSmap 943xsv + GMR18 HD3

9" MFD w/ Built-In Sonar, Navionics+ & Radar Bundle

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9”, 12” or 16” chartplotter integrates seamlessly into your Garmin marine system.

Easily integrate with more engines.

Connect to compatible third-party devices with digital switching and OneHelm^™ integrations.

Easily build your marine system by using our advanced network connectivity.

See below your boat with built-in sonar capabilities on select models.

Manage your marine experience from nearly anywhere.

Specifications

Product Series

GPSmap x3
MPN

010-02366-52
Physical

Dimensions: 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm)
Weight: 3.6 lbs (1.6 kg)
Mounting

Type: Flat or Flush
Cutout: 8 3/4" x 5 1/2" (222.4 mm x 139 mm)
Power

Input: 10-32v DC
Typical Draw: 1.34 A @ 12v
Max Draw: 1.78 A @ 12v
Screen

Touchscreen: Yes
Type: WXGA
Size: 9.0"
Resolution: 1280 x 720
Sonar

Built-In Sonar: Yes
Port: 12pin
Power: 1kW
Frequencies:
Traditional: Dual Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVu: 260/455/800/1000/1200 kHz
SideVu: 260/455/800/1000/1200 kHz
Connectivity

Built-In GPS: Yes - 10Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT
Network: Marine Network (1)
NMEA 0183: Yes
NMEA 2000: Yes
J1939: Yes
Analog Video In: Yes
HDMI In: No
HDMI Out: No
USB: Yes
Sonar: Yes - 12pin
Built-In Chart

Basemap
IP Rating

IPx7

Reviews (0)

In The Box

In The Box:

Package Dimensions:

Support/Warranty

Product Support:

Subscription Information:

Release Date:

Warranty: 2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
