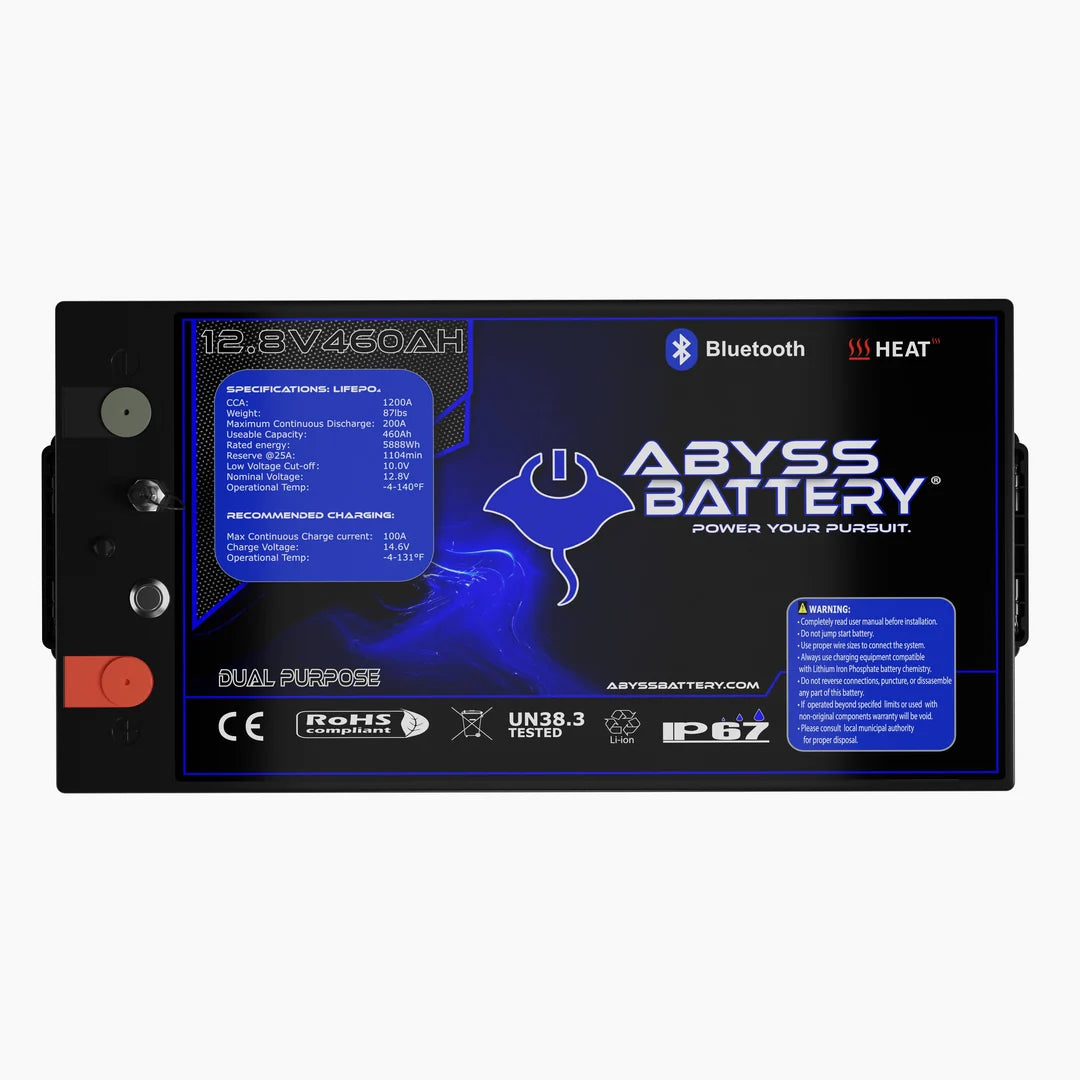

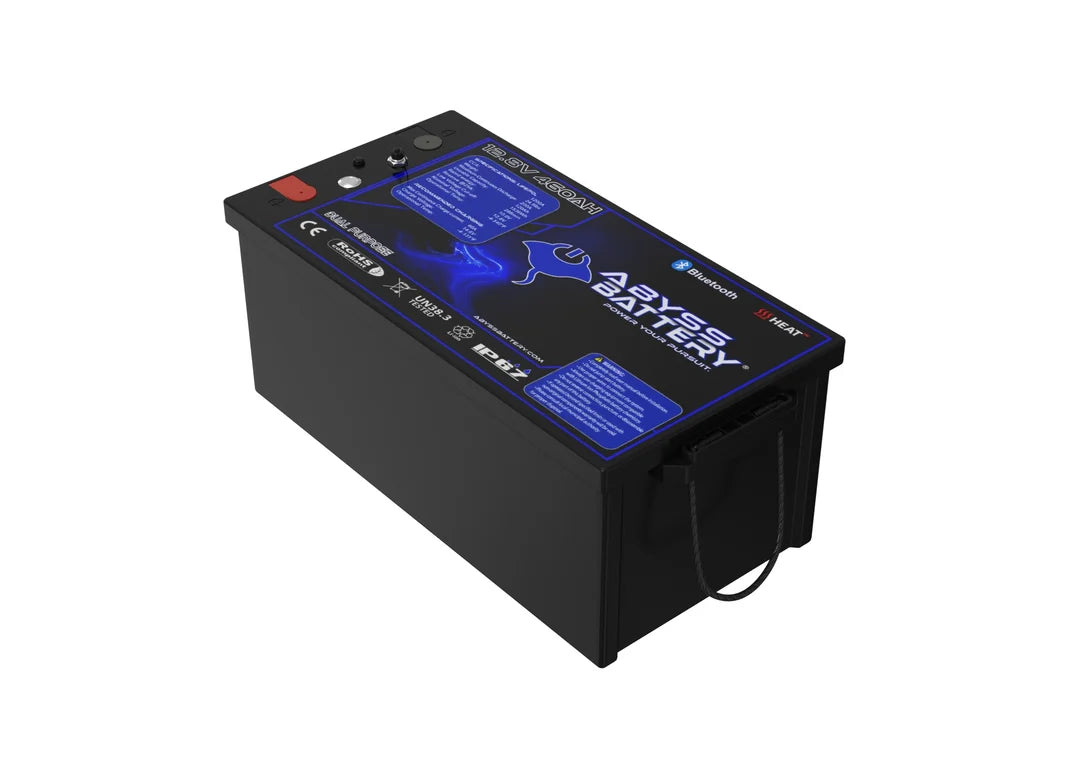

Abyss Battery 12v 460ah LifePO4 Lithium Battery w/ NMEA 2000
Description
Description
The ABYSS® 12V 460Ah Dual-Purpose 8D Lithium Marine Battery is a high-capacity, intelligent power solution engineered for vessels running today’s most demanding onboard systems. Designed to support air conditioning, Seakeeper stabilization, chill plates, inverters, and advanced marine electronics, this battery delivers consistent, high-output performance in the harshest offshore conditions.
Equipped with NMEA 2000® integration and Bluetooth® connectivity, this battery provides seamless communication with your vessel’s network and real-time monitoring directly from your mobile device or multifunction display (MFD). Track critical data such as voltage, state of charge, current draw, and system health—giving you complete visibility and control over your onboard power system.
Built with premium LiFePO4 cells and an advanced high-output Battery Management System (BMS), this dual-purpose battery delivers the power required for both engine starting and deep-cycle house loads, simplifying system design while maximizing efficiency.
Compared to traditional AGM or lead-acid batteries, the ABYSS® 460Ah 8D offers significantly longer run times, faster charging, and up to 70% weight reduction, all while maintaining superior safety and reliability standards for marine environments.
This is more than just a battery—it’s a fully integrated power system designed to keep you running longer, smarter, and with total confidence offshore.
Specifications
Specifications
Identification
| MPN | AB-12V460-BT |
|---|
12V 460Ah Battery Datasheet
| Nominal Voltage | 12.8V |
|---|---|
| Nominal Capacity | 460Ah |
| Parallel Connection | Maximum 4 units |
| Serial Connection | Maximum 4 units |
| Bluetooth Management System (BMS) | 4S 200A (Available on Android/iOS) |
| Charge Voltage | 14.4±0.2V |
| Standard Charge Current | 40A |
| Fast Charge Current | 100A |
| Max. Continuous Discharge Current | 200A |
| Peak Discharge Current | 1200A (CCA) 300ms |
| Discharge Cut-off Voltage | 12V (Emergency Start Power Reserve) |
| Cycle Life | 4000 cycles @ 95% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Operating Charge Temperature Range | -20°C to 55°C (-4°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | 0°C to 45°C (32°F to 113°F) |
Physical Specifications
| Dimensions | 20.67" x 10.63" x 8.66" in (525×270×220mm, Group 8D) |
|---|---|
| Approximate Weight | 86.99 lbs (39.46Kg) |
| Terminal Type | M8 |
| Case Color/Material | Black Plastic case (ABS) |
| IP Rating | IP67 |
| Cell Type | Prismatic LiFePO4 cell (EVE 230Ah) UL Cell |
| Cell Holder | Yes |
Additional Information
| Features | Bluetooth connectivity for monitoring via Android and iOS devices; NMEA 2000 connection (compatible with Garmin, Raymarine and SIMRAD); Internal heating for cold weather performance; Emergency Start Power Reserve |
|---|---|
| Certifications | UL 1642, IEC62133, IEC62619, CE, UN38.3, ROHS |
