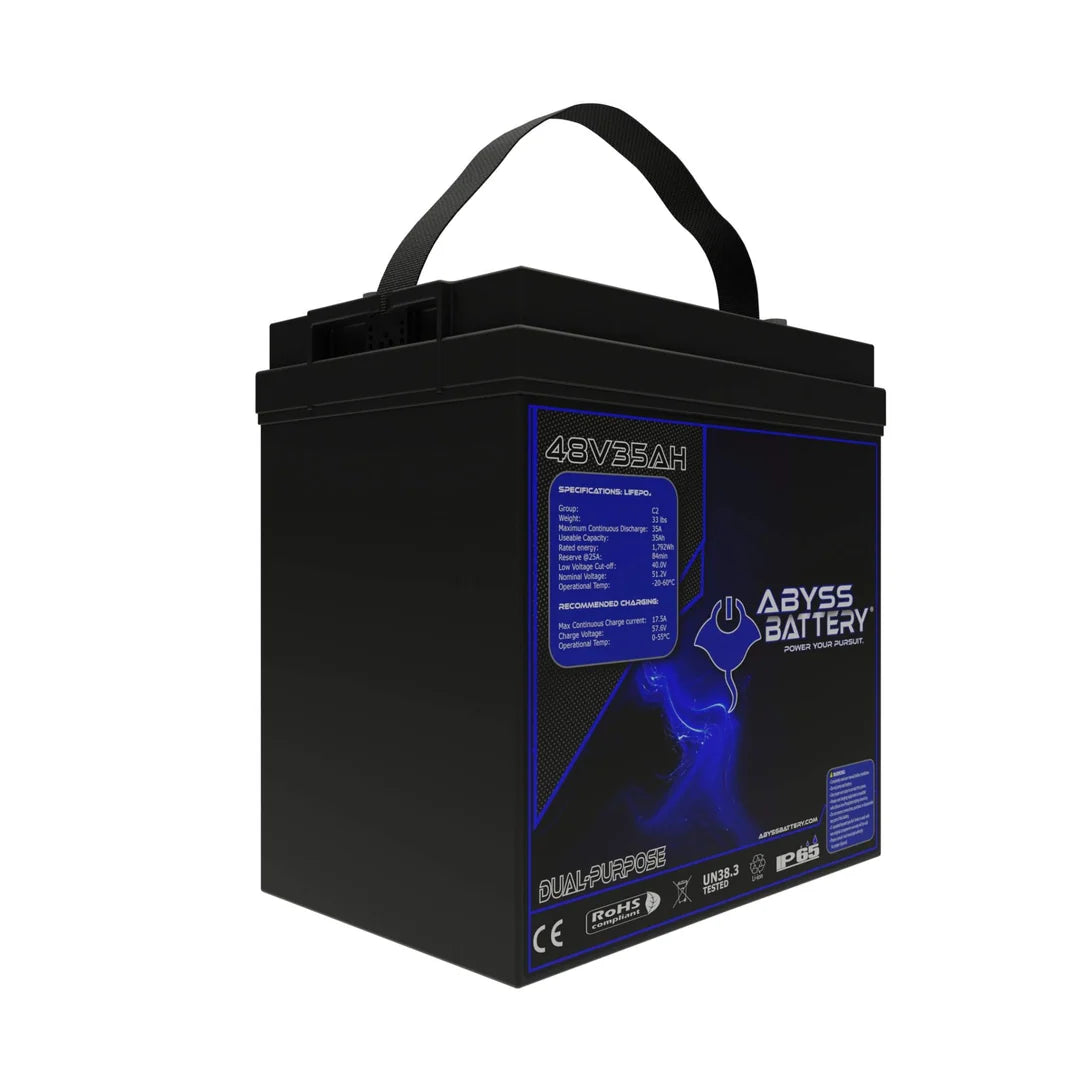

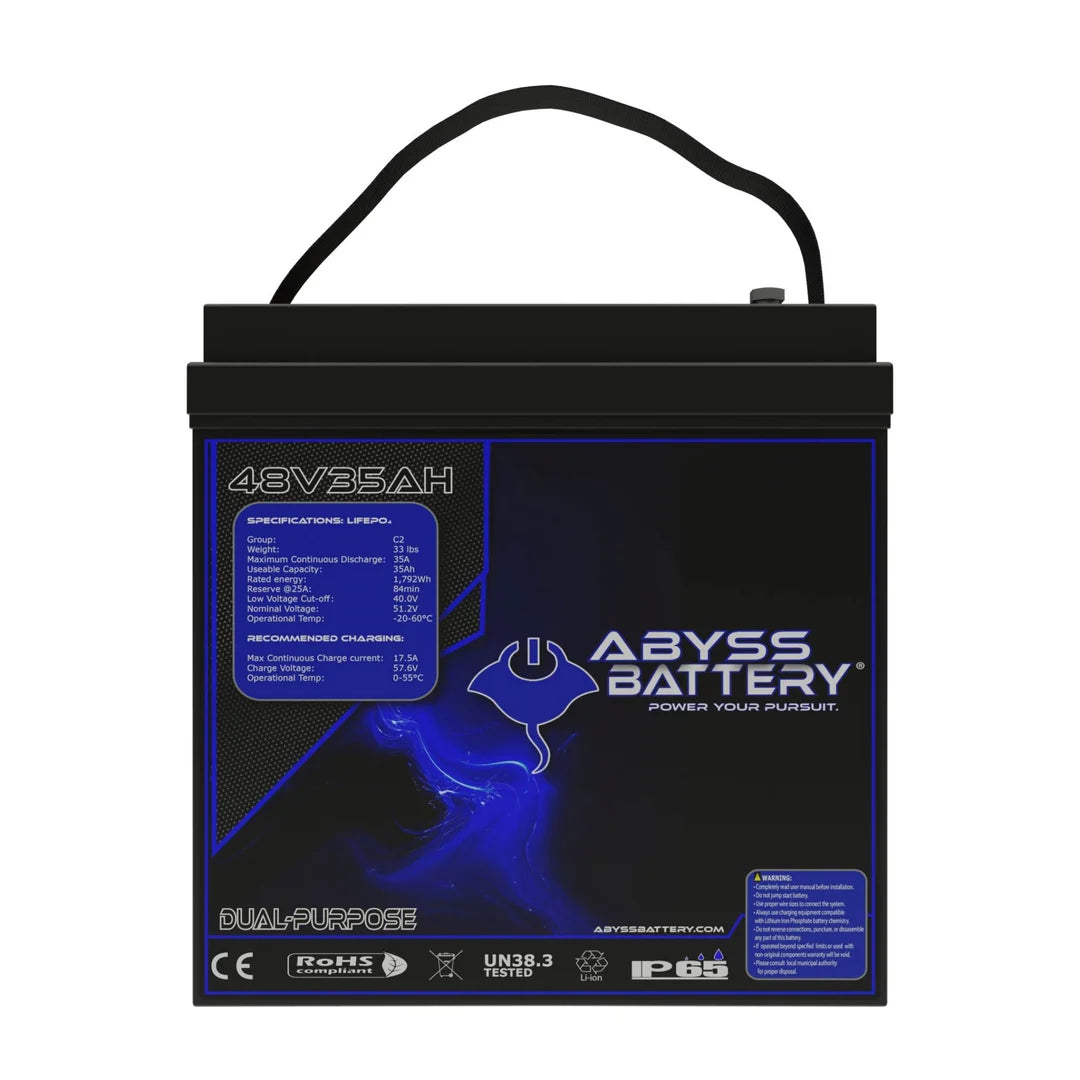

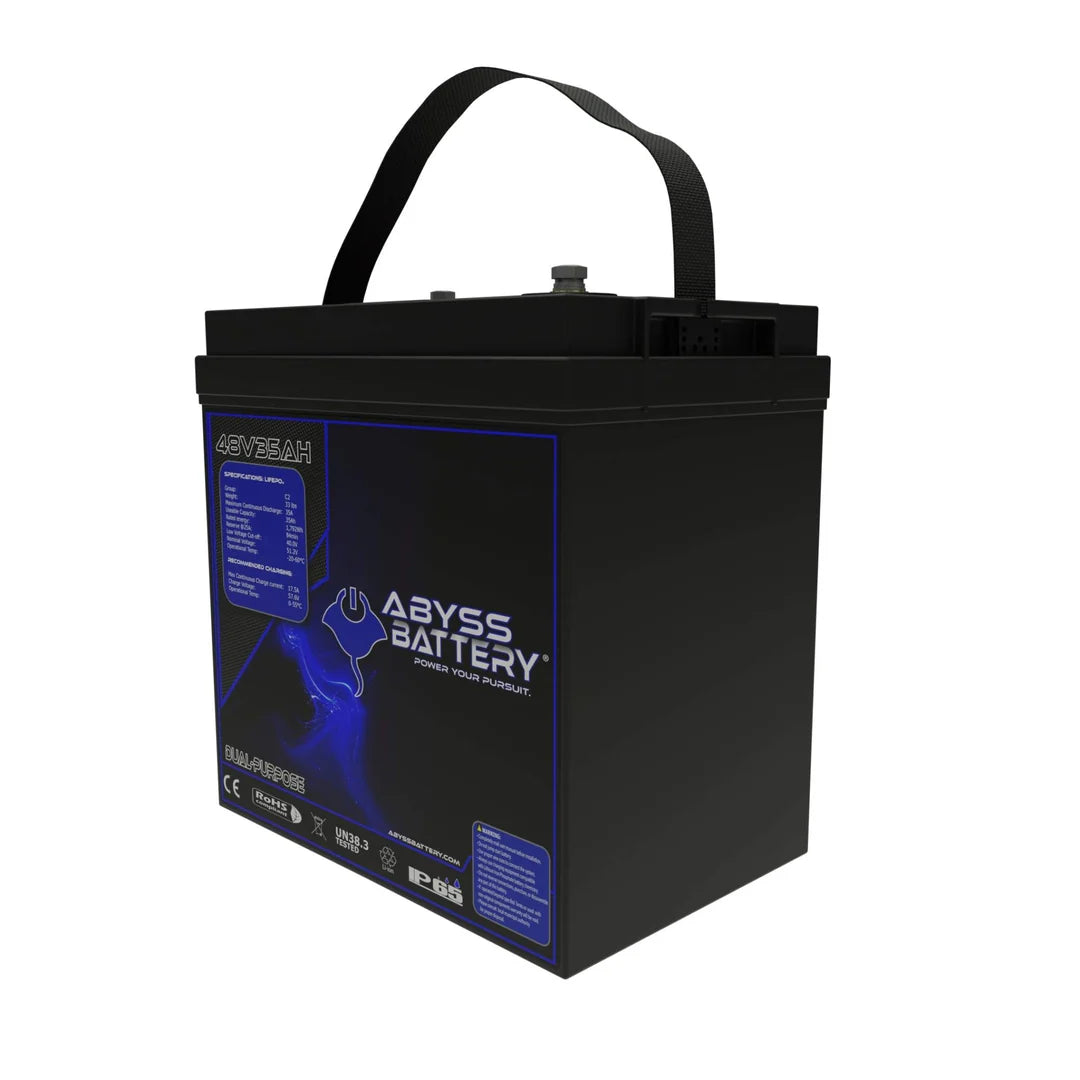

Abyss Battery 48v 35ah LifePO4 Lithium Golf Cart Battery
Description
Description
Introducing the ABYSS® 48V 35Ah Lithium Golf Cart Battery, the perfect combination of efficiency and power. With improved runtime, range and battery life, you'll be able to zoom around the course without any worries.
Our Lithium Iron Phosphate Golf Cart Battery is a GC2 case size with built in bluetooth and display screen is a direct drop-in replacement for standard AGM and Lead Acid Batteries so installation is simple - no need for expensive modifications! Plus the battery is exceptionally safe, eliminating the worry of acid leakage found in traditional batteries.
Now you can go further with increased confidence about safety and security. Pair this battery with our 48V 20A lithium battery charger for everything you need to upgrade your ride. With ABYSS®, power and performance are guaranteed!
Specifications
Specifications
Identification
| MPN | AB-48V35-BT |
|---|
48V 35Ah Battery Datasheet
| Nominal Voltage | 48V |
|---|---|
| Nominal Capacity | 35Ah |
| Parallel Connection | Maximum 6 units |
| Serial Connection | No |
| Bluetooth Management System (BMS) | 16S60A (Available on Android/iOS) |
| Charge Voltage | 57.6±0.8V |
| Standard Charge Current | 7A |
| Fast Charge Current | 17A |
| Max. Continuous Discharge Current | 35A |
| Peak Discharge Current | 200A (300ms) |
| Discharge Cut-off Voltage | 40V |
| Cycle Life | 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 98-100% @1C |
| Operating Charge Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
Physical Specifications
| Dimensions | 10.23" x 7.0" x 10.43" in (330×173×216mm, Group Size GC2) |
|---|---|
| Approximate Weight | 31.9 lbs (14.5 KG) |
| Terminal Type | M8 |
| Case Color/Material | Black Plastic case (ABS) |
| IP Rating | IP65 |
| Cell Type | Cylindrical LiFePO4 cell |
| Cell Holder | Yes |
Additional Information
| Features | Bluetooth connectivity for monitoring via Android and iOS devices |
|---|---|
| Certifications | UL 1642, IEC62133, IEC62619, CE, UN38.3, ROHS |
