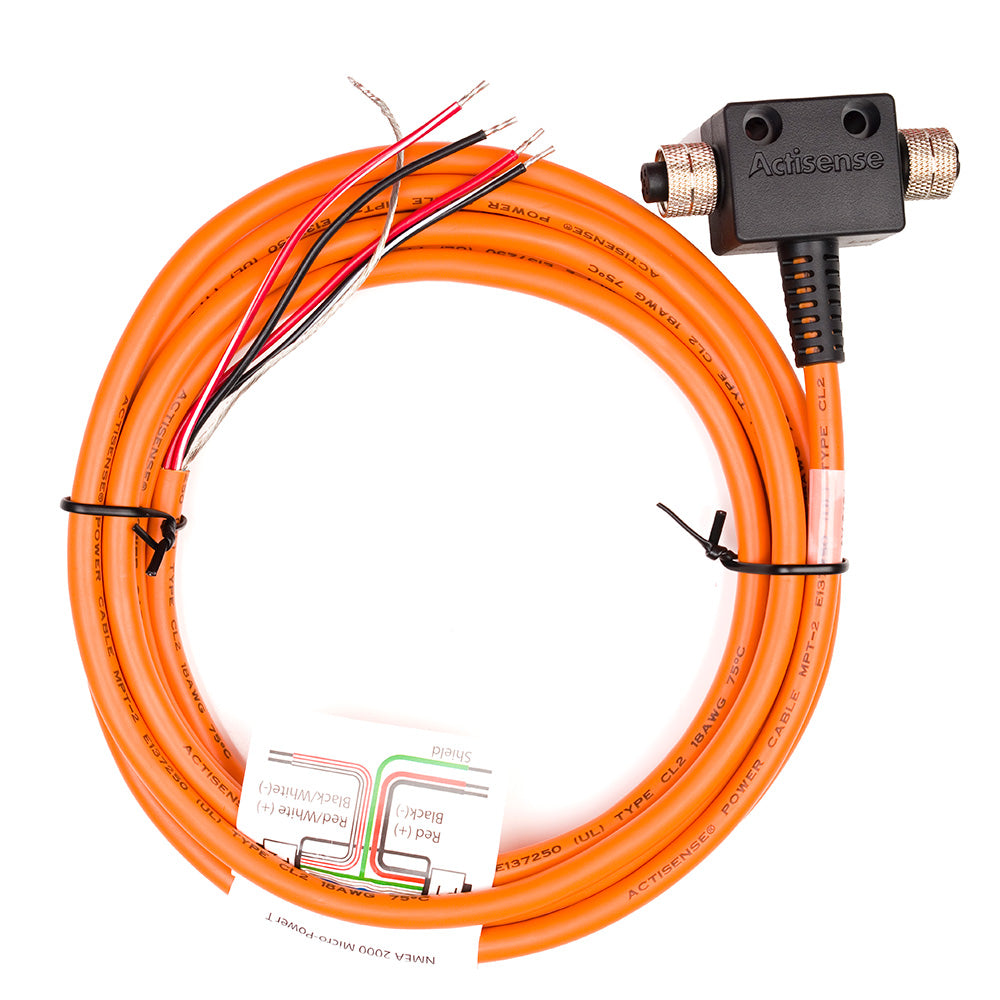

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable
The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.
Now with improved strain relief!
The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.
The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.
The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.
Specifications
Specifications
Identification
| MPN | A2K-MPT-2 |
|---|---|
| Barcode | 5060998710140 |
Electrical
| Rated Current | 4A (each feed) |
|---|---|
| Rated Voltage | 60VDC |
Mechanical
| Female Contact | Phosphor bronze, gold plated |
|---|---|
| Contact Carrier | PA66 (30% Glass Filled), Black |
| Contact Polarization | Standard M12 -“A”- polarization |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber, black |
| Housing | PVC, black |
| Cable Jacket Material | 0.8mm Nom. PVC, orange |
| Cable Outer Diameter | 6.7mm ±0.254mm |
| Cable Length | 3M |
| Wire Length | 100mm (7mm stripped) |
| Wire Jacket | PVC |
| Wires | 18 AWG (stripped and tinned) |
| Drain | 18 AWG (34-strand tinned copper) |
| Shield | Al-mylar |
| Weight | 290g |
