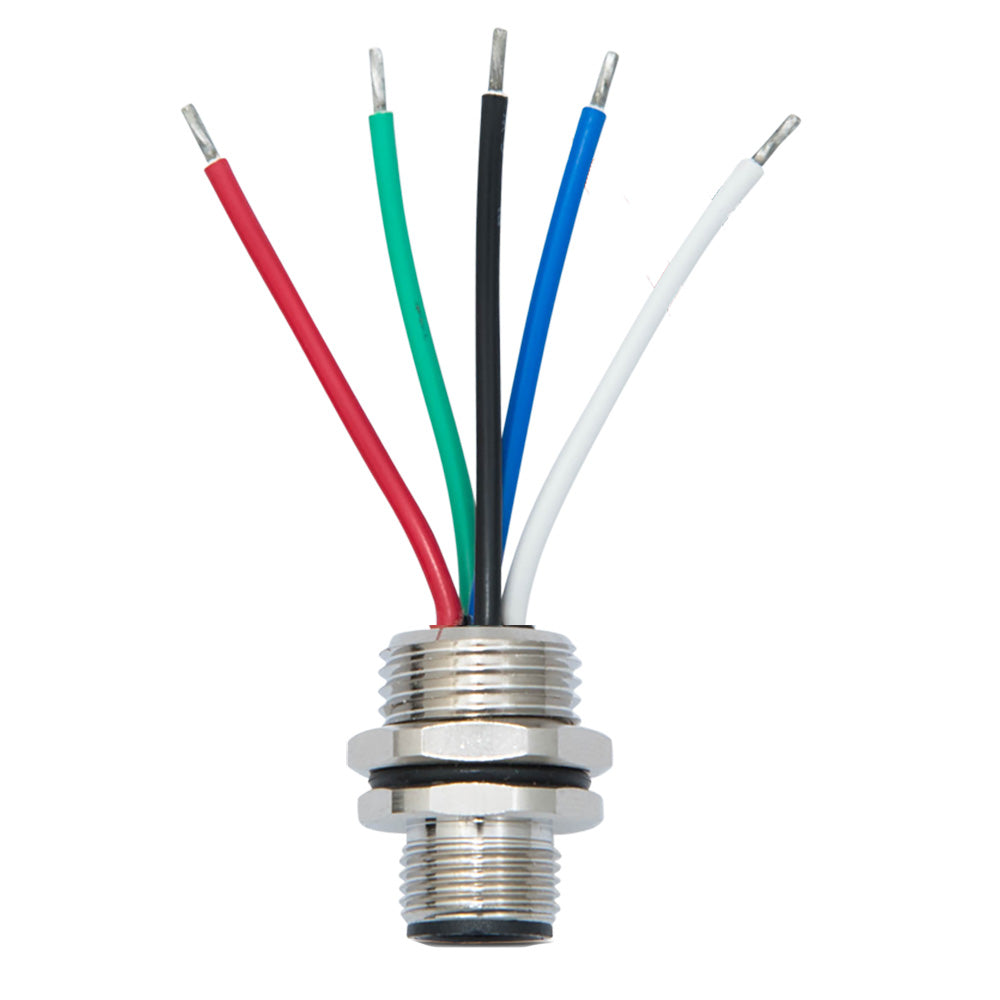

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male
Panel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.
Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.
The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Specifications
Specifications
Identification
| MPN | A2K-PMW-M |
|---|---|
| Barcode | 5060998710164 |
Electrical
| Rated Current | 4A |
|---|---|
| Rated Voltage | 60VDC |
Mechanical
| Contacts | Brass, gold-plated |
|---|---|
| Contact Carrier | Nylon & GF |
| Contact Polarization | Standard M12-"A"-Polarization |
| Mating Thread | M12 |
| Housing | Brass, nickel-plated |
| Mounting Thread | PG9 |
| Mounting Nut | Brass, nickel plated - PG9 |
| Mounting Hole Diameter | 15.3mm |
| Wires | 18 AWG (stripped and tinned) |
| Wire Jacket | PVC |
| Weight | 20g |
