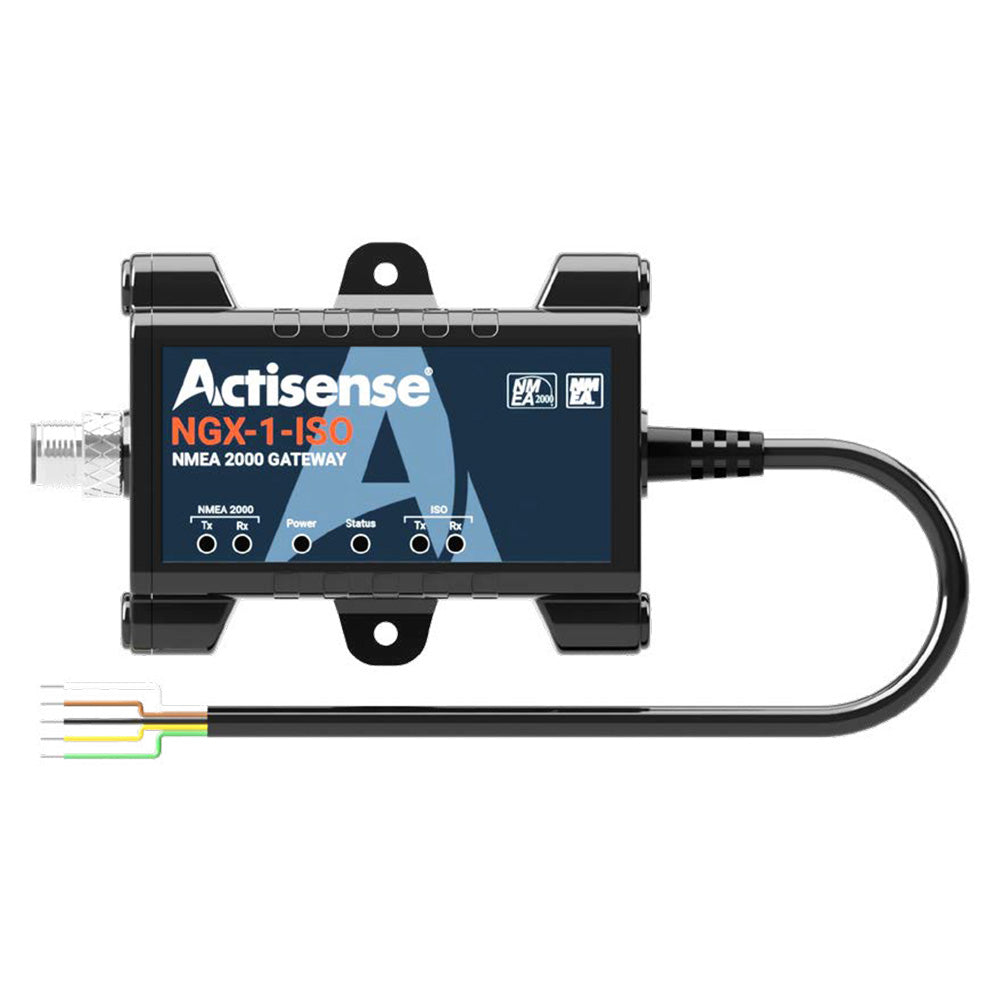

Actisense 0183 to N2K Gateway w/PC Interface, ISO Connection
Sale price
$25879
Regular price
$28755
Total:
Unit price
SKU:
ACT/NGX-1-ISO
Sale price
$25879
Regular price
$28755
Total:
Unit price
Description
Description
0183 to N2K Gateway with PC Interface, ISO Connection
Intelligent Gateway technology enables PC interfacing and NMEA data conversion…
The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.
Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.
Features:
- View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
- View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
- Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
- Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
- Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
- Vital NMEA 2000 diagnostic tool
- OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
- Up to 230,400 baud data transfer rate
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Multiple diagnostic LEDs
- Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
- Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
- Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
- Configure and flash-update Actisense products on the bus
- Upgrade NMEA 0183 equipment to NMEA 2000
- Allow NMEA 0183 devices to receive vital NMEA 2000 data
- Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
- Reliable, renowned bi-directional conversion engine
- Supports a wide range of conversions including AIS
- Easily configurable using Actisense Toolkit
Specifications
Specifications
Identification
| MPN | NGX-1-ISO |
|---|---|
| Barcode | 5060998710553 |
Power SupplySupply Voltage (NMEA 2000 Port) - 9 to 30V DCSupply Current (NMEA 2000 Port) - 62mA @ 9V DCLoad Equivalent Number (LEN) - 2NMEA 2000 PortSpeed / Baud Rate - 250kbpsConnectivity - M12 Male (A coded)ISO Port
| Compatibility | Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible |
|---|---|
| Speed/Baud Rate | 4800 to 230400 Baud |
| Output Voltage Drive | >= 2.1V (differential) into 100Ω |
| Output Current Drive | 20mA max. |
| Output Protection | Short circuit and ESD |
| Input Voltage Tolerance | -15V to +15V continuous -35V to +35V short term (< 1 second) |
| Input Protection | Current limited and overdrive protection to 40VDC |
| Connectivity | 5mm stripped and tinned wire |
| Cable Length | 0.75m |
