SKU:
AIR/B164-12-MM
Sale price
$1,29999
Regular price
$1,42999
Unit price
Description
Description

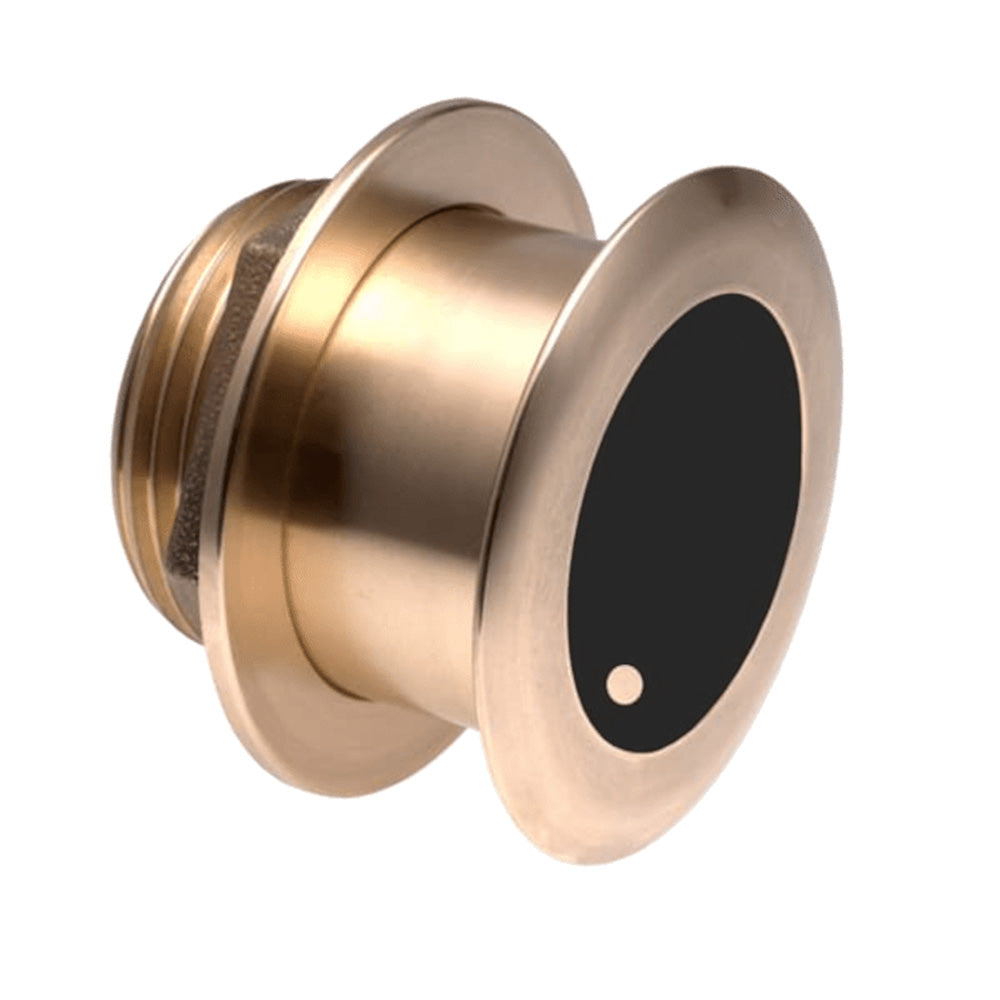

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable
12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on the boat’s running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID® technology
Specifications
Specifications
Identification
| MPN | B164-12-MM |
|---|
General
| Acoustic Window | Urethane |
|---|---|
| Common Use | Leisure/Yachting, Fishing |
| Connector | Airmar 9-Pin (MM1) |
| Conventional Beam | 22°x20°/6° |
| Country of Origin | USA |
| Deadrise Range | 8° to 15° |
| Frequency Band | 50/200 kHz |
| Material | Bronze |
| Max Deadrise | Up to 15° |
| Mix and Match Series | 9-Pin 1000 Watt |
| Sensor Connector | MM1 |
| Single or Dual Frequency | Conventional Dual Frequency |
| Tilt Angle | 12° |
| Tilted Element | Yes |
| Functions | Depth, Temperature |
| Max Vessel LOA | Up to 11 m (36') |
| Display Connector | Cable Required |
Physical
| Cable-Length | 2 M (6.5') |
|---|---|
| Max Depth | Low frequency- 549 m (1800'), High frequency- 244 m (800') |
| Mounting Style | Tilted Element Thru-Hull |
| Retractable housing | No |
| Weight | 2.7 kg (6 lbs) |
| Hole Size | 95 mm (3-3/4") |
| Usable Shaft Length | 71 mm (2.80") |
Electrical
| Power Rating | 1 kW |
|---|
Certifications & Protection
| Hull Material | Fiberglass or wood |
|---|
