Airmar | SKU: AIR/B175-C-20-M-MM

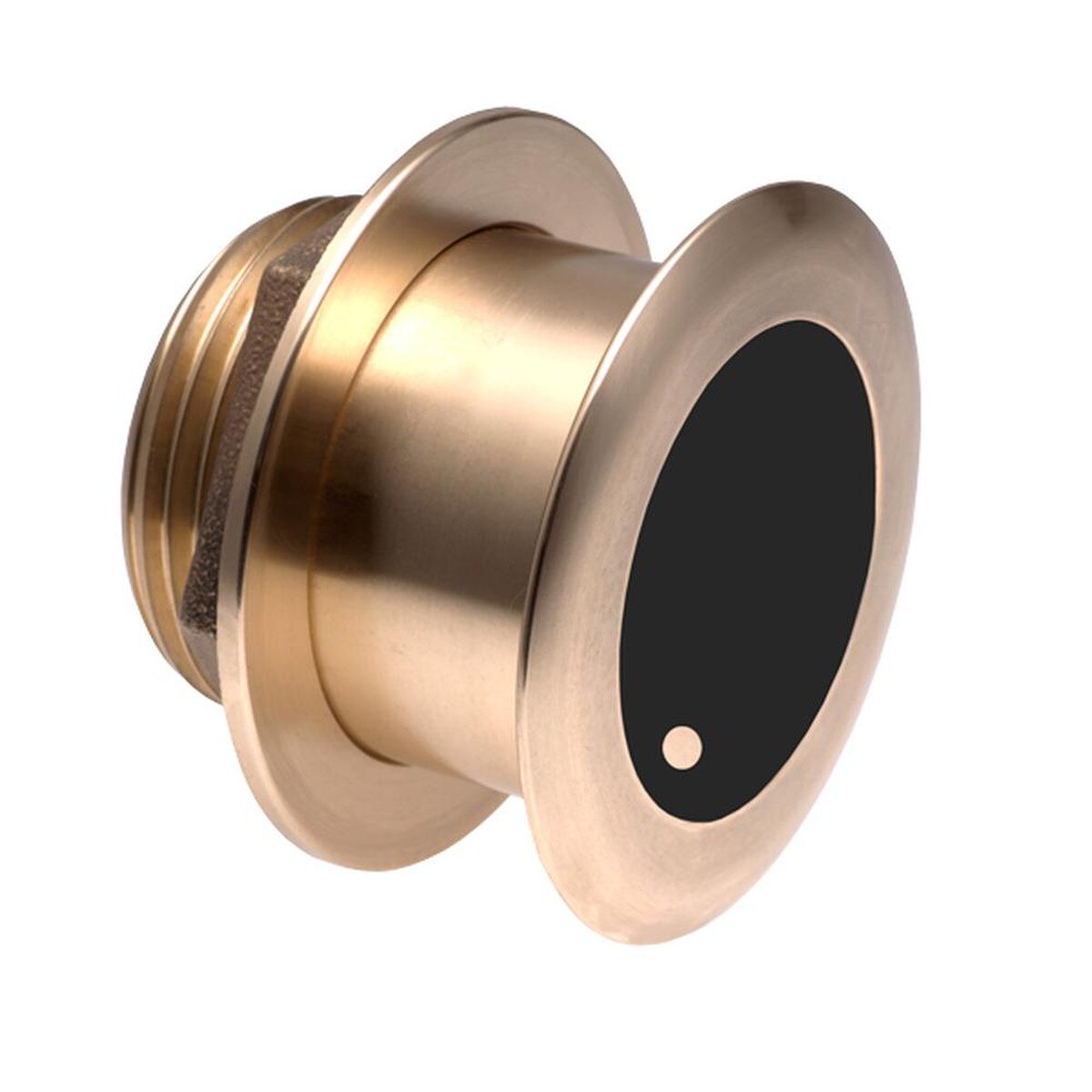

B175C-M-MM (20º)

Name: B175C-M-MM (20º)
Brand: Airmar
SKU: AIR/B175-C-20-M-MM
Price: 1379.00 USD
Availability: InStock

1kW Medium CHIRP Tilted Element Thru-Hull Transducer

$1,379⁰⁰

Options

B175C-M-MM (0º)

1kW Medium CHIRP Tilted Element Thru-Hull Transducer

B175C-M-MM (12º)

1kW Medium CHIRP Tilted Element Thru-Hull Transducer

B175C-M-MM (20º)

1kW Medium CHIRP Tilted Element Thru-Hull Transducer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Description

The B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.

Airmar’s Tilted Element^™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

* REQUIRES AIRMAR CHIRP MIX & MATCH CABLE *

Specifications

Product Series

B175 / SS175
MPN

B175-C-20-M-MM
Physical

Flange Size: 5.30" (135 mm)
Weight: 6 lbs (2.7 kg)
Mounting

Type: Tilted Element Thru-Hull
Hole Size: 3.75" (95mm)
Usable Shaft Length: 2.18" (55 mm)
Sonar

Power: 1000 W (1kW)
Frequency: Medium CHIRP (85 - 135 kHz)
Beamwidth: 11-16°
Max Depth (Fresh Water): 1500'
Temperature: Yes
Connectivity

Airmar Mix & Match 12pin CHIRP Connector
* Requires M&M Cable For Your Sounder *
Cable Length (Ft)

39
Material

Bronze
