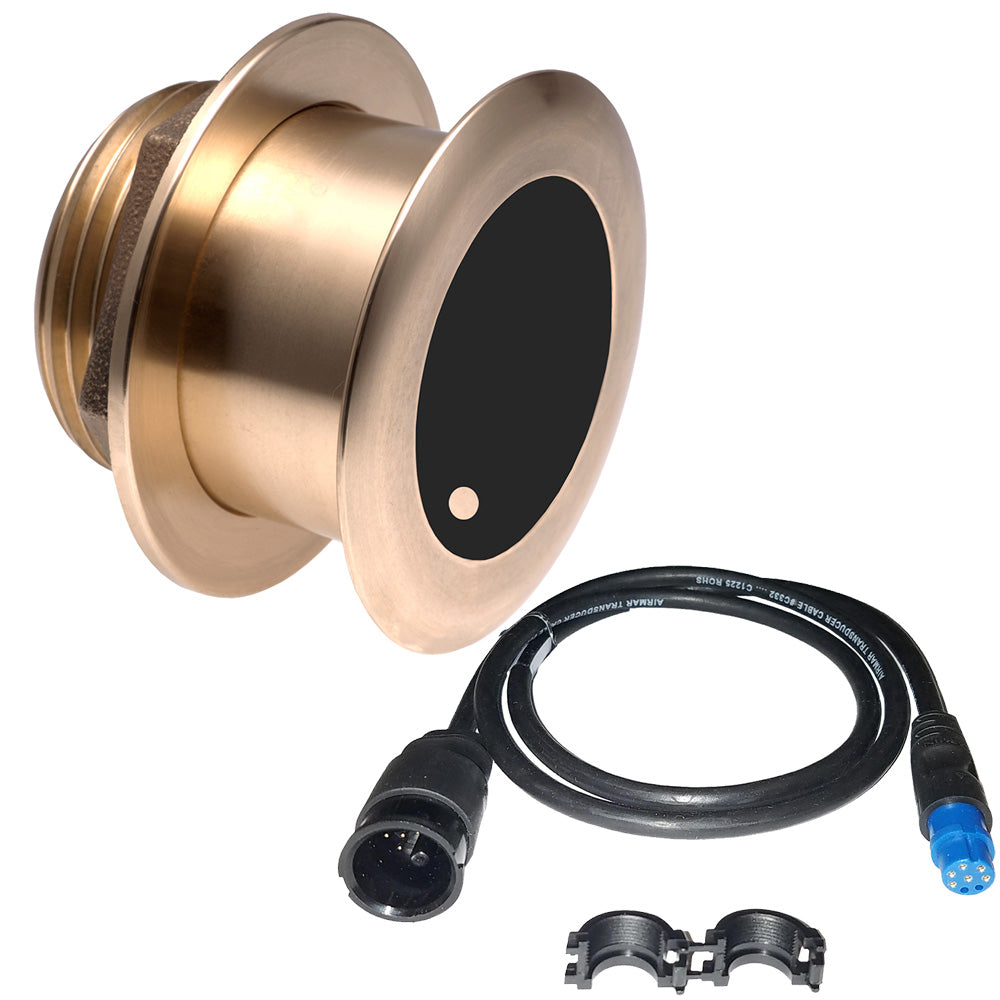

Airmar B175HW Bronze 20 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector

B175HW Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin Connector

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features:

• Garmin 8-Pin Mix & Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1 kW of power
• High frequency: 150 to 250 kHz
• Constant 25° beamwidth
• Maximum depth of 152 m (500')
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in fiberglass or wood hull
• Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts
• Patented Xducer ID® technology

In The Box:

Package Dimensions:

12" x 11" x 8"
