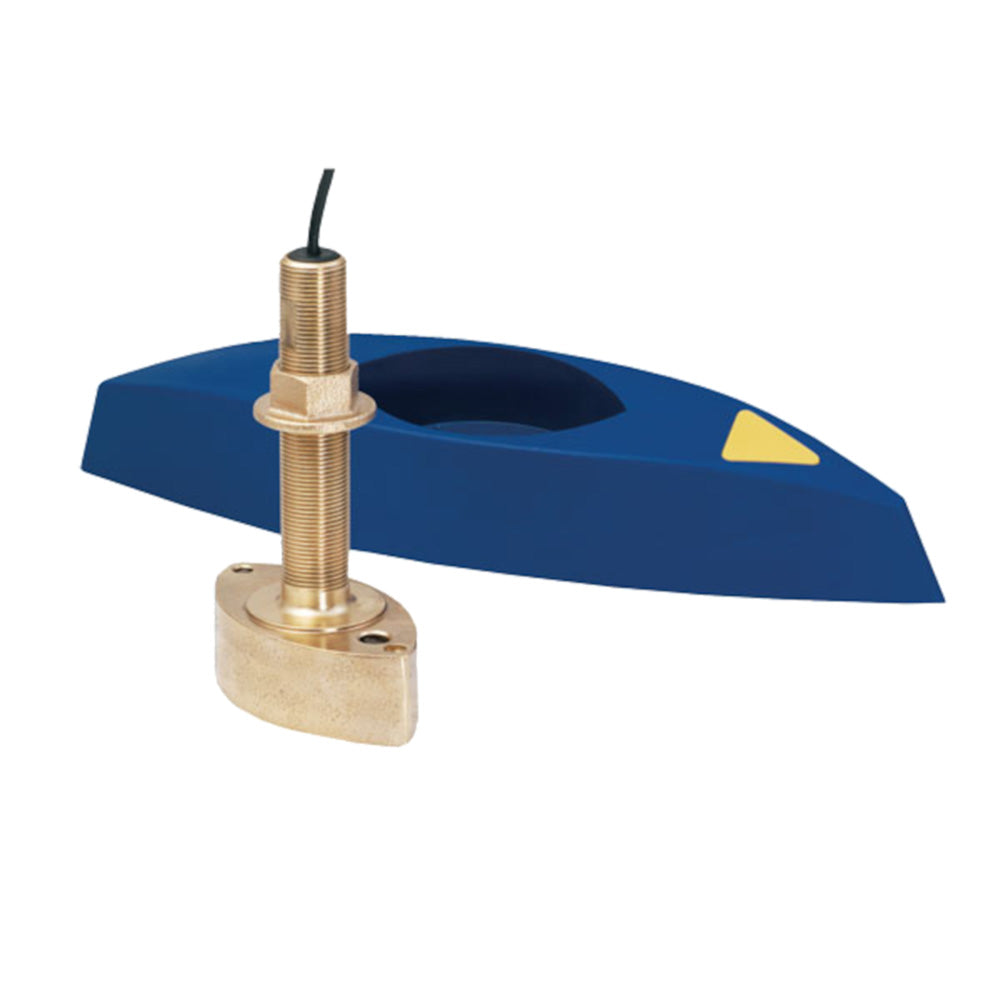

B45 Bronze Thru-Hull with Depth & Temperature - 8-Pin for Garmin
The B45 is Airmar’s smallest, bronze, thru-hull stem, offering quality design at an economical price. The classic housing is streamlined to deflect aerated water from the transducer’s face, providing solid echo returns.
Features:
- Bronze housing
- Depth and Temperature
- Recommended for planning-hull powerboats and cruising sailboats up to 9 m (30’)
- Good sensitivity in a compact housing
- High-performance fairing included
- Fast-response water-temperature sensor provides ±0.2°C (±0.1°F) accuracy
Specifications
Specifications
Identification
| MPN | B45-DT-8G |
|---|
General
| Fits | All Garmin 50/200 kHz units with 8-pin |
|---|---|
| Standard fairing block | 33-351-01 |
| Frequency | 50/200 kHz |
Physical
| Usable Shaft Length | 92 mm (3.62 in.) |
|---|---|
| Beamwidth | 50 kHz—45°, 200 kHz—12° |
| Maximum Depth Range (50 kHz) | 235 m to 353 m (800 ft. to 1,200 ft.) |
| Maximum Depth Range (200 kHz) | 118 m to 206 m (400 ft. to 700 ft.) |
Electrical
| RMS Power | 600 W |
|---|
