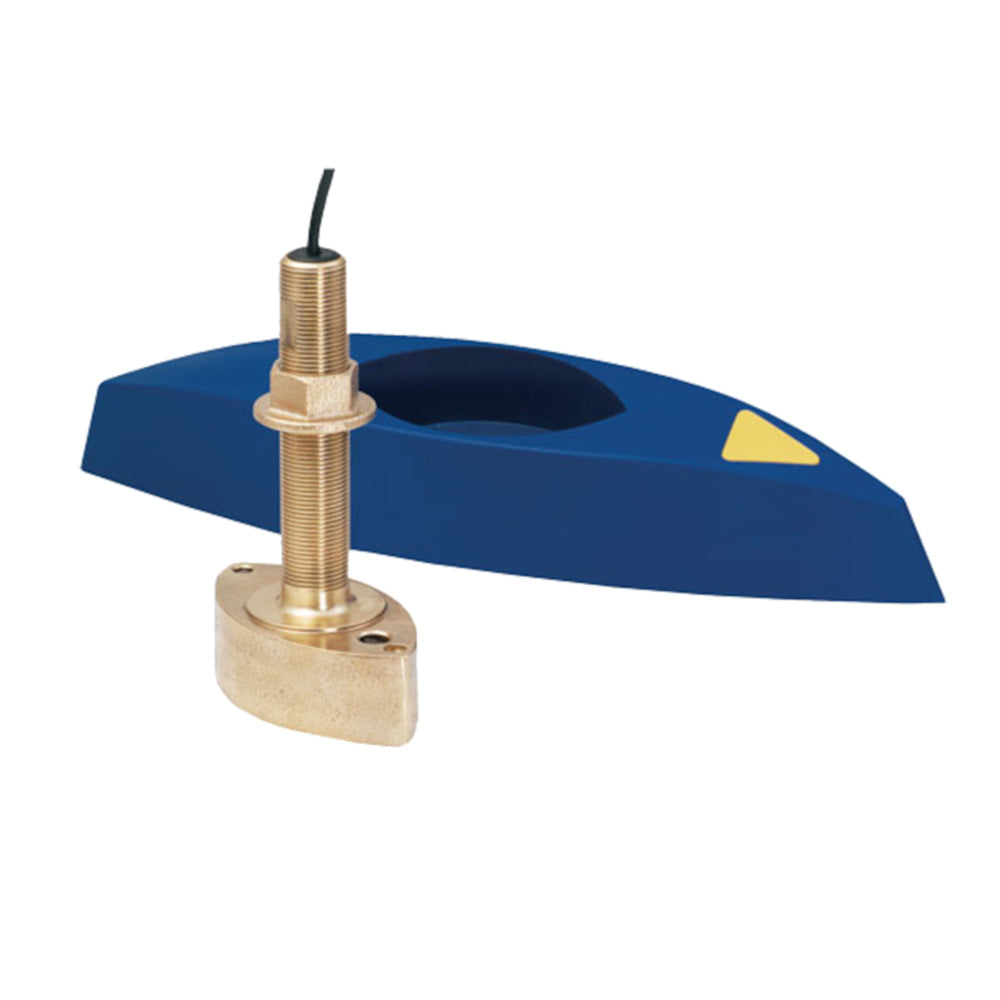

B45 Bronze Thru-Hull with Fairing Block - 50/200 kHz - 600W - 9-Pin Connector (xSonic)
The B45 is Airmar’s smallest and most economical, dual-frequency, bronze, stem transducer. It features a single, 50/200 kHz ceramic element. The included fairing streamlines the transducer and increases the performance—even at higher speeds.
Features
- The depth and fast-response water-temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Excellent performance and sensitivity in a small housing
- Bronze housing with High-performance Fairing for optimal performance at speed
Specifications
Specifications
Identification
| MPN | B45-DT-9N |
|---|
General
| Acoustic Window | Urethane |
|---|---|
| Common Use | Cruising/Racing Sailboats, Leisure/Yachting, Fishing |
| Connector | Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin |
| Conventional Beam | 45°/12° |
| Country of Origin | USA |
| Cross Reference | 000-13946-001 |
| Deadrise Range | Up to 28° with fairing |
| Display Connector | 9N |
| Frequency Band | 50/200 kHz |
| Max Deadrise | Up to 26° with fairing |
| Max Deadrise Angle | 26° |
| Max Vessel LOA | Up to 9 m (30') |
| Mix and Match Series | 5-Pin 600 Watt |
| Sensor Connector | MM |
| Single or Dual Frequency | Conventional Dual Frequency |
| Tilted Element | No |
| Transducer Functions | Depth, Temperature |
Physical
| Cable-Length | 10 m (33') |
|---|---|
| Hole Size | 22 mm (7/8") |
| Housing Material | Bronze |
| Max Depth | Low frequency- 366 m (1200'), High frequency- 206 m (700') |
| Mounting Style | Thru-Hull with Fairing |
| Usable Shaft Length | 92 mm (3.62") |
| Weight | 2.5 kg (5.5 lb.) |
Certifications & Protection
| Hull Material | Fiberglass or wood |
|---|
Electrical
| Power Rating | 600 W |
|---|
