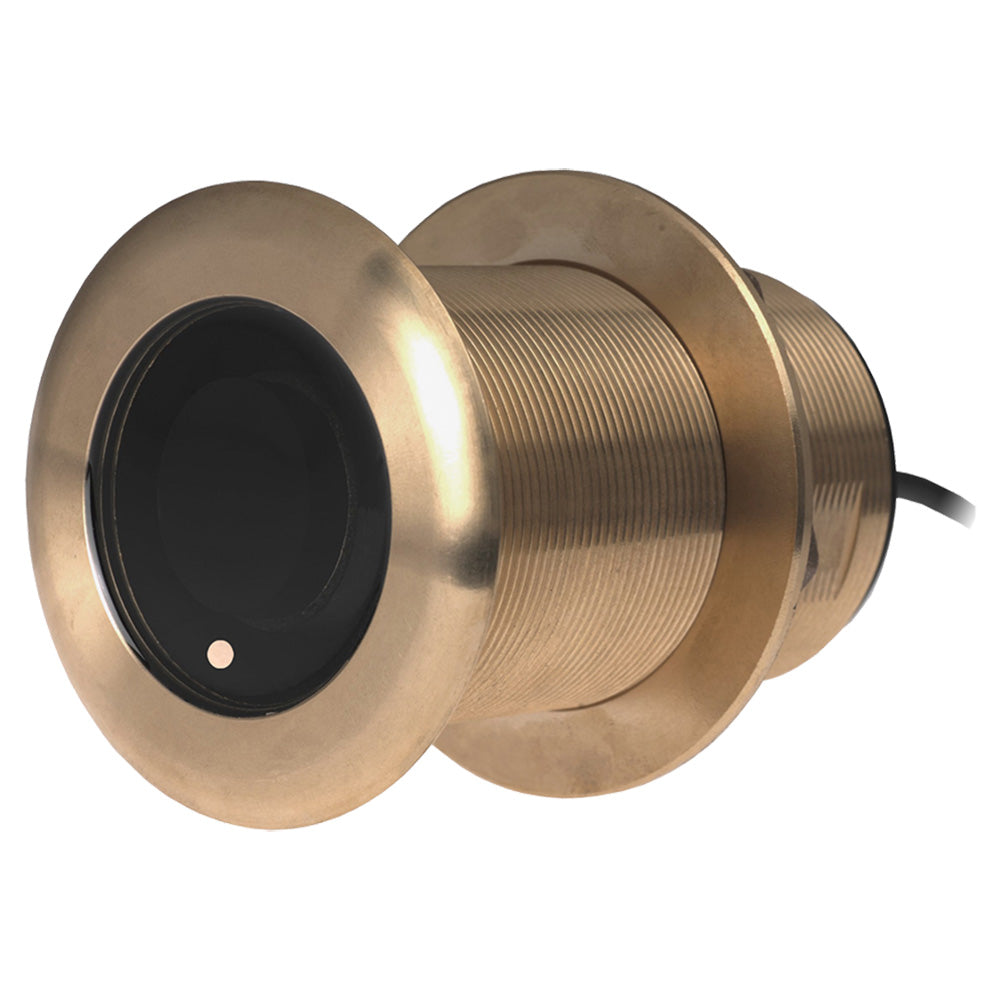

B60 20° Bronze Thru-Hull Mix & Match Cable Needed
The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.
Features:
- Depth and fast-response water temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile bronze housing extends only 5 mm (3/16") outside the hull
- No effect on your boat’s running performance
- Bronze housing for fiberglass or wood hull
- Also available in a stainless steel housing (SS60) for use with all hull materials
Specifications
Specifications
Identification
| MPN | B60-20-MM |
|---|---|
| Barcode | 801769000399 |
Electrical
| Power Rating | 600 W |
|---|
General
| Max Deadrise Angle | 24° |
|---|---|
| Functions | Depth, Temperature |
| Max Vessel LOA | Up to 8 m (26') |
| Acoustic Window | Urethane |
| Common Use | Leisure/Yachting, Fishing |
| Conventional Beam | 45°/12° |
| Max Deadrise | Up to 24° |
| Single or Dual Frequency | Conventional Dual Frequency |
| Tilted Element | Yes |
Physical
| Housing | Bronze |
|---|---|
| Hole Size | 60 mm (2-3/8") |
| Usable Shaft Length | 68.5 mm (2.70") |
| Max Depth | Low frequency- 366 m (1200'), High frequency- 206 m (700') |
| Mounting Style | Tilted Element Thru-Hull |
| Retractable housing | No |
| Weight | 1.4 kg (3 lbs) |
Certifications & Protection
| Hull Material | Fiberglass or wood |
|---|
