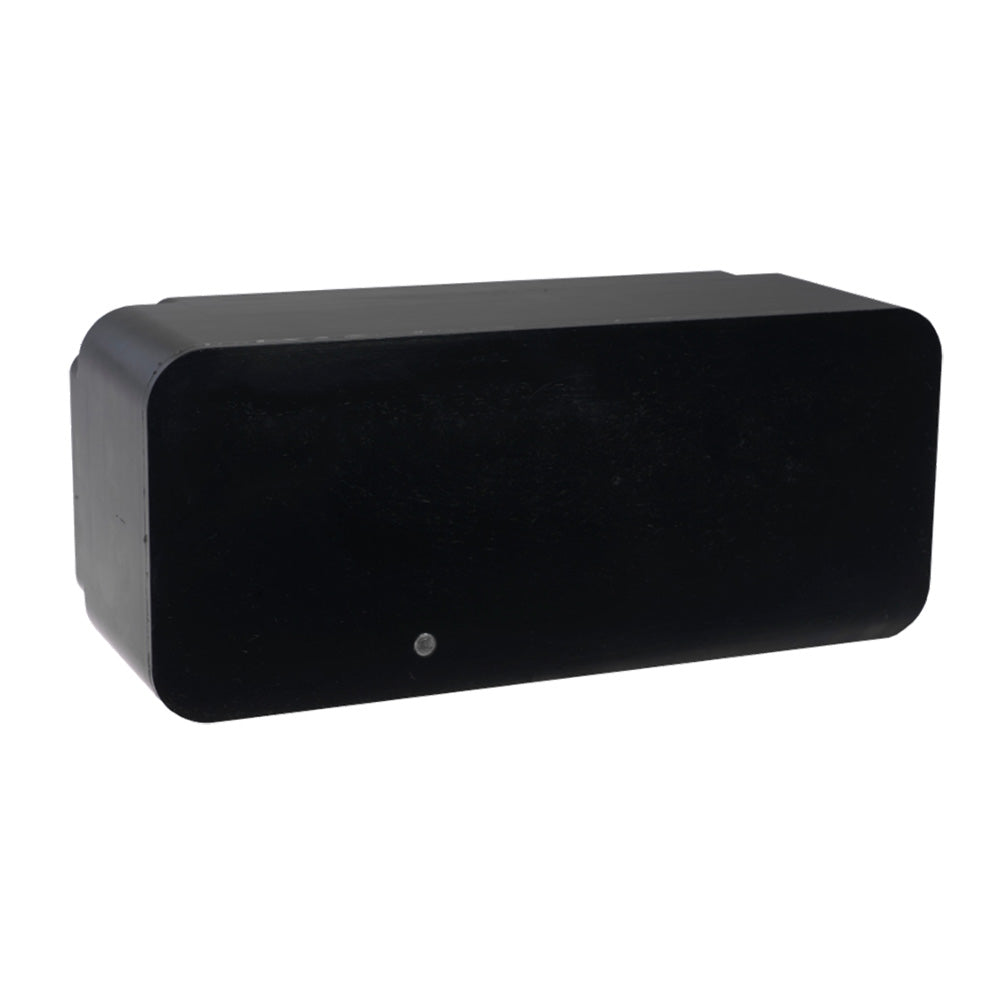

PM111LH Pocket Mount - Low-High Chirp 2kW - No Connector
A popular choice for boat builders, pocket mount transducers is installed within a small custom pocket in your vessel’s hull or keel, flush to the surface. Though retrofit installation is possible, these transducers are most commonly used in vessels with a suitable pre-cut pocket.
Pocket-mounted transducers provide reliable and accurate sonar performance, with some impact on boat speed and fuel efficiency. As a common alternative, thru-hull transducers with a fairing block deliver comparable sonar performance and vessel impact.
Features:
- Depth & fast-response water-temperature sensor
- Fiberglass and metal stepped, planing, or displacement hull types
Advantages:
- All the benefits of a thru-hull without the need for a high-performance fairing
- Can accommodate any deadrise angle
- Can be used with all propulsion types
Specifications
Specifications
Identification
| MPN | PM111C-LH |
|---|
Low (38 kHz to 75 kHz):
| Note 1 | 19° to 10° port/star |
|---|---|
| Note 2 | 10° to 5° fore-aft beam |
| Note 3 | Maximum depth 6000 ft. |
High (130 kHz to 210 kHz):
| Note 1 | 8° to 4° beamwidth |
|---|---|
| Note 2 | Max. depth 1500 ft. |
Bottom Coverage Relative to Frequency and Depth
| Depth (50 ft.) | 6 ft. |
|---|---|
| Depth (100 ft.) | 14 ft. |
| Depth (300 ft.) | 42 ft. |
| Depth (600 ft.) | 84 ft. |
| Depth (1000 ft.) | 140 ft. |
| Depth (1500 ft.) | 210 ft. |
| Depth (2000 ft.) | Too deep |
