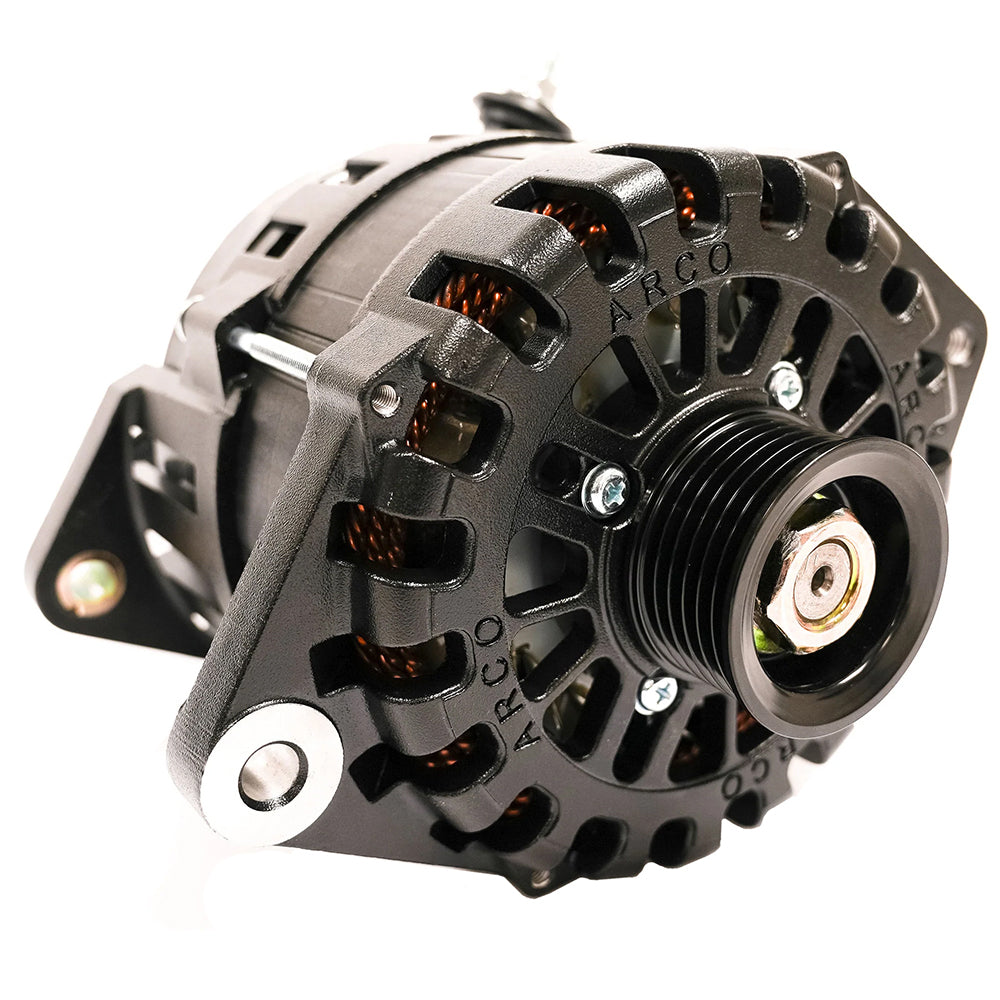

ARCO Marine Zeus A275L 3.15 Alternator w/Isolated Ground (Common Ra...
Sale price
$1,09670
Regular price
$1,24960
Unit price
SKU:
ARC/4021
Sale price
$1,09670
Regular price
$1,24960
Unit price
Description
Description
Zeus A275L 3.15 Alternator with Isolated Ground (Common Rail) & Terminal Block
The highest power output alternator in its size/class.
Features:
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance.
- Heat shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output.
- Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Models are available with an internal/external voltage regulator.
- Proudly made in the U.S.A.
Specifications
Specifications
Identification
| MPN | 4021 |
|---|---|
| Barcode | 695845746727 |
Electrical
| Voltage | 12v |
|---|---|
| Output Voltage | 14.1v (Default) |
General
| Field Type | P |
|---|---|
| Rotor Poles | 16 |
| Cut-In RPM | 1,061 Alternator RPM |
| Maximum Alt RPM | 19,000 |
| Battery Post | M8 Thread Post, Side Mount |
| Diodes | 6 positive, 6 negative, 50A Rated, Avalanche |
| Max Output (Cold, 9,000 RPM) | 311 Amps |
| Sustained Cruising Output (Hot, 6,000 RPM) | 227 Amps |
| Sustained Idle Output (Hot, 3,000 RPM) | 198 Amps |
| Max Continuous Operating Temperature | 110°C / 230°F |
Physical
| Stator Size | 138mm |
|---|---|
| Frame Size | Large |
| Weight | 14.9 lbs/6.7 kg |
| Finish | (Black) Cerakote or E-coating |
| Pulley Mount | 17mm diameter shaft, 25mm long, threaded M17 x 1.5 |
Certifications & Protection
| Regulation | Internal/External (Internally regulated with adaptor for optional external regulation.) |
|---|---|
| Standard Pulley | 49K6 (6-groove, 49mm) |
| Pulley Hardware | M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) |
