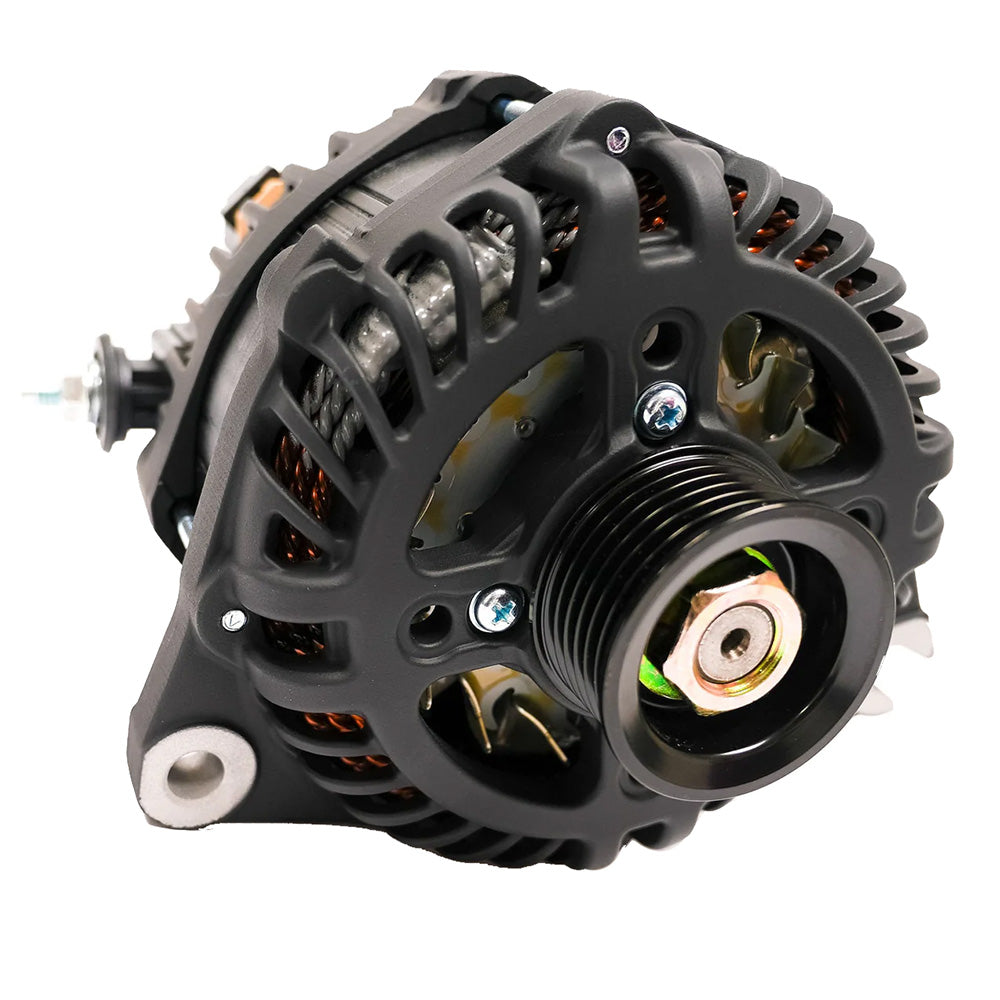

ARCO Marine Zeus A275L Transit Alternator w/Terminal Block
Sale price
$98670
Regular price
$1,12420
Total:
Unit price
SKU:
ARC/4032
Sale price
$98670
Regular price
$1,12420
Total:
Unit price
Description
Description
Zeus A275L Transit Alternator with Terminal Block
High Output / High Amperage Alternator: The Highest Power Output in Its Class.
Features:
- Replace your noisy generator!
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance:
- Heat-shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds
- Reduces the need for a generator by creating additional power with your engine
- Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output
- For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator
- Mercedes requires the use of a clutch pulley on secondary alternators used on all Sprinter vans. For Mercedes Sprinter, please use our N62 with Clutch Pulley here
- SAE J1171 Certified
- Models are available with internal/external voltage regulators
- Proudly made in the U.S.A.
Specifications
Specifications
Identification
| MPN | 4032 |
|---|---|
| Barcode | 612461468703 |
General
| MPN | 4032 |
|---|---|
| Barcode | 612461468703 |
Electrical
| Voltage | 12V |
|---|---|
| Max Output | 311 Amps at 9,000 RPM (cold) |
| Sustained Idle Output | 198 Amps at 3,000 RPM (hot) |
| Power Rating | 4,300W |
| Cut-In RPM | 1,061 alternator RPM |
| Max RPM | 19,000 |
| Regulator Type | External Only |

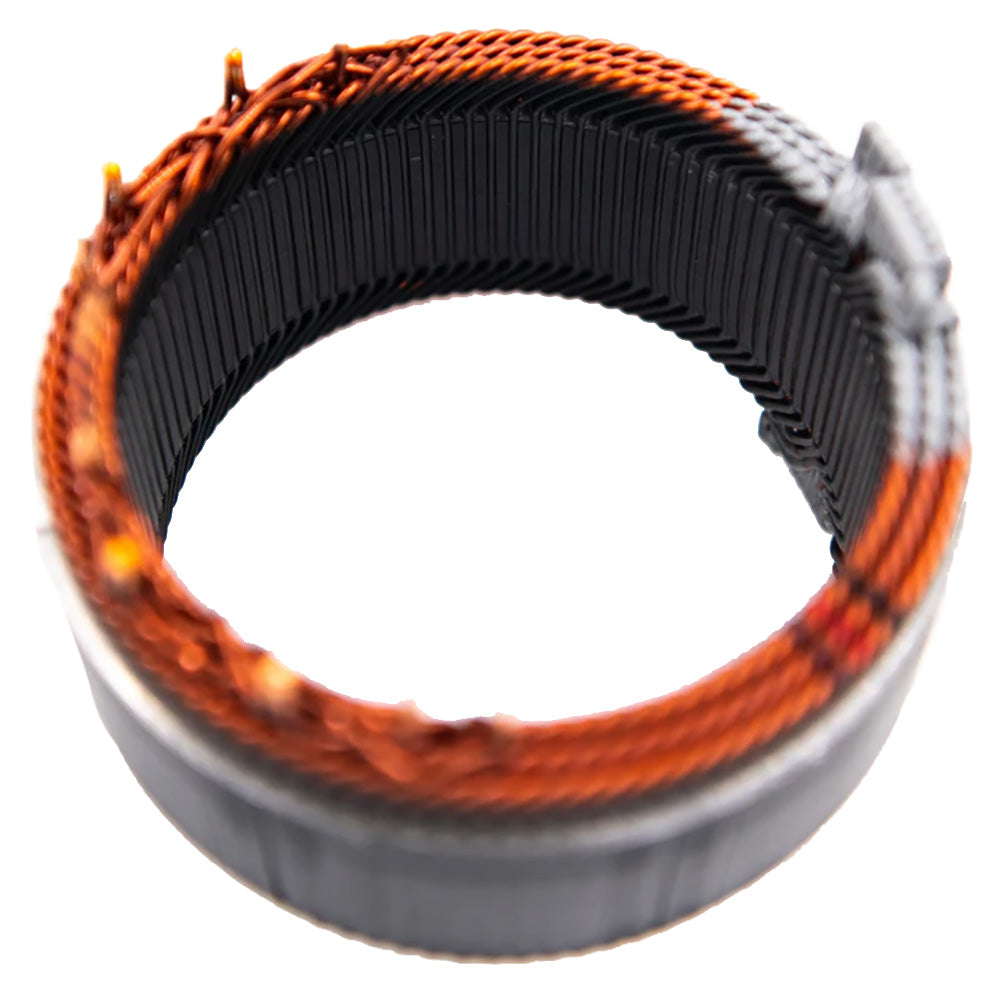

| Stator Size | 138mm (Large Frame) |
| Diodes | 6 positive / 6 negative, 50A rated, avalanche |
Physical
| Mount Type | Ford Transit housing |
|---|---|
| Pulley | 62mm K6 |
| Terminal Type | Terminal Block |
| Ground Type | Case Ground |
| Shaft | 17mm diameter, 25mm long, threaded M17 x 1.5 |
| Battery Post | M8 thread, side mount |
| Weight | 14.9 lbs / 6.7 kg |
| Max Operating Temp | 110°C / 230°F |
